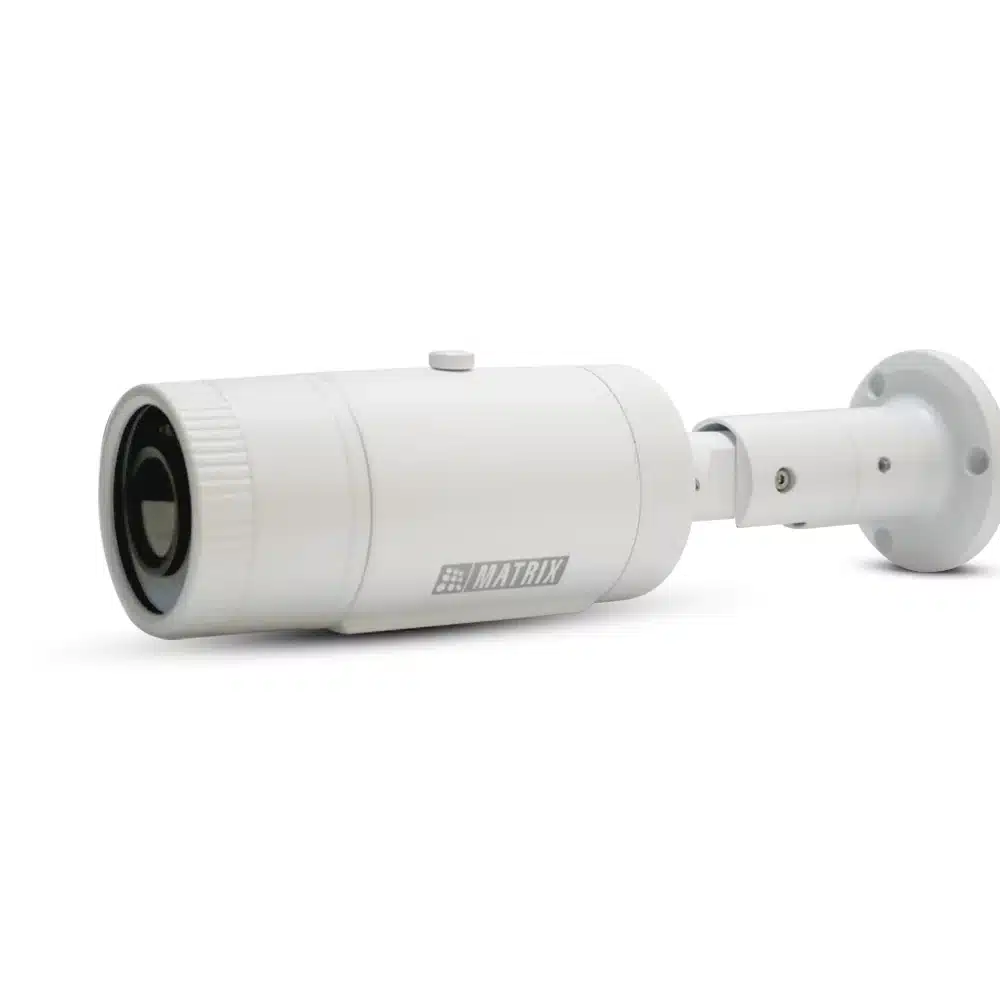

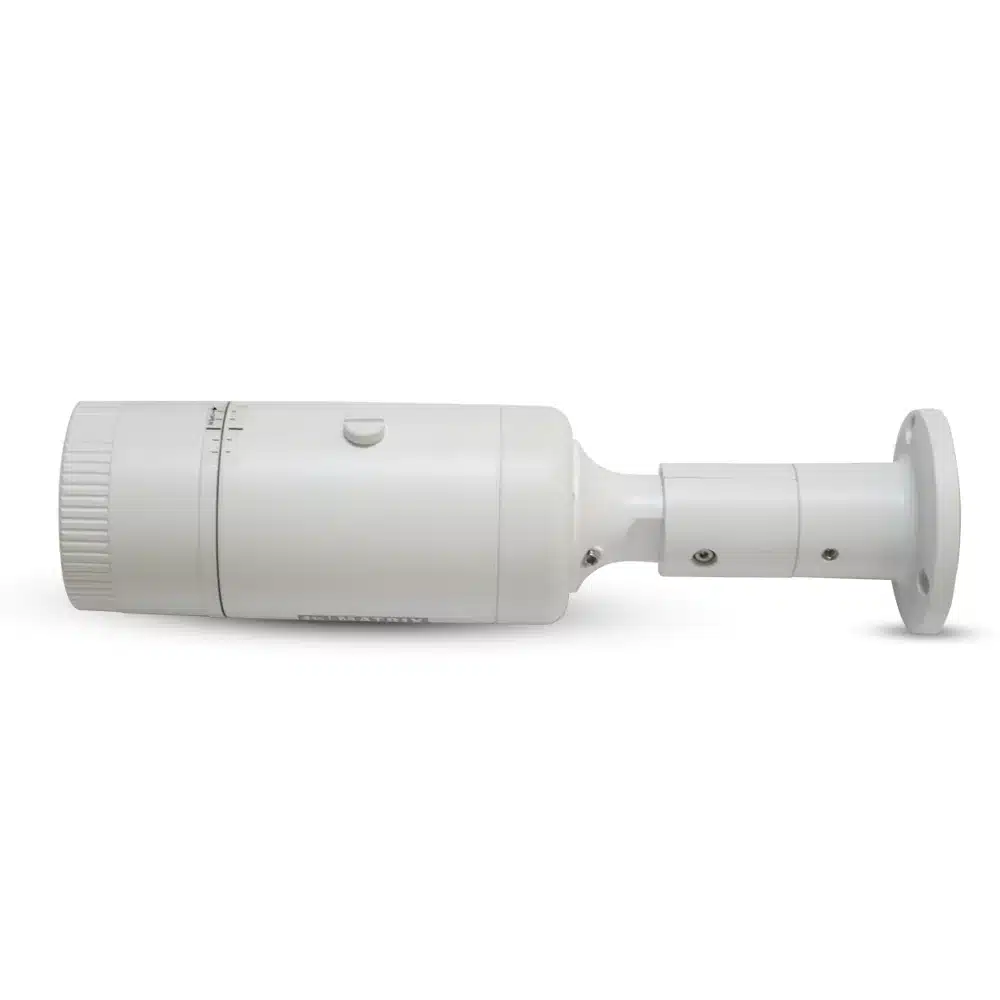

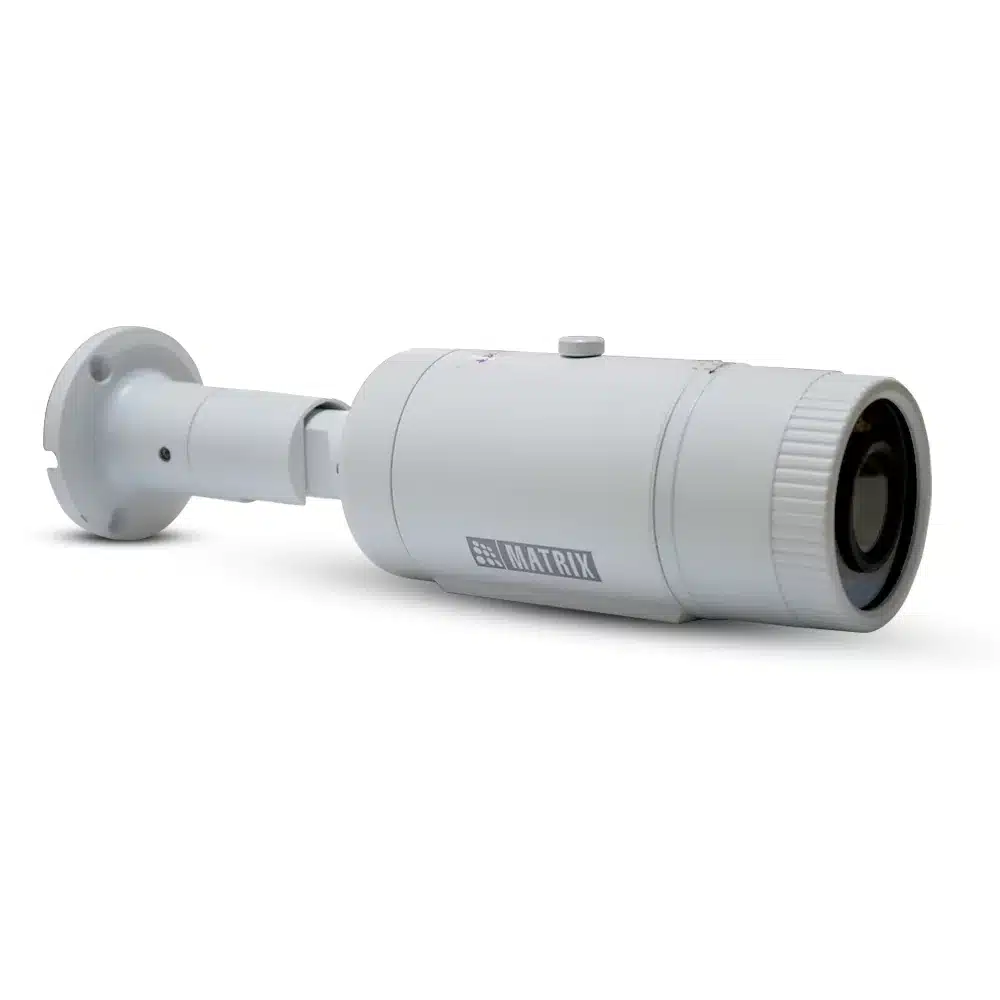

Matrix 2MP Project Series Bullet Camera with 6mm Lens and Audio
2MP (1920 × 1080) | 6mm Lens | 50m IR Night Vision | True WDR (120dB) | IP67 | Audio Support | IK10 Vandal-Proof
The Matrix SATATYA CIBR20MVL12CWP-3 is a Project Series 2MP bullet IP camera equipped with a precision 6mm Lens and dedicated audio support for synchronized audio-visual monitoring. Backed by 50m infrared night vision, True WDR (120dB), and an IP67 weatherproof chassis, it delivers superior clarity across complex lighting environments.
Product Overview
The Matrix 2MP Project Series Bullet Camera with 6mm Lens and Audio combines high-definition optical clarity with synchronized audio capabilities to provide complete situational awareness for enterprise security operators. At its core is a high-sensitivity 1/2.8" SONY STARVIS CMOS Back-Illuminated Image Sensor capturing fluid 1920 × 1080 video even under minimal 0.01 Lux ambient illumination. The factory-aligned 6mm Lens yields 53.9° telephoto horizontal field of view, while True WDR (120dB) guarantees balanced exposures across glare-prone entrances, storefront windows, and shaded delivery bays.\n\nIntegrated audio support enables real-time acoustic monitoring and auditory exception detection, enriching incident verification beyond pure video feeds. Night monitoring is maintained via smart infrared LEDs offering up to 50m illumination without overexposing nearby subjects. Protected by an IP67 weather-sealed housing and IK10 vandal resistance, the camera operates reliably between -30°C and +60°C. Efficiency is maximized via H.265 smart encoding and an edge MicroSD card slot supporting up to 512GB for fail-safe local storage.
Why Buy This Product
Targeted Telephoto Identification
Concentrates sensor pixels on narrow corridors, entry barriers, and access gates for crisp facial recognition at extended distances.
Integrated Audio Situational Awareness
Records synchronized sound alongside video footage to help security teams identify auditory threats, arguments, or distress calls.
True WDR 120dB Contrast Balance
Maintains crisp visibility across high-contrast scenes, eliminating shadowed silhouettes in doorways and storefront glass facades.
Best for These Applications
Vehicle Access Gates
Targeting security checkpoints and automated gate barriers for reliable license plate reading.
Perimeter Fence Boundaries
Looking down long, straight perimeter fences to detect trespassers before perimeter breach.
Key Advantages
- Sony STARVIS Low-Light Sensitivity:Back-illuminated pixel architecture captures richer colors and reduced noise in low-light environments down to 0.01 Lux.
- True WDR (120dB) Dual-Exposure:Combines short and long exposure frames in real-time to preserve highlight details and shadow visibility simultaneously.
- Smart H.265 Video Compression:Optimizes video bitrates by up to 50% compared to legacy codecs, drastically reducing NVR storage costs and network bandwidth load.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.84 |
| Shipping Weight | 0.94 |
| Image Sensor | 1/2.8" SONY STARVIS CMOS Back-Illuminated Image Sensor |
| Max Resolution | 1920 × 1080 |
| Min Illumination | Color: 0.01 Lux @ F1.2 (AGC ON), Monochrome: 0 Lux with IR |
| Lens Type | Fixed Focal |
| Focal Length And Fov | 6.0mm: Horizontal FOV 53.9°, Vertical FOV 30.0°, Diagonal FOV 62.0° |
| Aperture | F1.6 / F2.0 |
| Supplement Light Range | Up to 50m |
| Supplement Light Type | IR |
| Ir Wavelength | 850nm |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 128 kbps - 8 Mbps |
| Audio Compression | G.726, G.711µ |
| Built In Microphone | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv4, IPv6, SSL/TLS, ONVIF Profile S/G/T |
| Wdr | True WDR (120dB) |
| Snr | >70dB |
| Image Enhancement | 3D DNR, BLC, HLC, Region of Interest (ROI), Day/Night Settings |
| Ethernet Interface | 10Base-T/100Base-TX Ethernet (RJ-45) with PoE support |
| On Board Storage | MicroSD Card slot, Up to 512GB |
| Smart Event | Motion Detection, Intrusion Detection, Tripwire Detection, Camera Tampering, Region Entrance, Region Exiting |
| Face Capture | No |
| Power | 12V DC ± 10%, PoE (IEEE 802.3af Class 3), Maximum 9W |
| Material | Metal Enclosure |
| Dimensions | 309 x 93 x 86 mm (Length x Width x Height) |
| Weight | 840gms |
| Operating Conditions | Temperature: -30°C to 60°C, Humidity: Less than 95% RH (non-condensing) |
| Protection Rating | IP67 |
| Vandal Proof Rating | IK10 |
| Stock | 7 |
