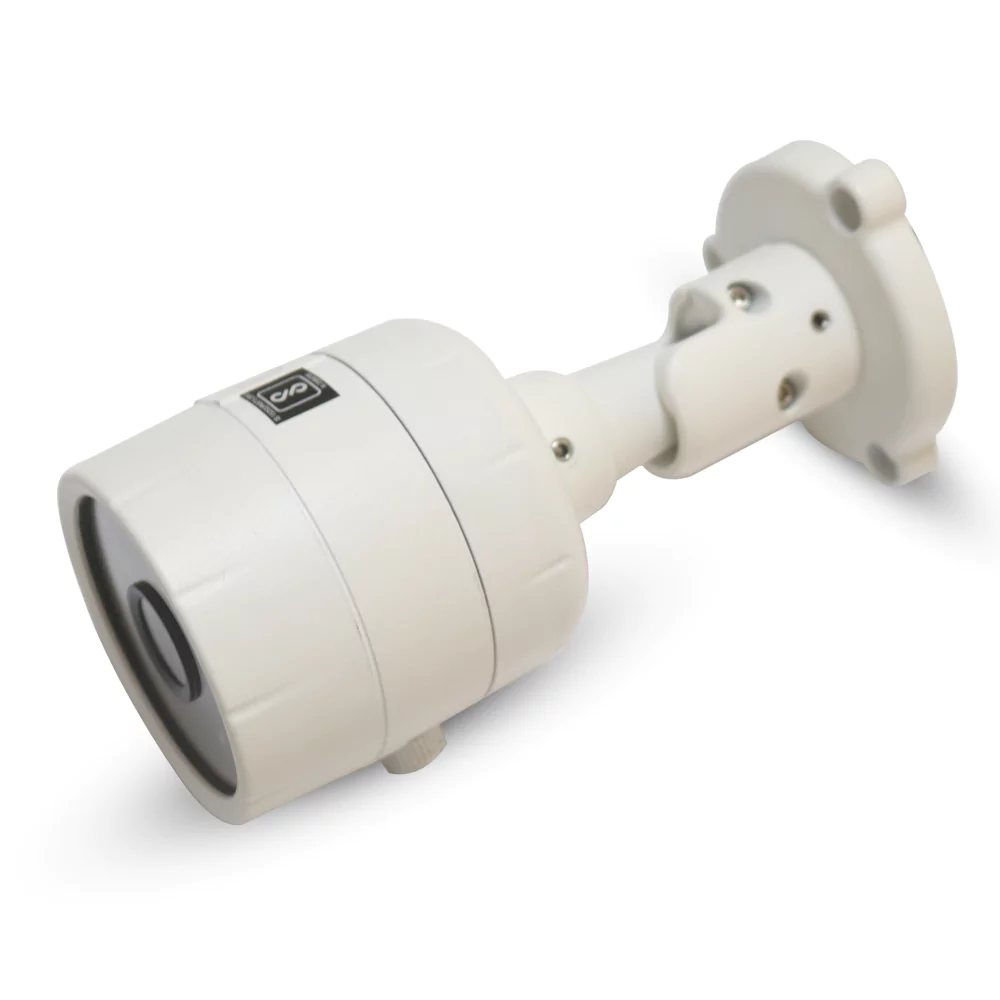

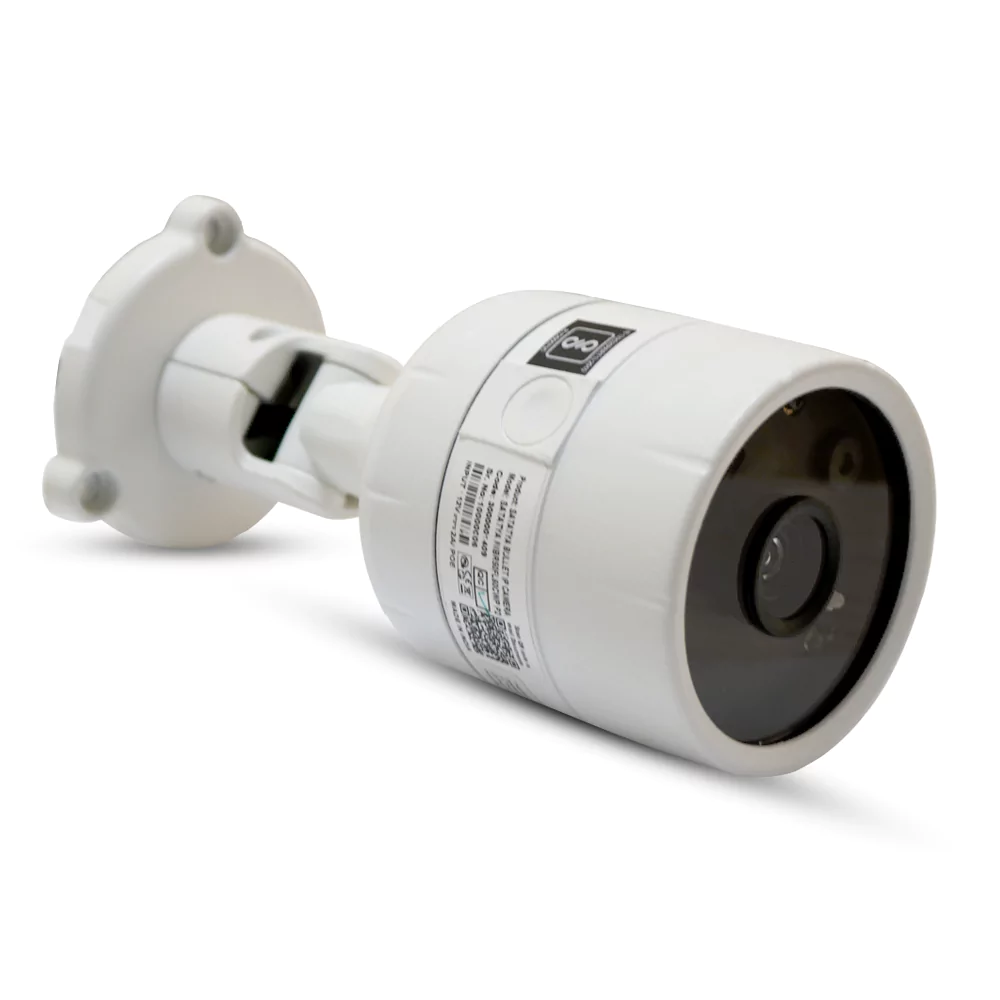

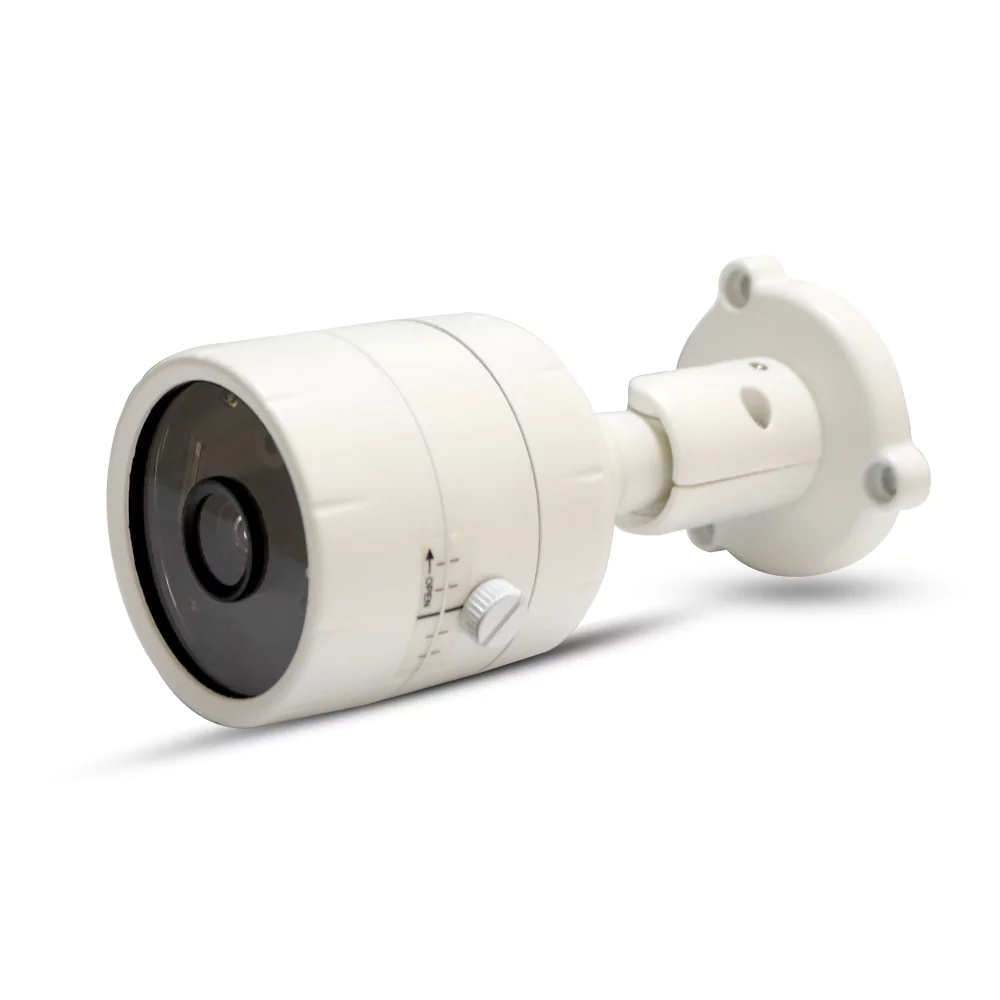

Matrix 5MP Compact Series Mini Bullet Camera with 2.8mm Lens
5MP (2592 × 1944) | 2.8mm Lens | 30m IR Night Vision | True WDR (120dB) | IP67
Designed for dedicated video surveillance in privacy-conscious commercial and institutional facilities, the Matrix SATATYA MIBR50FL28CWP provides 5MP 5MP Ultra HD streaming paired with an optical 2.8mm Lens. It features a high-sensitivity sensor, True WDR (120dB) for challenging backlight, and 30m night vision housed inside a weather-sealed IP67 enclosure.
Product Overview
Engineered specifically for locations requiring dependable video surveillance without audio recording compliance concerns, the Matrix 5MP Compact Series Mini Bullet Camera with 2.8mm Lens provides crisp 2592 × 1944 video streams optimized for commercial and industrial facilities. Powered by a 1/2.7" Progressive Scan CMOS Sensor, it maintains color integrity in challenging low-light conditions down to 0.01 Lux. Its optical 2.8mm Lens offers 106.9° ultra-wide horizontal field of view, making it optimal for compact wall or ceiling mounting for sleek architectural integration.\n\nThe camera leverages True WDR (120dB) technology to capture sharp facial and environmental details across backlit doorways and outdoor perimeters. In pitch-black conditions, high-efficiency IR illumination reaches up to 30m for uninterrupted 24/7 protection. Packaged inside an IP67 rated dust- and water-tight enclosure, it integrates seamlessly into corporate IP surveillance systems via ONVIF Profile S/G/T and PoE power connectivity, while smart H.265 video compression substantially reduces NVR storage demands.
Why Buy This Product
107° Ultra-Wide Coverage
Covers wide lobbies, parking lots, and open yards with a single camera, minimizing blind spots and reducing overall hardware spend.
Privacy Compliance Ready
Pure video recording architecture designed specifically for office environments, clinics, and work areas where audio capture is legally prohibited.
True WDR 120dB Contrast Balance
Maintains crisp visibility across high-contrast scenes, eliminating shadowed silhouettes in doorways and storefront glass facades.
Best for These Applications
Open Distribution Yards
Monitoring broad exterior truck aprons, loading docks, and open storage bays from high vantage points.
Commercial Parking Lots
Sweeping wide vehicle parking bays to record traffic movements and parking bay occupancy.
Key Advantages
- High-Efficiency Progressive CMOS:Delivers sharp image clarity with high signal-to-noise ratio (>70dB) and fluid frame rates for fast-moving targets.
- True WDR (120dB) Dual-Exposure:Combines short and long exposure frames in real-time to preserve highlight details and shadow visibility simultaneously.
- Smart H.265 Video Compression:Optimizes video bitrates by up to 50% compared to legacy codecs, drastically reducing NVR storage costs and network bandwidth load.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.5 |
| Shipping Weight | 0.6 |
| Image Sensor | 1/2.7" Progressive Scan CMOS Sensor |
| Max Resolution | 2592 × 1944 |
| Min Illumination | Color: 0.01 Lux @ F1.2 (AGC ON), Monochrome: 0 Lux with IR |
| Lens Type | Fixed Focal |
| Focal Length And Fov | 2.8mm: Horizontal FOV 106.9°, Vertical FOV 56.9°, Diagonal FOV 127.9° |
| Aperture | F1.6 / F2.0 |
| Supplement Light Range | Up to 30m |
| Supplement Light Type | IR |
| Ir Wavelength | 850nm |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 128 kbps - 8 Mbps |
| Built In Microphone | No |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv4, IPv6, SSL/TLS, ONVIF Profile S/G/T |
| Wdr | True WDR (120dB) |
| Snr | >70dB |
| Image Enhancement | 3D DNR, BLC, HLC, Region of Interest (ROI), Day/Night Settings |
| Ethernet Interface | 10Base-T/100Base-TX Ethernet (RJ-45) with PoE support |
| On Board Storage | MicroSD Card slot, Up to 512GB |
| Smart Event | Motion Detection, Intrusion Detection, Tripwire Detection, Camera Tampering, Region Entrance, Region Exiting |
| Face Capture | No |
| Power | 12V DC ± 10%, PoE (IEEE 802.3af Class 3), Maximum 9W |
| Material | Metal Enclosure |
| Dimensions | 155 x 75 (Length x Width) |
| Weight | 500gms |
| Operating Conditions | Temperature: -30°C to 60°C, Humidity: Less than 95% RH (non-condensing) |
| Protection Rating | IP67 |
| Stock | 10 |
