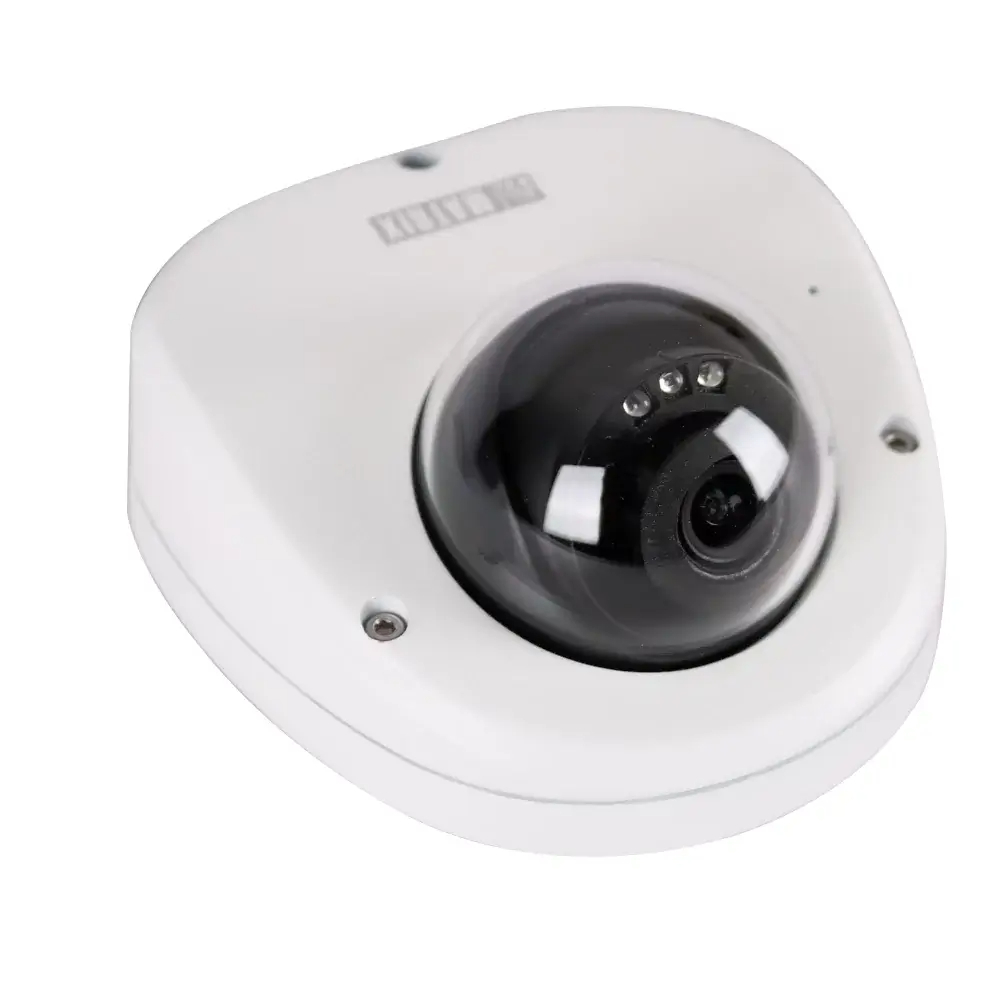

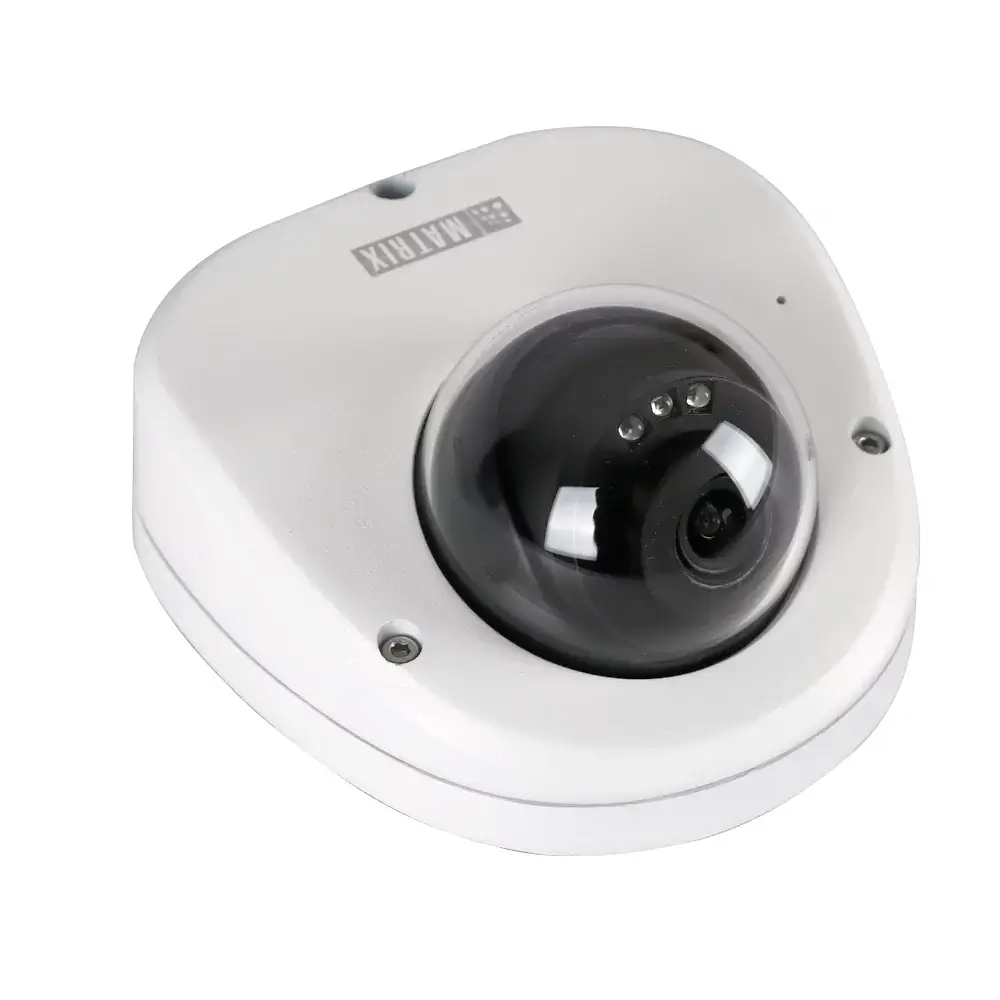

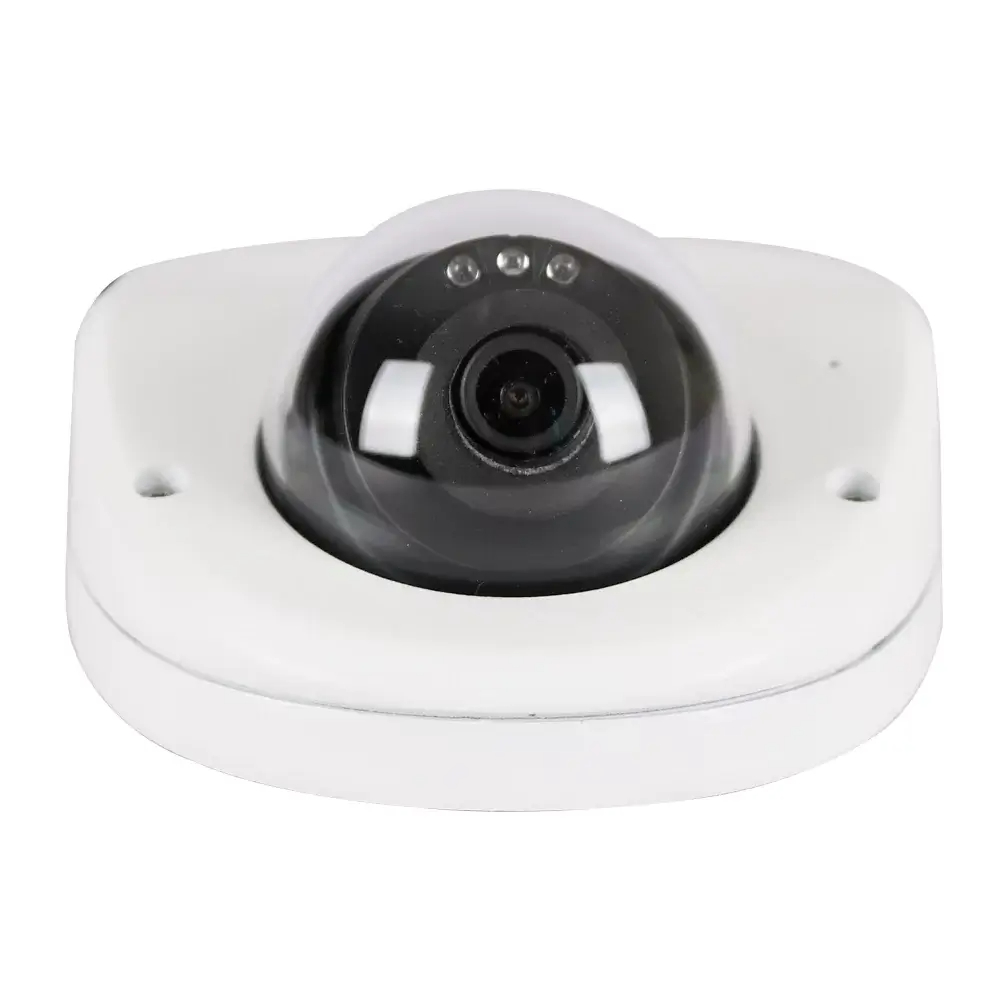

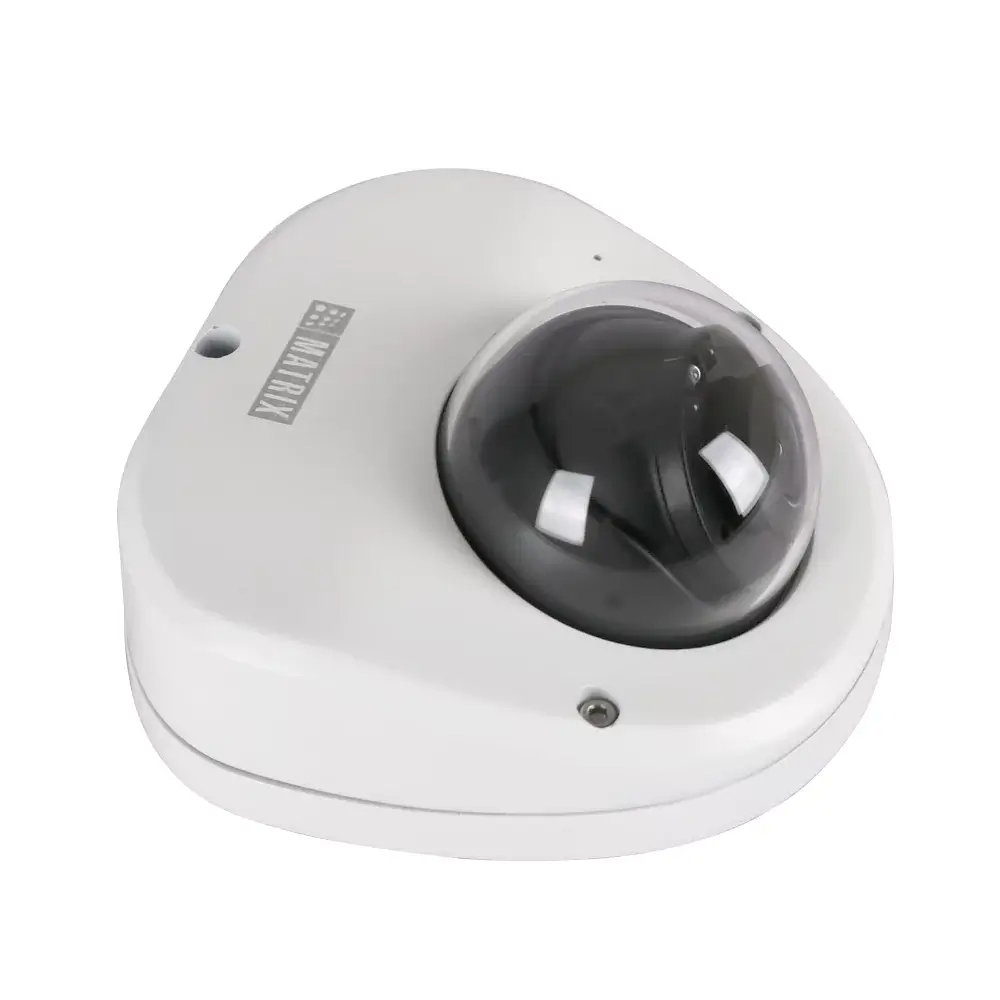

Matrix 5MP Ruggedized Transit Dome Camera with 2.8mm Lens
5MP (2592 × 1944) | 2.8mm Lens | 30m IR Night Vision | True WDR (120dB) | IP67 | Audio Support | IK10 Vandal-Proof
Engineered specifically for demanding mobile transit and heavy industrial environments, the Matrix SATATYA RIDR50FL28CWP is an EN50155-certified 5MP ruggedized dome camera with a vibration-resistant 2.8mm Lens. Its robust IK10 cast metal casing, IP67 environmental sealing, and 30m night vision safeguard transit fleets and passenger zones.
Product Overview
The Matrix 5MP Ruggedized Transit Dome Camera with 2.8mm Lens (SATATYA RIDR50FL28CWP) is purpose-engineered to survive the harsh mechanical vibrations, electrical transients, and temperature swings encountered in rail, bus, and industrial transportation infrastructure. Complying with stringent EN50155 standards, it delivers vivid 2592 × 1944 video through a specialized 2.8mm Lens offering 106.9° ultra-wide horizontal field of view. A low-profile, anti-ligature cast metal housing with IK10 impact resistance prevents tampering, making it ideal for bus cabins, train carriages, and passenger platforms.\n\nEquipped with advanced 120dB True Wide Dynamic Range, the camera effortlessly balances dark passenger aisles against sunlight flooding through transit windows. Integrated infrared illumination guarantees up to 30m night visibility during tunnel transits or night routes. The camera incorporates an onboard MicroSD slot supporting up to 512GB of decentralized edge recording to safeguard critical incident footage even during network disconnects.
Why Buy This Product
EN50155 Transit Certified
Engineered and certified to endure the continuous vibration, mechanical shocks, and electrical noise inherent in railway and fleet operations.
IK10 Vandal-Proof Casing
Heavy-duty cast metal housing protects internal optics against deliberate tampering and impact up to 20 joules.
Up to 512GB Onboard Recording
Guarantees continuous recording directly onto local solid-state storage even if mobile vehicle network connectivity drops.
Best for These Applications
Public Transit & Fleet Buses
Passenger aisle surveillance with anti-vibration shock mounts and tamper-proof dome construction.
Railway Coaches & Trams
Continuous monitoring of carriage vestibules, doors, and driver cabs certified to rail safety standards.
Vibration-Heavy Plant Areas
Securing production lines, conveyors, and mining machinery where standard cameras fail mechanically.
Key Advantages
- High-Efficiency Progressive CMOS:Delivers sharp image clarity with high signal-to-noise ratio (>70dB) and fluid frame rates for fast-moving targets.
- True WDR (120dB) Dual-Exposure:Combines short and long exposure frames in real-time to preserve highlight details and shadow visibility simultaneously.
- Smart H.265 Video Compression:Optimizes video bitrates by up to 50% compared to legacy codecs, drastically reducing NVR storage costs and network bandwidth load.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.7 |
| Shipping Weight | 0.7999999999999999 |
| Image Sensor | 1/2.7" Progressive Scan CMOS Sensor |
| Max Resolution | 2592 × 1944 |
| Min Illumination | Color: 0.01 Lux @ F1.2 (AGC ON), Monochrome: 0 Lux with IR |
| Lens Type | Fixed Focal |
| Focal Length And Fov | 2.8mm: Horizontal FOV 106.9°, Vertical FOV 56.9°, Diagonal FOV 127.9° |
| Aperture | F1.6 / F2.0 |
| Supplement Light Range | Up to 30m |
| Supplement Light Type | IR |
| Ir Wavelength | 850nm |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 128 kbps - 8 Mbps |
| Audio Compression | G.726, G.711µ |
| Built In Microphone | Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv4, IPv6, SSL/TLS, ONVIF Profile S/G/T |
| Wdr | True WDR (120dB) |
| Snr | >70dB |
| Image Enhancement | 3D DNR, BLC, HLC, Region of Interest (ROI), Day/Night Settings |
| Ethernet Interface | 10Base-T/100Base-TX Ethernet (RJ-45) with PoE support |
| On Board Storage | MicroSD Card slot, Up to 512GB |
| Smart Event | Motion Detection, Intrusion Detection, Tripwire Detection, Camera Tampering, Region Entrance, Region Exiting |
| Face Capture | No |
| Power | 12V DC ± 10%, PoE (IEEE 802.3af Class 3), Maximum 9W |
| Material | Metal Enclosure |
| Dimensions | 120.5x118.6x63.3 mm (L*W*H) |
| Weight | 700g |
| Operating Conditions | Temperature: -30°C to 60°C, Humidity: Less than 95% RH (non-condensing) |
| Protection Rating | IP67 |
| Vandal Proof Rating | IK10 |
| Stock | 4 |
