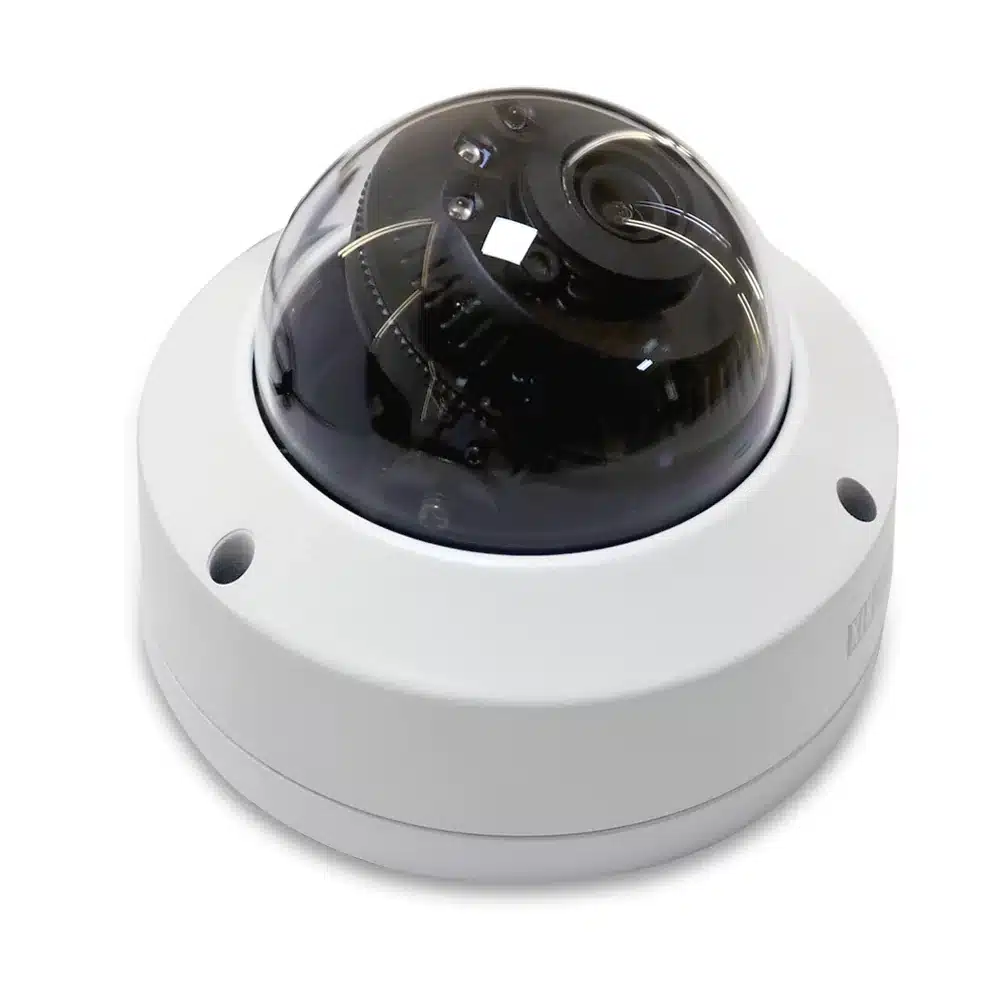

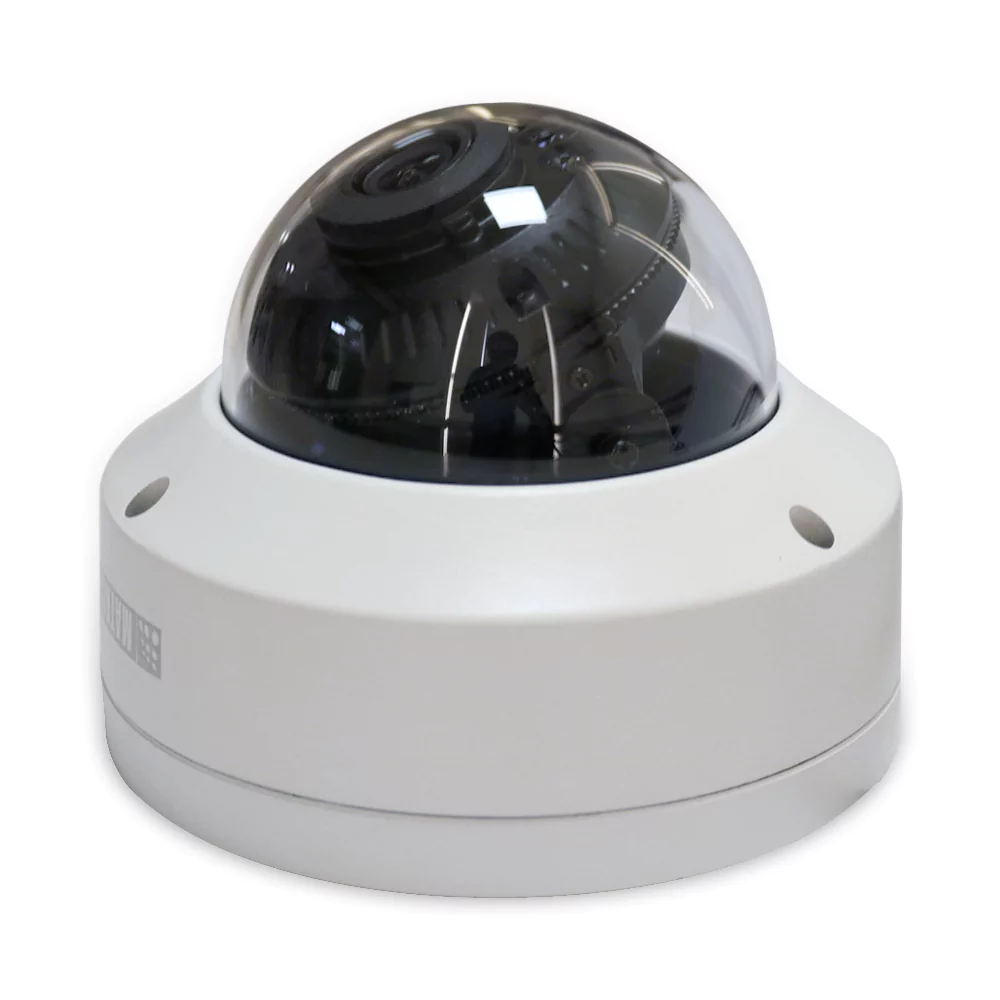

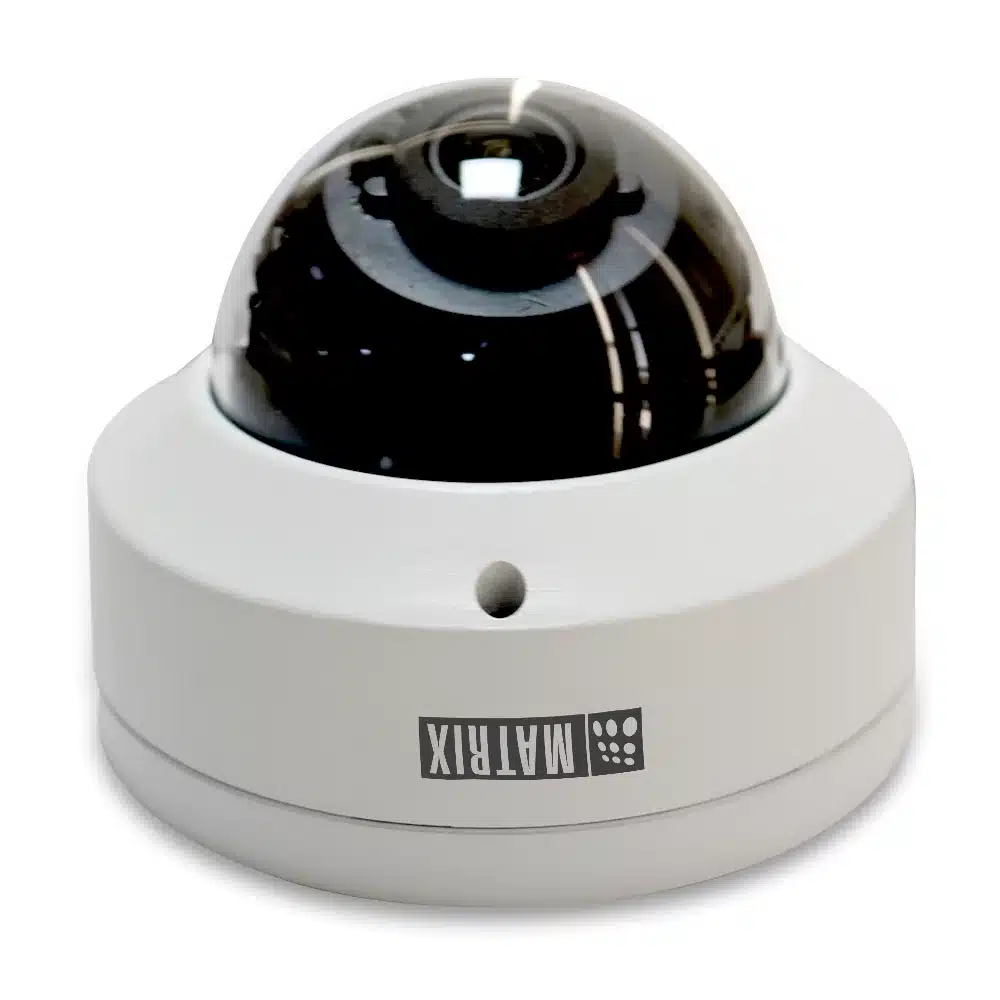

Matrix 8MP Compact Series Mini Dome Camera with 6mm Lens
8MP (3840 × 2160) | 6mm Lens | 30m IR Night Vision | True WDR (120dB) | IP67 | IK10 Vandal-Proof
Designed for dedicated video surveillance in privacy-conscious commercial and institutional facilities, the Matrix SATATYA MIDR80FL60CWP provides 8MP 4K UHD streaming paired with an optical 6mm Lens. It features a high-sensitivity sensor, True WDR (120dB) for challenging backlight, and 30m night vision housed inside a weather-sealed IP67 enclosure.
Product Overview
Engineered specifically for locations requiring dependable video surveillance without audio recording compliance concerns, the Matrix 8MP Compact Series Mini Dome Camera with 6mm Lens provides crisp 3840 × 2160 video streams optimized for commercial and industrial facilities. Powered by a 1/2.8" SONY STARVIS CMOS 8MP Active Pixel Image Sensor, it maintains color integrity in challenging low-light conditions down to 0.01 Lux. Its optical 6mm Lens offers 53.9° telephoto horizontal field of view, making it optimal for discreet ceiling installation for indoor corridors and entryways.\n\nThe camera leverages True WDR (120dB) technology to capture sharp facial and environmental details across backlit doorways and outdoor perimeters. In pitch-black conditions, high-efficiency IR illumination reaches up to 30m for uninterrupted 24/7 protection. Packaged inside an IP67 rated dust- and water-tight enclosure with IK10 vandal resistance, it integrates seamlessly into corporate IP surveillance systems via ONVIF Profile S/G/T and PoE power connectivity, while smart H.265 video compression substantially reduces NVR storage demands.
Why Buy This Product
Targeted Telephoto Identification
Concentrates sensor pixels on narrow corridors, entry barriers, and access gates for crisp facial recognition at extended distances.
Privacy Compliance Ready
Pure video recording architecture designed specifically for office environments, clinics, and work areas where audio capture is legally prohibited.
Forensic 4K Ultra HD Detail
Delivers 4x the resolution of standard 1080p cameras, enabling digital zoom inspection on recorded video without losing facial sharpness.
Best for These Applications
Bank Counters & Cash Desks
Positioned directly over teller counters to capture currency handling and client facial details.
Long Hallways & Corridors
Viewing the entire length of hotel, hospital, or school hallways without wasting pixels on side walls.
Key Advantages
- Sony STARVIS Low-Light Sensitivity:Back-illuminated pixel architecture captures richer colors and reduced noise in low-light environments down to 0.01 Lux.
- True WDR (120dB) Dual-Exposure:Combines short and long exposure frames in real-time to preserve highlight details and shadow visibility simultaneously.
- Smart H.265 Video Compression:Optimizes video bitrates by up to 50% compared to legacy codecs, drastically reducing NVR storage costs and network bandwidth load.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.74 |
| Shipping Weight | 0.84 |
| Image Sensor | 1/2.8" SONY STARVIS CMOS 8MP Active Pixel Image Sensor |
| Max Resolution | 3840 × 2160 |
| Min Illumination | Color: 0.01 Lux @ F1.2 (AGC ON), Monochrome: 0 Lux with IR |
| Lens Type | Fixed Focal |
| Focal Length And Fov | 6.0mm: Horizontal FOV 53.9°, Vertical FOV 30.0°, Diagonal FOV 62.0° |
| Aperture | F1.6 / F2.0 |
| Supplement Light Range | Up to 30m |
| Supplement Light Type | IR |
| Ir Wavelength | 850nm |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 128 kbps - 8 Mbps |
| Built In Microphone | No |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, IPv4, IPv6, SSL/TLS, ONVIF Profile S/G/T |
| Wdr | True WDR (120dB) |
| Snr | >70dB |
| Image Enhancement | 3D DNR, BLC, HLC, Region of Interest (ROI), Day/Night Settings |
| Ethernet Interface | 10Base-T/100Base-TX Ethernet (RJ-45) with PoE support |
| On Board Storage | MicroSD Card slot, Up to 512GB |
| Smart Event | Motion Detection, Intrusion Detection, Tripwire Detection, Camera Tampering, Region Entrance, Region Exiting |
| Face Capture | No |
| Power | 12V DC ± 10%, PoE (IEEE 802.3af Class 3), Maximum 9W |
| Material | Metal Enclosure |
| Dimensions | Φ126mm x 100mm |
| Weight | 740 grams |
| Operating Conditions | Temperature: -30°C to 60°C, Humidity: Less than 95% RH (non-condensing) |
| Protection Rating | IP67 |
| Vandal Proof Rating | IK10 |
| Stock | 6 |
