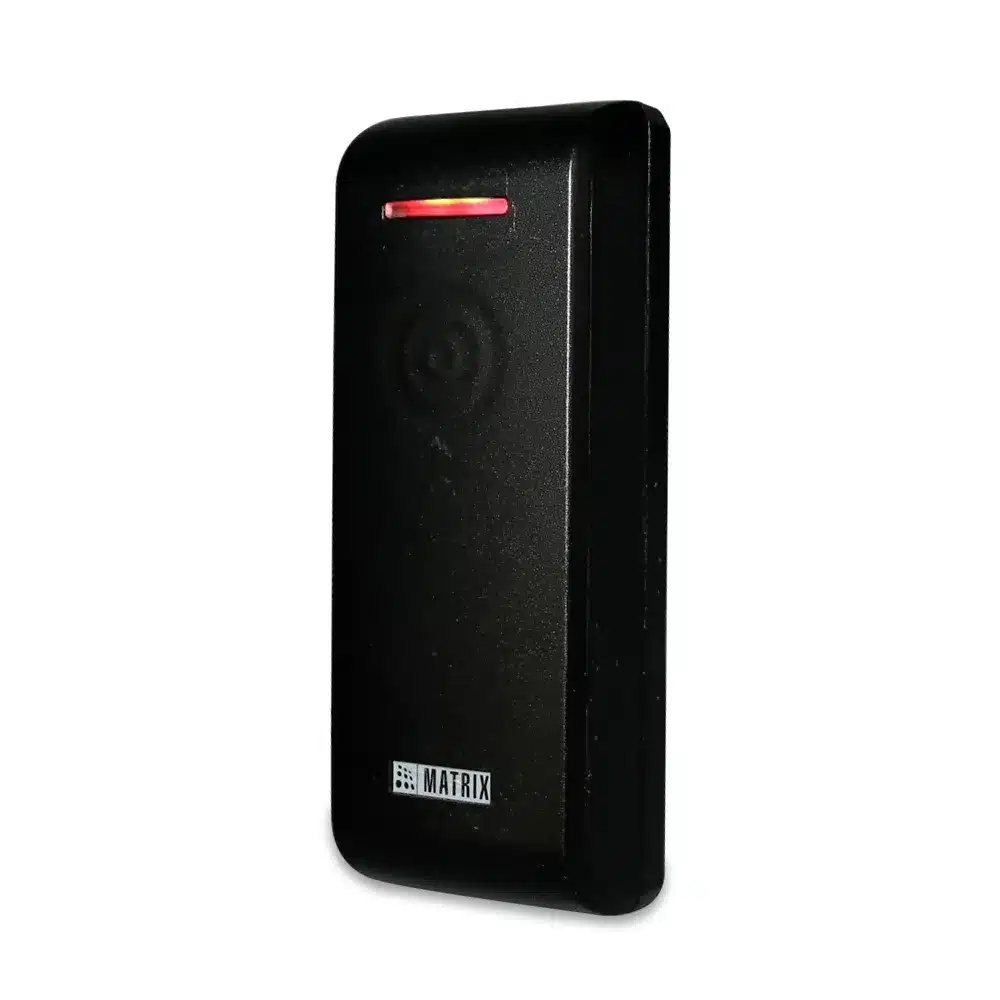

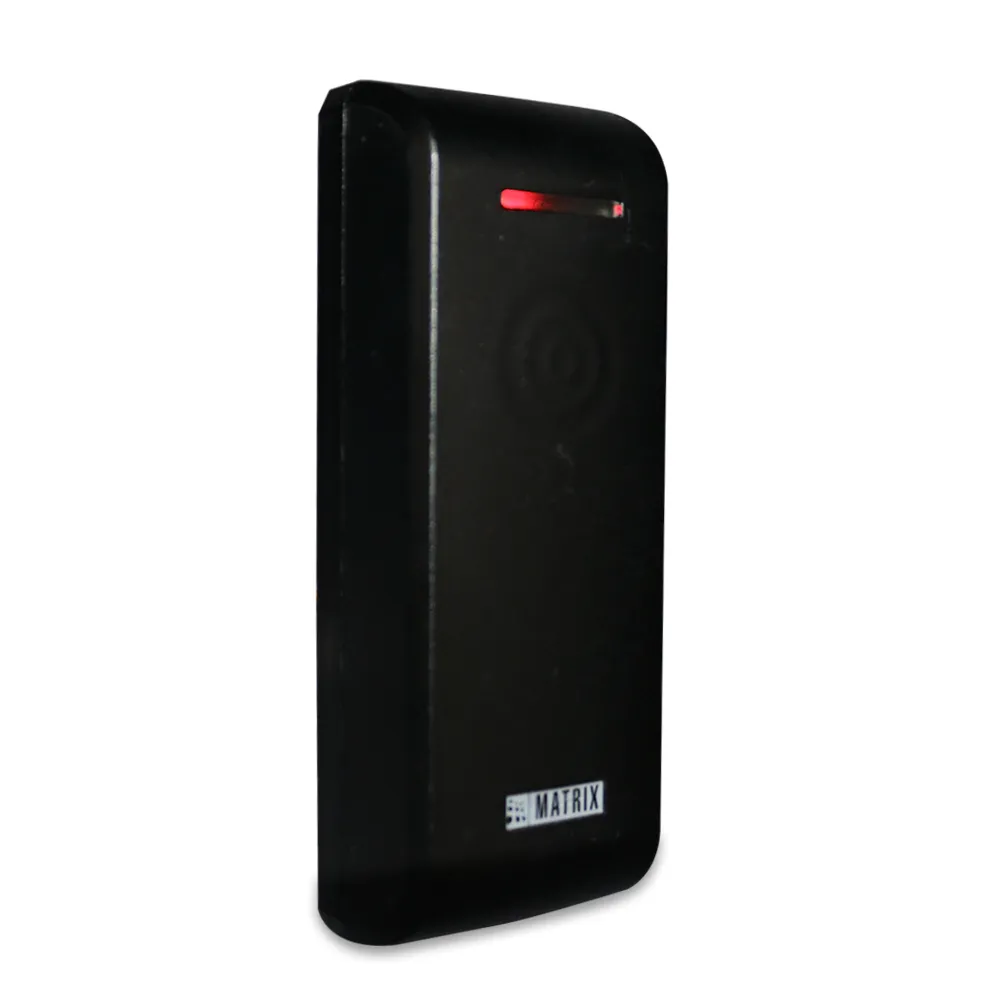

Compact Door Access Controller With Mifare Card Support
COSEC PATH DCCM, Access Control, Time Attendance, Matrix COSEC, 13.56MHz Mifare Classic Smart Card
The Matrix Compact Door Access Controller With Mifare Card Support (COSEC PATH DCCM) is a compact standalone IP door access controller featuring 13.56MHz Mifare Classic Smart Card card reading, 50,000 user capacity, 500,000 log buffer, Ethernet with PoE, RS-485, and IP65 weatherproofing.
Product Overview
The Matrix COSEC PATH DCCM combines full door controller intelligence inside a compact mullion housing. Equipped with 10/100 Mbps Ethernet, Power over Ethernet (PoE IEEE 802.3af), and RS-485, it controls door locks and exit switches directly. Supporting 50,000 users and 500,000 offline event logs, the COSEC PATH DCCM operates reliably in standalone mode or linked with COSEC CENTRA/VYOM software, providing robust protection in an IP65 rated casing.
Why Buy This Product
Mullion IP Controller
Combines complete IP door controller logic into a slim mullion casing.
PoE Powered
Powers the controller and lock peripherals directly over standard Ethernet cables.
500K Offline Event Buffer
Retains all access event logs locally during network server downtime.
Best for These Applications
Corporate Office Doors
Fits neatly on narrow office door frames while providing full door control.
Outdoor Entry Gates
IP65 weatherproofing resists rain, temperature shifts, and humidity.
Server Rooms
Delivers standalone IP access control with high-capacity event logging.
Key Advantages
- Standalone & Networked:Operates autonomously offline or connected to enterprise COSEC software.
- Compact Footprint:Reduces wall clutter by integrating reader and controller into one unit.
- PoE Cable Simplicity:Runs power and network communications over a single Cat5/6 cable.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.45 |
| Shipping Weight | 0.65 |
| User Capacity | 50000 |
| Log Capacity | 500000 |
| Event Buffer | 500000 |
| Doors Supported | 1 |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Rfid Frequency | 13.56MHz (Mifare Classic Read/Write) |
| Communication Interfaces | Ethernet, RS-485, Wiegand |
| Poe Standard | PoE (IEEE 802.3 af) |
| Operating Temp | -10°C to +50°C |
| Operating Humidity | 5% to 95% RH Non-Condensing |
| Power Requirements | 12V DC @ 1A or PoE (IEEE 802.3 af) |
| Certifications | CE, FCC, RoHS |
| Authentication Modes | Card |
| Stock | 8 |
