EON510, Telecom, PBX, Matrix Comsec, Digital Key Phone, 240x64 LCD, 16 DSS Keys
Executive digital key phone for Matrix ETERNITY PBX systems featuring a 240x64 backlit graphical display, 16 programmable multi-function DSS keys with bi-color LEDs, and a full-duplex hands-free speakerphone.
Product Overview

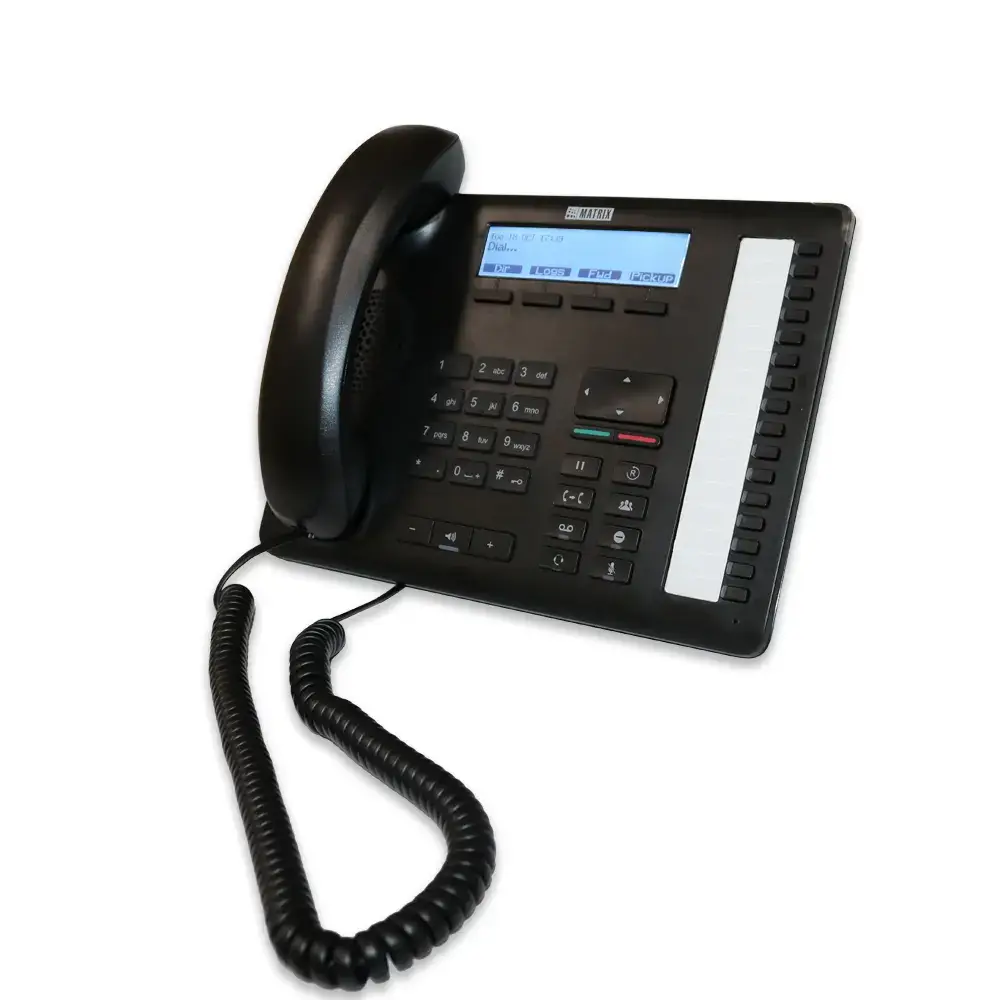

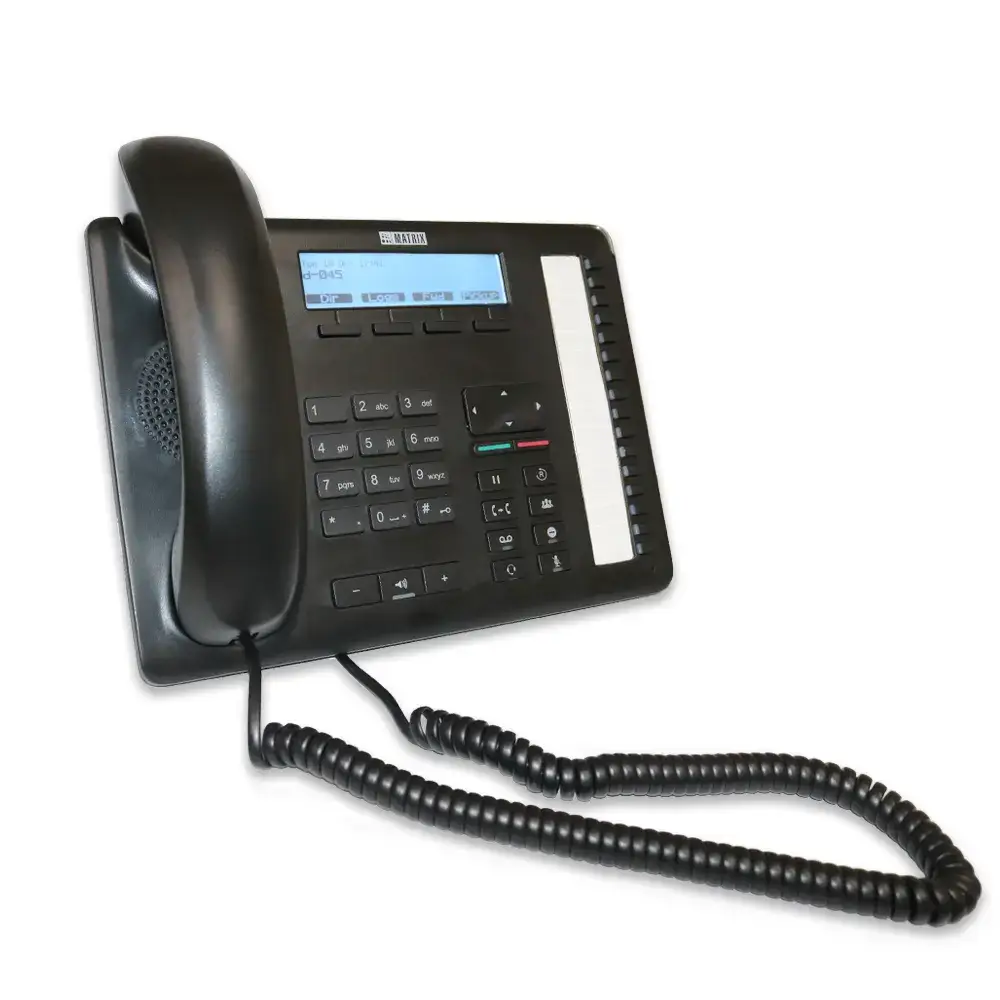

The Matrix EON510 is a digital key telephone tailored specifically for organizations utilizing Matrix ETERNITY IP-PBX infrastructure (GENX, MENX, LENX, PENX, NENX). Connecting directly over a standard 2-wire digital extension pair (DKP line), the EON510 provides direct access to system feature codes, multi-line status monitoring, and extension line selection without consuming IP network bandwidth. It houses a 240x64 pixel backlit LCD screen, 16 programmable physical DSS keys with dual-color LED status indicators, a full-duplex speakerphone with Acoustic Echo Cancellation, and a dedicated RJ9 headset port. It can also accept up to four DSS532 expansion consoles for high-density attendant stations.
Why Buy This Product
240x64 Backlit Graphical Display
Clear visual interface displaying caller ID, call logs, extension directory, and active feature prompts.
16 Bi-Color DSS Keys
One-touch physical keys for speed dial, extension status, line selection, and trunk monitoring.
Full-Duplex Speakerphone
Crystal-clear hands-free voice communication with built-in Acoustic Echo Cancellation (AEC).
Best for These Applications
Corporate Executives
Managers needing fast access to extension status, direct dial keys, and high-clarity voice calling.
Administrative Staff
Office admins handling daily call routing, conference bridge access, and voice messages.
ETERNITY PBX Deployments
Organizations utilizing Matrix ETERNITY hybrid PBX systems with digital extension card infrastructure.
Key Advantages
- Direct DKP Bus Integration:Connects directly over standard 2-wire digital pair to Matrix ETERNITY systems without IP bandwidth or network switch overhead.
- High-Density Expansion Support:Attaches to up to 4 external DSS532 consoles, expanding one-touch programmable keys up to 144 buttons.
- Intuitive Call Control Keys:Dedicated hardware buttons for Transfer, Hold, Mute, Speaker, Conference, and Redial streamline daily workflows.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.8 |
| Shipping Weight | 1 |
| Dkp Lines | 1 |
| Dss Keys | 16 |
| Paperless Dss Keys | No |
| Line Status Indicators | Bi-color LED Indicators (Red/Green) |
| Display Type | 240x64 Pixel Graphical Backlit LCD |
| Display Resolution | 240 x 64 pixels |
| Screen Size | 240x64 px |
| Speakerphone | Full-Duplex Hands-Free Speakerphone with AEC |
| Headset Port | RJ9 Dedicated Headset Port |
| Audio Codecs | Matrix Digital DKP Engine |
| Expansion Module Supported | Yes |
| Max Expansion Consoles | 4 |
| Compatibility | ETERNITY GENX, ETERNITY MENX, ETERNITY LENX, ETERNITY PENX, ETERNITY NENX |

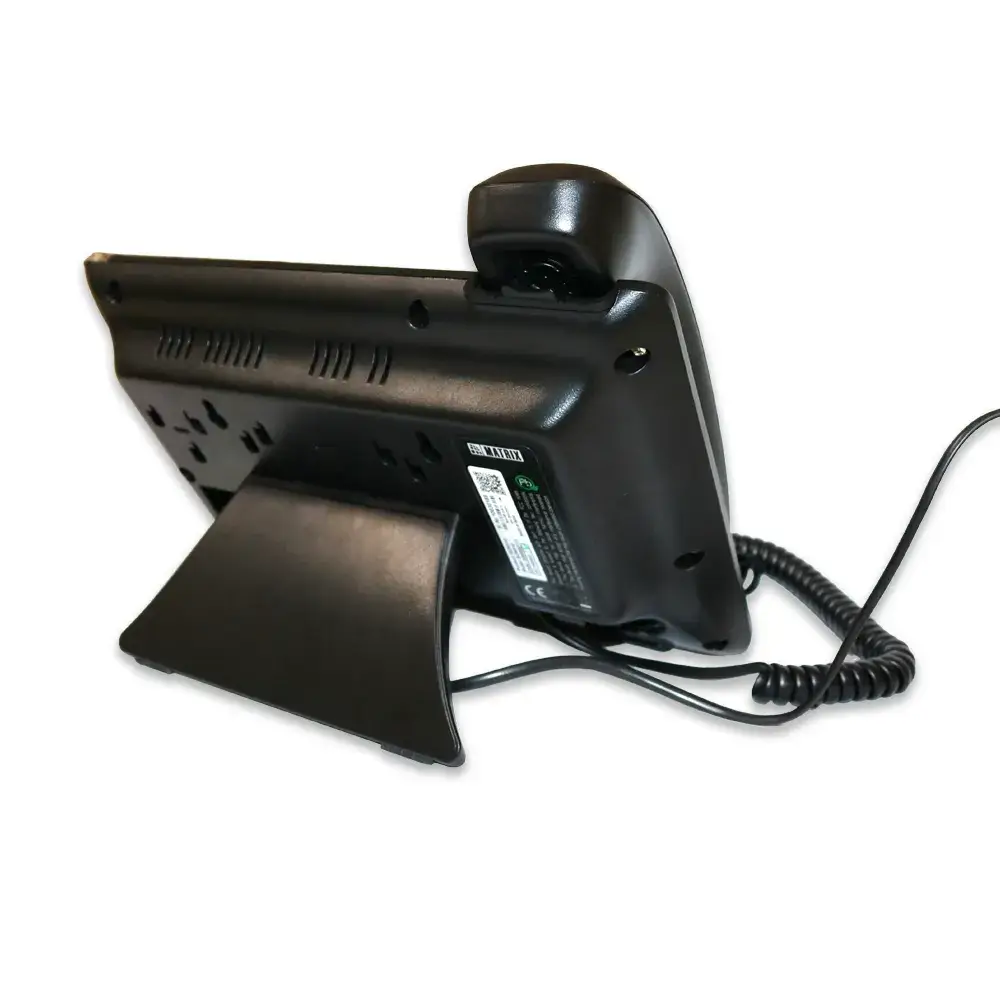

| Mounting Type | Multi-Angle Desktop Stand / Wall Mountable |
| Dimensions | 245 x 190 x 50 mm |
| Stock | 1 |
