ETERNITY MENX16SAC, Telecom, PBX, Matrix Comsec, 16 Universal Slots, 512 Extensions, AC Power
Mid-to-large enterprise modular hybrid IP-PBX system with 16 universal expansion slots and AC power supply, supporting up to 512 extensions and unified communications.
Product Overview

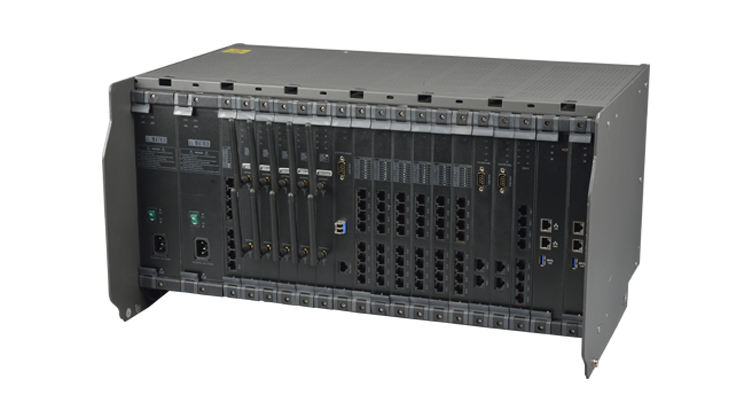

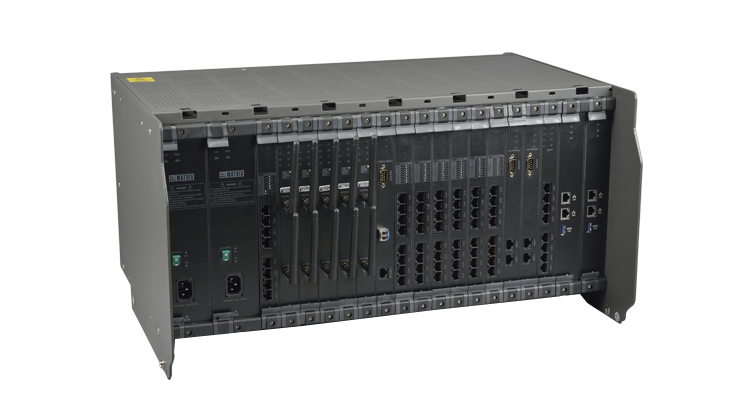

The Matrix ETERNITY MENX16SAC is a high-performance modular hybrid IP-PBX tailored for mid-to-large enterprises needing up to 512 physical extension lines and scalable IP trunking. Featuring 16 universal slots housed in a 6U rackmount chassis with a built-in AC power supply, it bridges traditional PSTN lines, cellular 4G trunks, and SIP networks into a unified voice matrix. Powered by Matrix SARVAM UCS software, the MENX16SAC equips business users with multi-party audio conferencing, multi-lingual IVR, call recording, and softphone connectivity. Resellers can easily customize the slot configuration to balance analog desk phones, IP endpoints, and digital key systems.
Why Buy This Product
Balanced 16-Slot Expandability
Provides 16 universal slots for growing mid-to-large businesses needing substantial physical line density with room for expansion.
True TDM-to-IP Convergence
Mix analog, digital key phones, mobile 4G VoLTE, and IP phones seamlessly on one centralized communications controller.
Anywhere Mobility with VARTA
Extends office phone numbers to mobile smartphones and laptops via Matrix VARTA UC softphones for hybrid workforces.
Least Cost Call Routing
Automatically selects the cheapest trunk path (SIP, GSM/4G, or PSTN) based on the dialed number to slash monthly telecom bills.
Best for These Applications
Mid-to-Large Enterprises
Growing organizations with multiple departments requiring a blend of analog desk phones and IP executive stations.
Hospitals & Medical Centers
Healthcare centers needing dependable ward extensions, nurse station intercoms, and high-capacity doctor lines.
Mid-Sized Hotels & Resorts
Lodging properties requiring guest room analog lines integrated with front desk management and billing software.
Government & Legal Departments
Public agencies requiring secure, certified hybrid communications with detailed call audit logging.
Key Advantages
- Universal Card Placement:Insert any Matrix expansion card (FXS, FXO, GSM, PRI) into any of the 16 slots without being constrained by fixed card positions.
- Multi-Party Audio Conferencing:Built-in conference bridge connects up to 21 participants in a single conference or up to fifteen 3-party simultaneous conferences.
- Secure VoIP Architecture:TLS signaling encryption and SRTP media stream encryption safeguard IP conversations from interception and toll fraud.
- Automated Return Call to Original Caller (RCOC):Intelligently routes customer callbacks directly to the specific extension that initiated the outbound call.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 8.5 |
| Shipping Weight | 9 |
| User Capacity | 512 |
| Max Ip Users | 999 |
| Analog Extensions | 512 |
| Digital Extensions | 96 |
| Co Lines | 64 |
| Sip Trunks | 99 |
| Ip Trunks | 99 |
| Gsm Channels | 40 |
| Pri Ports | 8 |
| Expansion Slots | 16 |
| Voip Channels | 128 |
| Voicemail Channels | 64 |
| Voicemail Storage | Embedded VMS Engine (up to 64 Voicemail Channels) |
| Audio Conferencing | 62-Party Audio Conference |
| Call Detail Records | 11,998 Call Records |
| System Architecture | Mid-to-Large Enterprise Modular Hybrid IP-PBX |
| Power Supply | 100-240V AC, 50-60Hz Internal Power Supply |
| Power Consumption | 160W Max |
| Mounting Form Factor | 6U 19-inch Rackmount |
| Dimensions | 482 x 340 x 266 mm |
| Weight | 8.5 kg |
| Operating Temperature | 0°C to 45°C |
| Ethernet Interfaces | 2 x 10/100/1000 Mbps Gigabit LAN/WAN |
| Voip Protocols | SIP v2 (RFC 3261), SRTP, TLS, SDP |
| Audio Codecs | G.711a, G.711u, G.723.1, G.729AB, GSM-FR, iLBC |
| Certifications | CE, FCC, TEC, RoHS |
| Stock | 7 |
