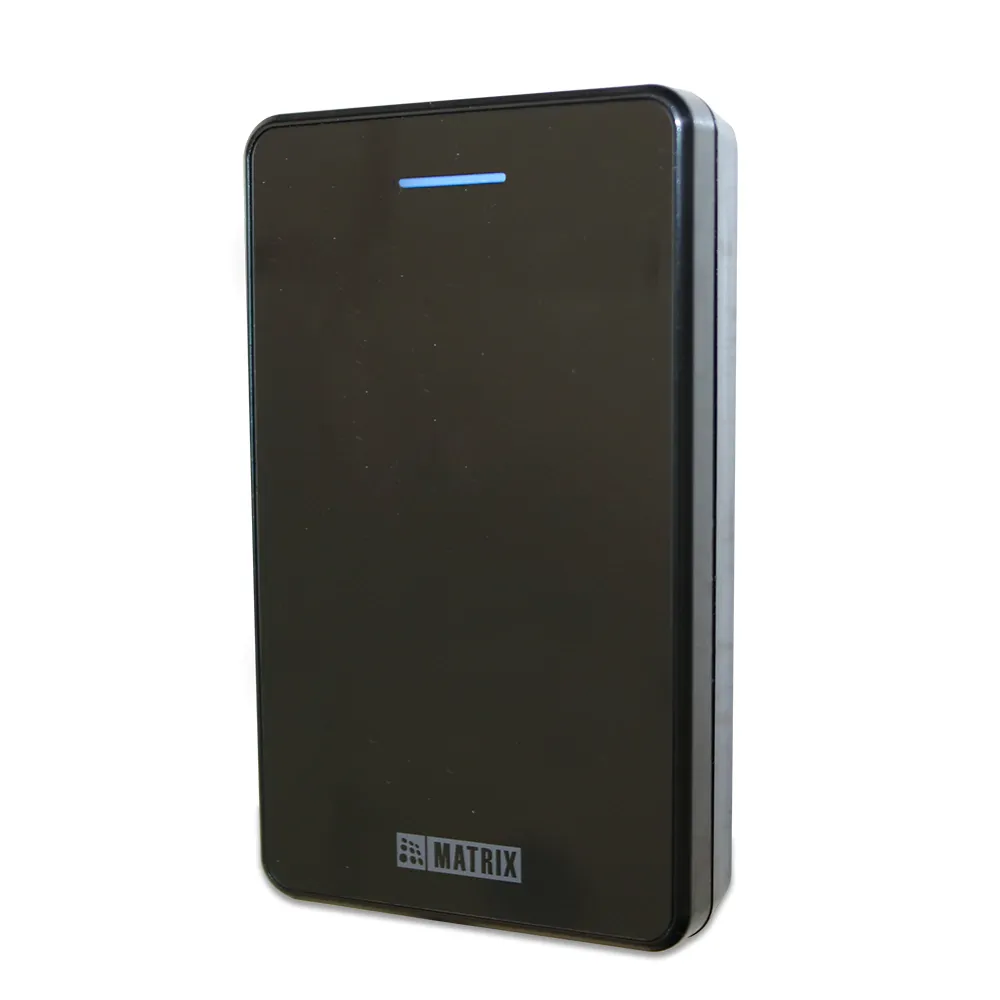

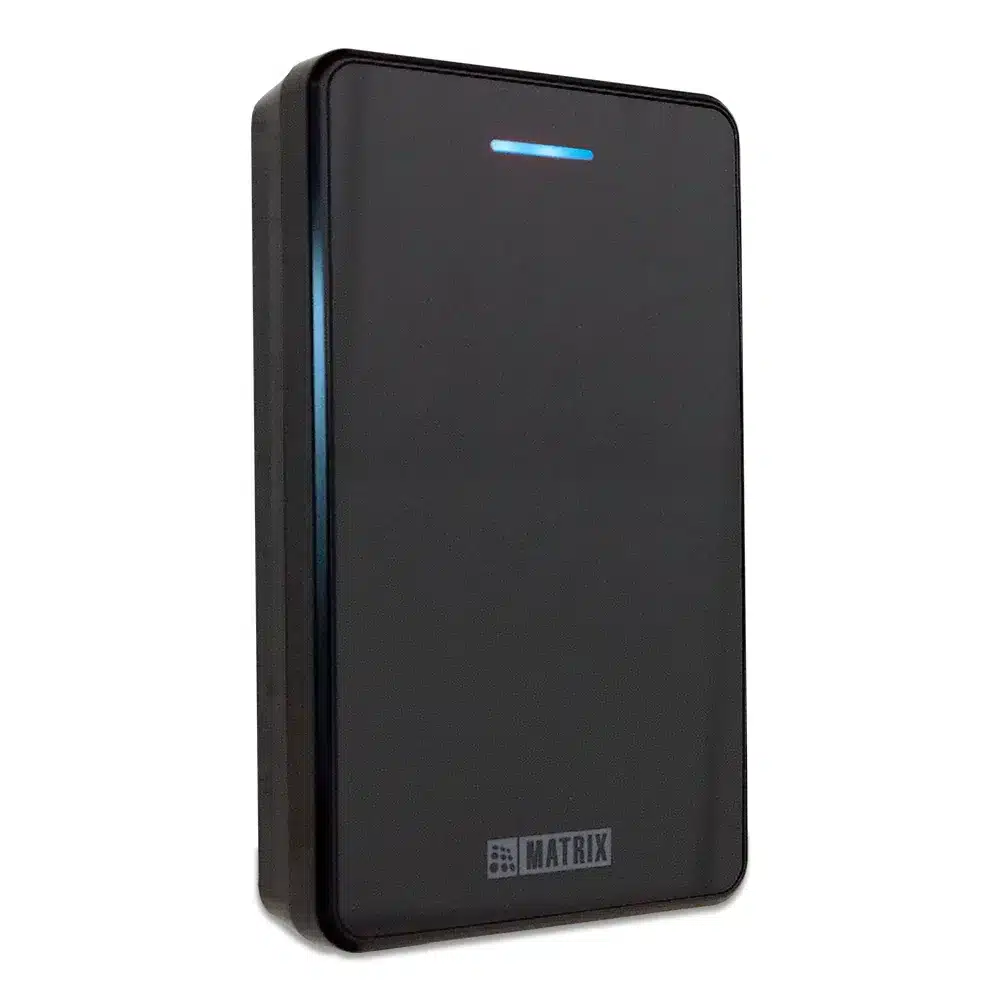

Hid Iclass Card And Bluetooth Based Reader
COSEC ATOM RD100I, Access Control, Time Attendance, Matrix COSEC, HID iClass / EM Prox Smart Card
The Matrix Hid Iclass Card And Bluetooth Based Reader (COSEC ATOM RD100I) is a compact, high-security access control slave reader featuring HID iClass / EM Prox Smart Card card reading, Bluetooth Low Energy (BLE) mobile access, Wiegand & RS-485 communication, and an IP65 Weatherproof & IK08 Vandal Resistant rating.
Product Overview
The Matrix COSEC ATOM RD100I delivers versatile credential verification in an ultra-compact form factor. Built with an IP65 Weatherproof & IK08 Vandal Resistant enclosure, it is engineered for heavy outdoor usage, withstands physical impacts, and resists weather elements. Designed to connect directly to door controllers via RS-485 or Wiegand protocols, the COSEC ATOM RD100I enables multi-factor authentication using HID iClass / EM Prox Smart Card RFID smart cards and smartphone Bluetooth credentials with instant visual and audible feedback.
Why Buy This Product
IK08 Vandal-Proof
Resists heavy impacts and tampering in unmonitored outdoor entryways.
BLE Mobile Access
Allows users to gain access effortlessly via Bluetooth mobile credentials.
Dual Protocol Output
Interfaces easily with Matrix controllers or 3rd-party panels via RS-485 & Wiegand.
Best for These Applications
Office Entrance Doors
Compact footprint fits cleanly on aluminum door frames and glass mullions.
Perimeter Gates
IP65 weatherproofing guarantees reliable performance in rain, dust, and humidity.
Restricted Zones
Provides secure secondary reader verification for interior turnstiles and server rooms.
Key Advantages
- Ultra-Compact Footprint: Slim profile designed specifically for standard door frame and mullion mounting.
- Multi-Technology Reader: Supports HID iClass / EM Prox Smart Card smart cards and mobile Bluetooth credentials simultaneously.
- Tamper Supervised: Instant optical tamper notification prevents physical reader bypass.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.45 |
| Shipping Weight | 0.65 |
| Ip Rating | IP65 |
| Ik Rating | IK08 |
| Tamper Detection | Yes |
| Rfid Frequency | 13.56MHz (HID iClass), 125KHz (EM Prox), Mifare CSN |
| Communication Interfaces | RS-485, Wiegand |
| Ble Support | Yes |
| Operating Temp | -10°C to +50°C |
| Operating Humidity | 5% to 95% RH Non-Condensing |
| Power Requirements | 12V DC @ 0.25A |
| Certifications | CE, FCC, RoHS |
| Authentication Modes | Card, BLE |
