COSEC ARC DC200P, Access Control, Time Attendance, Matrix COSEC, 125kHz EM Proximity Card

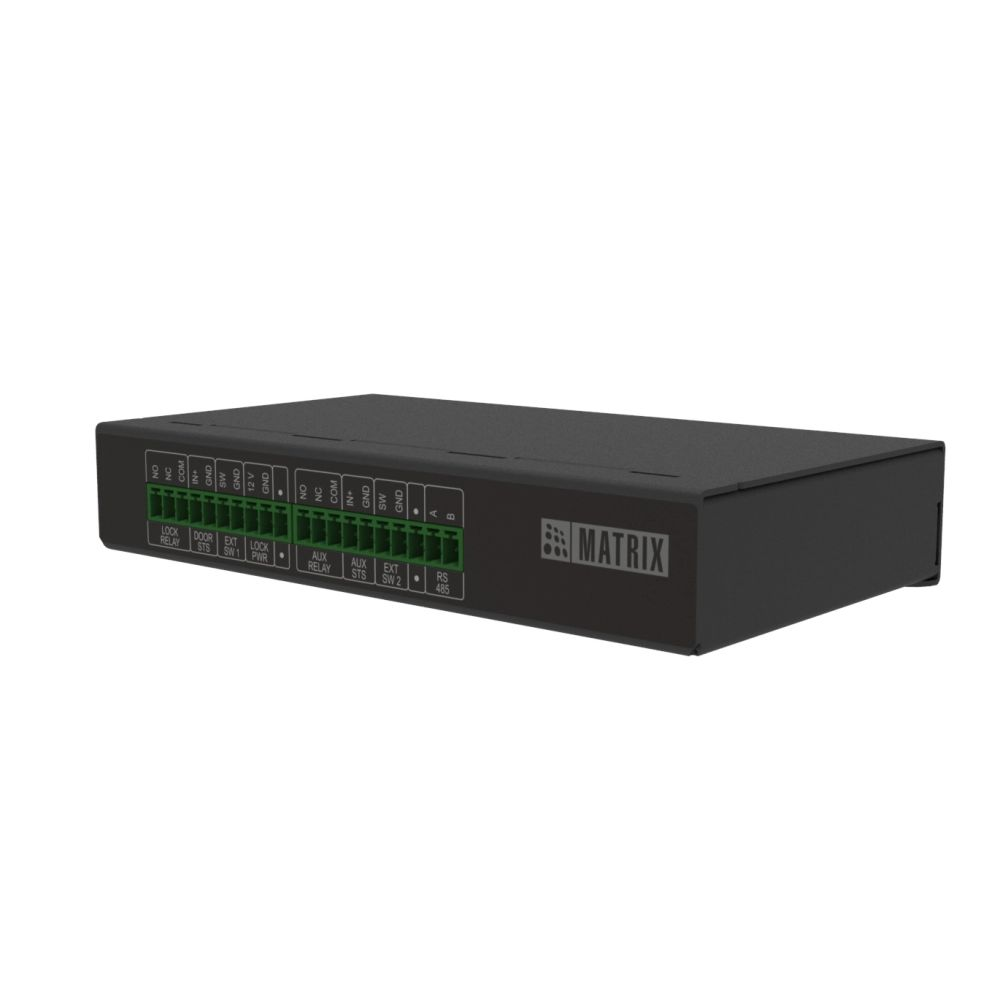

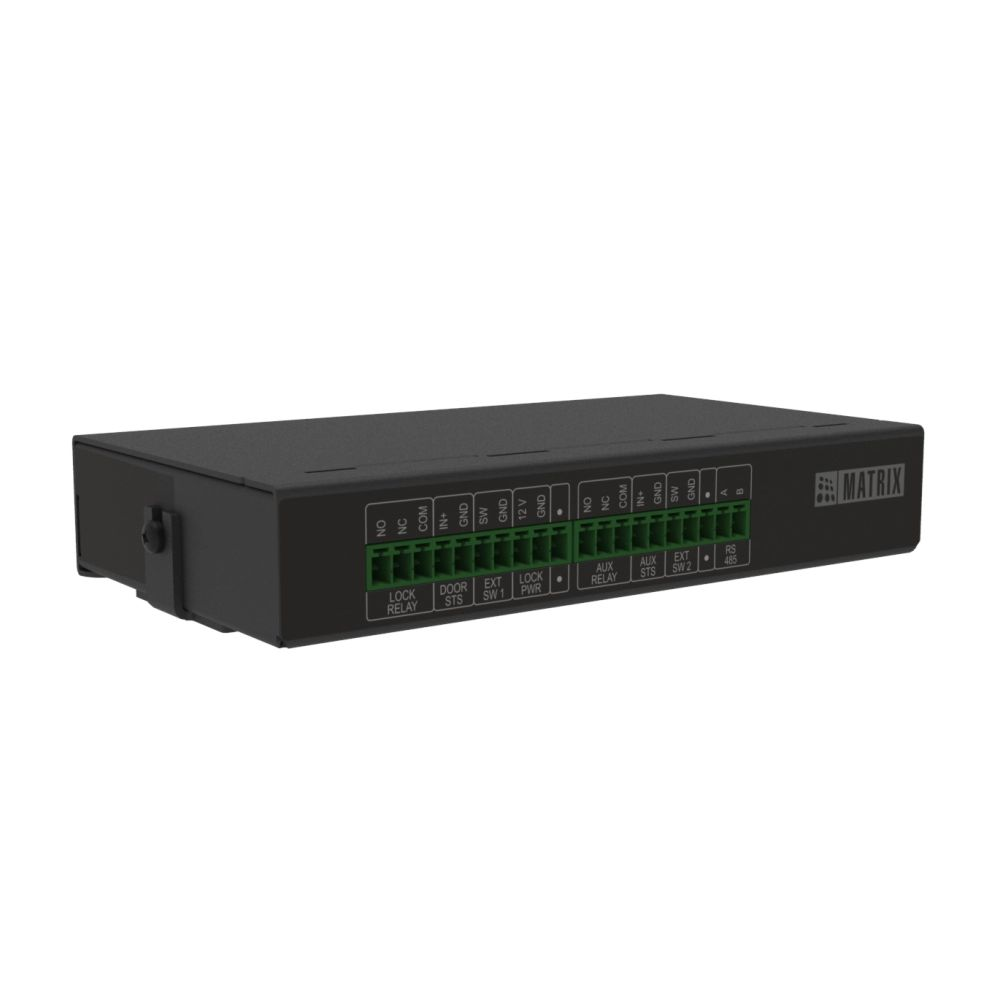

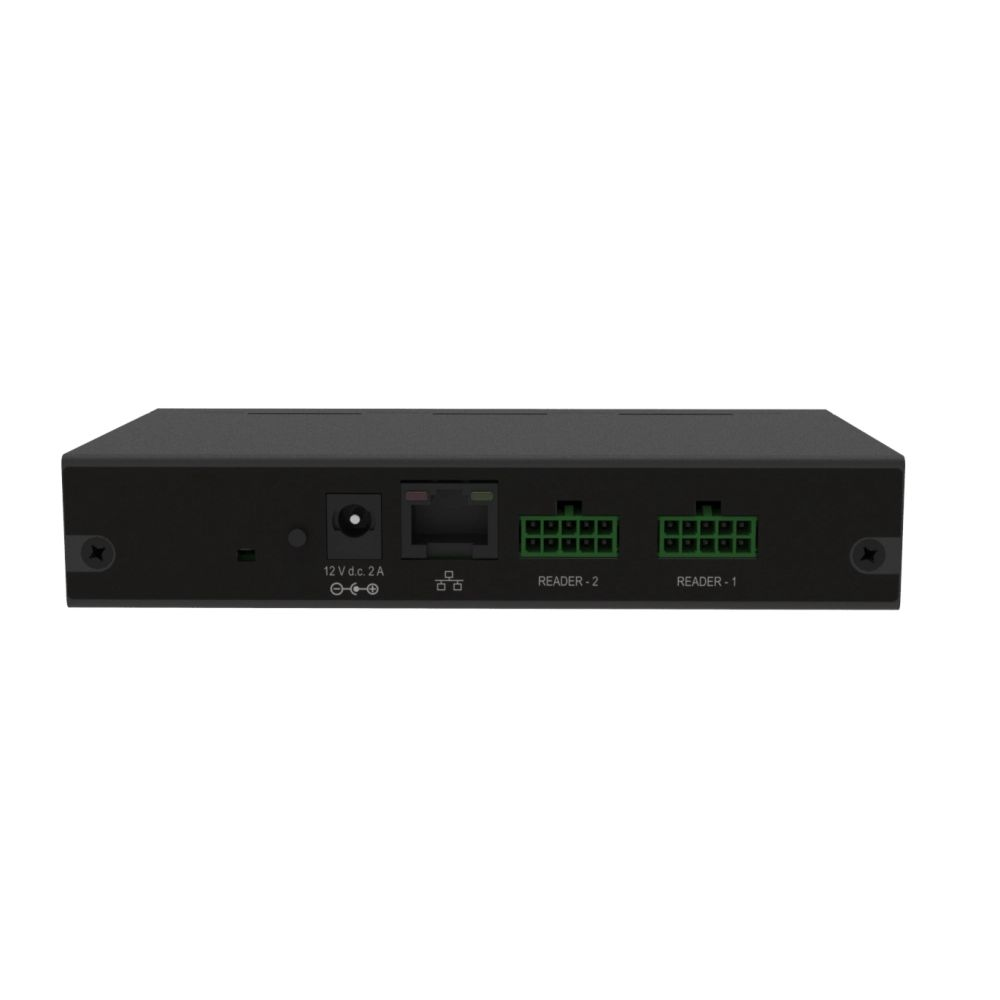

The Matrix COSEC ARC DC200P is an enterprise two-door IP access controller supporting up to 2 readers via Wiegand, RS-485, or OSDP V2.2. Featuring 50,000 user credentials, a 500,000 event log buffer, PoE+ power, Ethernet, Wi-Fi, and Bluetooth, it delivers robust access management in direct or panel-guided deployments.
Product Overview
The Matrix COSEC ARC DC200P revolutionizes door access control with its 'IP to door' architecture. Operating in both Direct Door Mode (interfacing directly with COSEC CENTRA/VYOM software) and Panel Door Mode (coordinated via COSEC PANEL200P), it ensures seamless security operations for enterprise entry points. Equipped with a high-performance Cortex A8 800MHz processor, 256MB Flash, 256MB RAM, 4-state supervised auxiliary inputs, and SPDT relay outputs, the DC200P handles high traffic while maintaining offline transaction security during network interruptions.
Why Buy This Product
Dual Door IP Control
Controls up to 2 doors independently over IP with native PoE+ power supply.
Cortex Processing Engine
Powered by an 800MHz Cortex A8 CPU for sub-second credential matching and event logging.
Versatile Connectivity
Supports Ethernet, Wi-Fi, Bluetooth mobile access, and RS-485/OSDP V2.2 protocols.
Best for These Applications
Corporate Offices
Ideal for securing main entryways, executive corridors, and restricted office doors.
Data Centers
Provides high-capacity access logs and supervised auxiliary alarm monitoring for server rooms.
Industrial Plants
Supports heavy event traffic and flexible DIN-rail installation in control panels.
Key Advantages
- Direct & Panel Door Operation: Operates standalone with CENTRA/VYOM software or linked to PANEL200P site controllers.
- OSDP V2.2 Secure Protocol: Enables encrypted bi-directional communication between door controller and peripheral readers.
- Supervised Aux Inputs: Monitors tamper, glass break, and door status sensors with 4-state supervised logic.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.45 |
| Shipping Weight | 0.65 |
| User Capacity | 50000 |
| Log Capacity | 500000 |
| Event Buffer | 500000 |
| Doors Supported | 2 |
| Readers Supported | 2 |
| Communication Interfaces | Ethernet, Wi-Fi, Bluetooth, RS-485, Wiegand |
| Wiegand Interface | Selectable IN (26-bit) / OUT Configurable |
| Osdp Support | Yes |
| Poe Standard | PoE+ (IEEE 802.3 af/at) |
| Cpu | Cortex A8 800 MHz |
| Memory | 256MB Flash, 256MB RAM |
| Auxiliary Inputs | 4-State Supervised AUX-IN (4 Ports) |
| Door Relay Output | 30V DC @ 2A Dry Contacts NO/NC/COM |
| Dimensions | 140mm x 24mm x 80mm |
| Operating Temp | -10°C to +50°C |
| Operating Humidity | 5% to 95% RH Non-Condensing |
| Mounting Options | Wall Mount or DIN-Rail Mounting |
| Certifications | CE, FCC, RoHS, UL |
