VOIP GSM Gateway With 8 GSM 12 VOIP Channels
VOIP-GSM-GATEWAY-WITH-8-GSM-12-VOIP-CHANNELS, Telecom, Gateway, Matrix Comsec, 8 GSM, 12 VoIP Channels

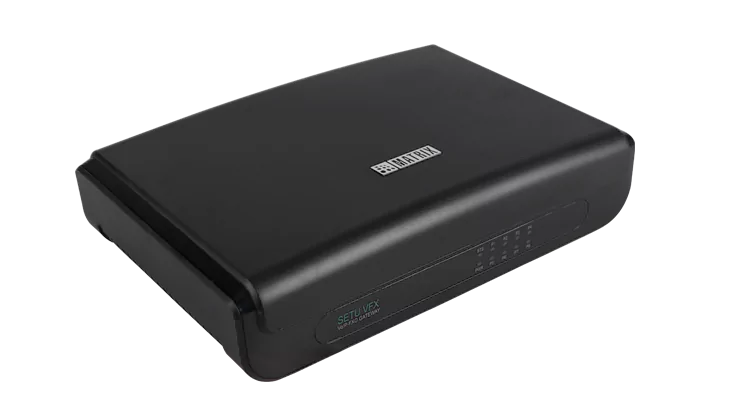

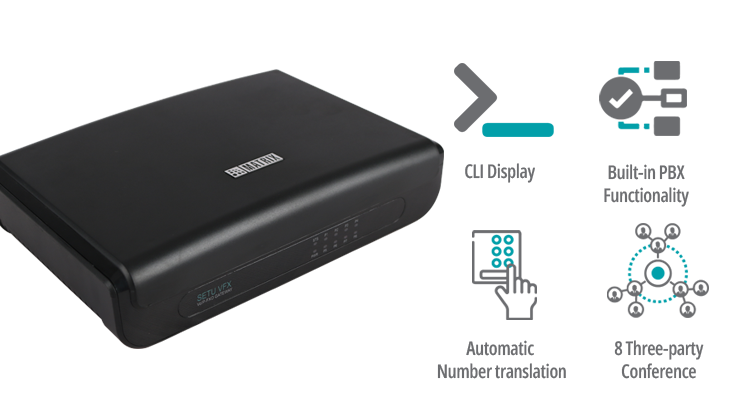

The Matrix SETU VG08 is a high-density 8-channel VoIP-to-GSM gateway designed for enterprises and contact centers needing high concurrent cellular voice channels and cost-effective mobile calling.
Product Overview
The Matrix SETU VG08 expands cellular connectivity for demanding enterprise call centers, providing 8 GSM SIM card slots and 12 VoIP SIP channels. By routing outbound IP calls over local mobile SIMs, it significantly lowers corporate telephony overhead. Equipped with enterprise voice processing DSPs, the SETU VG08 delivers crystal-clear audio quality with G.168 echo cancellation, G.729 codec compression, and robust defense against toll fraud with TLS/SRTP encryption.
Why Buy This Product
8 Active GSM SIM Channels
Supports up to 8 simultaneous cellular calls across different mobile network carriers.
Automatic SIM Rotation
Rotates active SIM cards based on call volume or time of day to optimize carrier call minute plans.
Enterprise VoIP Security
TLS/SRTP encryption guards voice channels against unauthorized tapping and interception.
Best for These Applications
High-Volume Call Centers
Telemarketing and support teams making hundreds of mobile calls daily.
Medium Enterprises
Companies consolidating multi-carrier cellular voice services onto one IP platform.
Offsite Operations
Construction sites and remote logistics hubs requiring high cellular line capacity.
Key Advantages
- 12 Concurrent VoIP Trunks: Handles 12 simultaneous SIP call streams to eliminate bottlenecks during traffic spikes.
- Web SMS Management: Intuitive web graphical console to send, receive, and archive SMS messages.
- Plug-and-Play SIP Integration: Pre-configured templates for seamless connection to Matrix ETERNITY, Asterisk, and 3CX.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 2 |
| Shipping Weight | 2.3 |
| Fxo Ports | 0 |
| Fxs Ports | 0 |
| Gsm Channels | 8 |
| Pri Ports | 0 |
| Voip Channels | 12 |
| Sim Card Slots | 8 |
| Sip Accounts | 12 |
| Voip Protocols | SIP v2 (RFC3261), SDP, RTP, RTCP |
| Audio Codecs | G.711a/u, G.729A, G.723.1, iLBC |
| Fax Support | T.38 Fax Relay & Pass-through |
| Dtmf Modes | In-Band, RFC2833, SIP INFO |
| Echo Cancellation | G.168 Line Echo Cancellation (up to 128ms) |

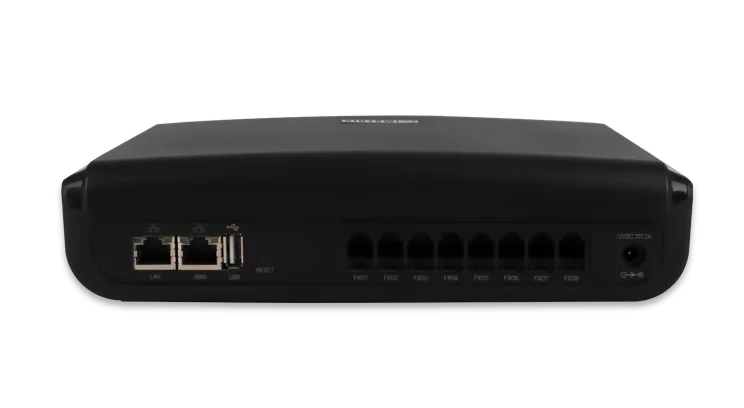

| Ethernet Ports | 2 x 10/100 Mbps RJ45 Ethernet Ports (WAN/LAN) |
| Network Protocols | IPv4, DHCP Client/Server, PPPoE, VLAN 802.1Q, STUN |
| Security Protocols | TLS 1.2, SRTP, HTTPS, Digest Authentication |
| Call Routing Features | Least Cost Routing (LCR), Time-Based SIM Rotation, Caller ID Forwarding, Emergency Call Overrides |
| Power Supply | 12V DC, 3A External Power Adapter |
| Power Consumption | 22W Maximum |
| Mounting Form Factor | Desktop / 1U Rackmountable |
| Dimensions | 302 x 185 x 48 mm |
| Operating Temperature | 0°C to 45°C |
| Certifications | CE, FCC, TEC, RoHS |
