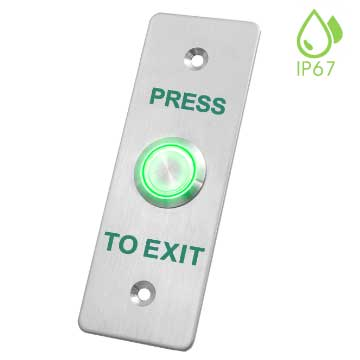

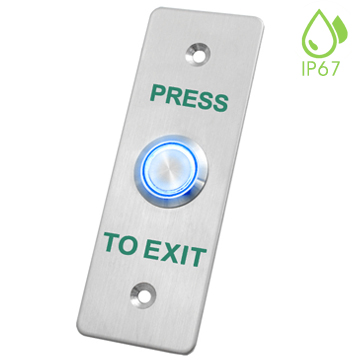

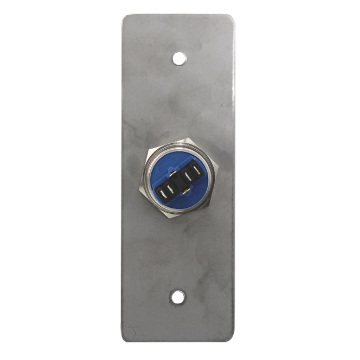

EB-SW40L Stainless Steel Waterproof Exit Button with LED-1.7mm Stanless Steel
S4A EB-SW40L exit button, 304 Stainless Steel construction, 3A/125-250VAC contact rating, and NO/COM/NC/COM/+12V/GND output contacts.
The S4A EB-SW40L is a heavy-duty 1.7mm thick 304 stainless steel release button. Offers high durability and IP67 weather resistance for high-traffic entryways.
Product Overview
The S4A EB-SW40L is a professional-grade door release switch designed for secure access control systems. Constructed from high-quality 304 Stainless Steel, it is tested to withstand up to 500000 tests operations. It integrates standard NO/COM/NC/COM/+12V/GND contacts with a contact rating of 3A/125-250VAC, offering wide compatibility with electronic door locks and access controllers.
Why Buy This Product
Premium Build
Made from high-quality durable materials for longevity.
Wide Compatibility
Perfect for magnetic locks, electric strikes, and controller systems.
Best for These Applications
Commercial Entryways
Best suited for offices, residential complexes, and secure buildings.
Key Advantages
- Tested Durability: Engineered for up to 500,000 duty cycles to ensure continuous operation.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.13 |
| Shipping Weight | 0.18 |
| Button Type | stainless-1-7 |
| Material | 304 Stainless Steel |
| Dimensions | 115Lx40W(mm) |
| Contact Rating | 3A/125-250VAC |
| Output Contact | NO/COM/NC/COM/+12V/GND |
| Mechanical Life | 500000 tests |
| Input Voltage | 12VDC or 24VDC |
| Led Indicator | Yes |
| Led Color | Default Blue, Optional customized |
| Panel Thickness | 1.7mm |
| Suitable For | Hollow Door |
| Weight | 0.13KG |
