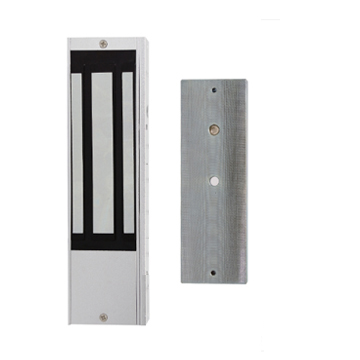

S4A EL-800SD Single Door 350KG Magnetic Lock with LED & Lock Sensor

Name: S4A EL-800SD Single Door 350KG Magnetic Lock with LED & Lock Sensor
Brand: S4A
SKU: EL-800SD
Price: 9860 KES
Availability: InStock

star star star star star

0.0 (0 reviews)

350KG magnetic lock with LED status light, lock sensor, 12V/24VDC.

The S4A EL-800SD is a 350KG (800LBS) single door electromagnetic lock featuring a Red/Green LED status indicator and lock status feedback sensor.

verified 350KG / 800LBS verified LED & Lock Sensor verified 12V/24VDC

KES 9,860.00 KES 11,800.00

local_offer Save KES 1,940 today

1 Year Manufacturer Warranty

Variants

EL-800SD 350KG / 800LBS · LED & Lock Sensor · 12V/24VDC EL-800 350KG / 800LBS · 12V/24VDC · Heavy Doors EL-800ST 350KG / 800LBS · LED, Sensor & Timer Delay · 12V/24VDC EL-800SZ 350KG / 800LBS · LED, Sensor & Buzzer Alarm · 12V/24VDC

Product Overview

The S4A EL-800SD is a professional single door electromagnetic lock delivering 350KG (800LBS) holding force. It features a built-in LED indicator and a lock status feedback sensor. Perfect for commercial doors where monitoring is required.

Technical Specifications

Parameter	Specification
Product Weight	2.7
Shipping Weight	3
Lock Type	single
Holding Force Kg	350
Holding Force Lbs	800
Holding Force Text	350KG (800LBS)
Lock Dimensions	285Lx55Wx27.5H(mm)
Armature Dimensions	190Lx45Wx11H(mm)
Operating Voltage	DC12V (Adjustable DC24V)
Current Draw	12V/500mA, 24V/250mA
Signal Output	Lock status feedback
Led Indicator	Yes
Door Status Sensor	Yes
Time Delay	None
Suitable For	Wooden door, Glass door, Metal door, Fireproof door
Bracket Compatibility	L-Bracket, U-Bracket, ZL-Bracket
Operating Temperature	-10°C ~ 55°C (14°F ~ 131°F)
Surface Temperature	≤ 20°C
Suitable Humidity	0~90% (non-condensing)
Shell Material	Anodized aluminum
Magnetic Material	Zinc
Armature Material	Zinc
