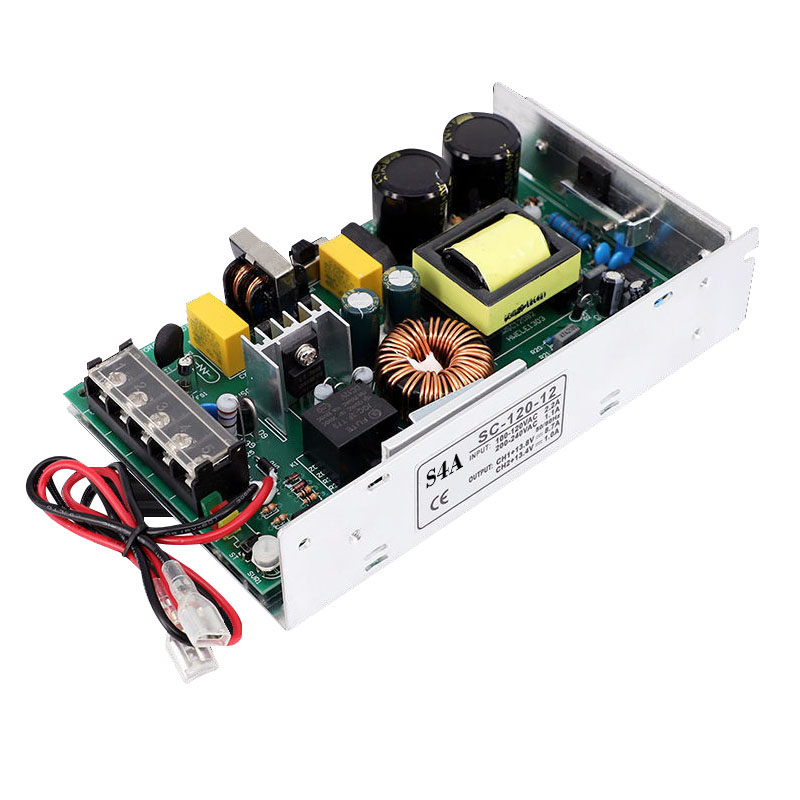

S4A SC-120-12 Access Control Power Supply (12VDC 10A)
S4A SC-120-12 access control power supply, input 90-264VAC, output 12VDC 10A, with battery backup support.
> Input: 100-240V AC50/60Hz> 1202: 12V / 2A / 24W> 1205: 12V / 5A / 60W> 1210: 12V / 10A / 120W> 2402: 24V / 2A / 46W> 2403: 24V / 3A / 72W> 2405: 24V / 5A / 120W
Product Overview

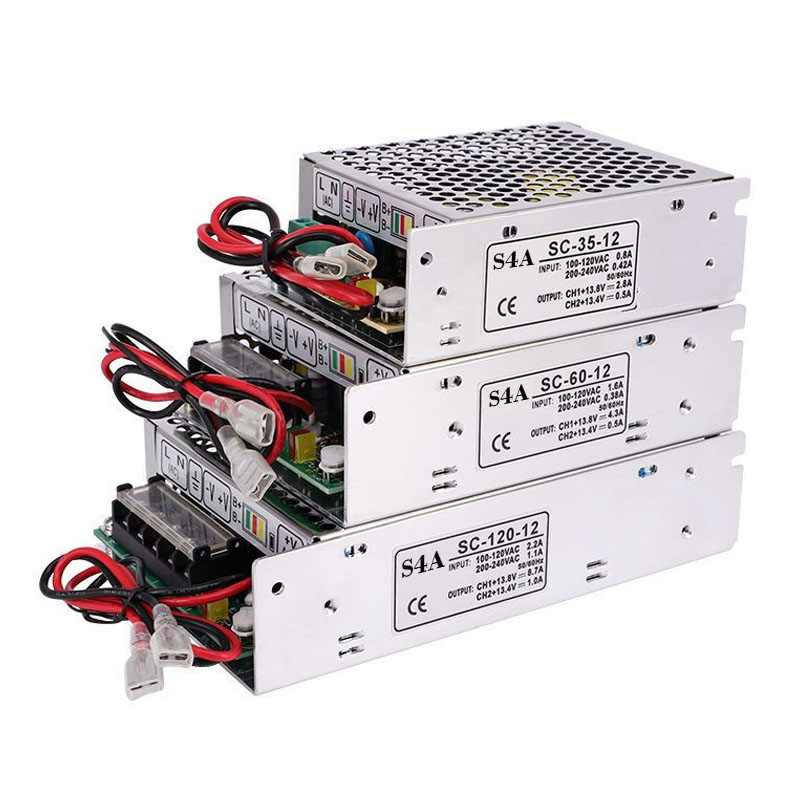

> Input: 100-240V AC50/60Hz> 1202: 12V / 2A / 24W> 1205: 12V / 5A / 60W> 1210: 12V / 10A / 120W> 2402: 24V / 2A / 46W> 2403: 24V / 3A / 72W> 2405: 24V / 5A / 120W >SC-35-12: 12V3A>SC-35-24: 24V1.5A>SC-60-12: 12V5A>SC-60-24: 24V2.5A>SC-120-12: 12V10A>SC-120-24: 24V5A >SC-35-12: 12V3A>SC-35-24: 24V1.5A>SC-60-12: 12V5A>SC-60-24: 24V2.5A>SC-120-12: 12V10A>SC-120-24: 24V5A
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 1.5 |
| Shipping Weight | 1.8 |
| Input Voltage | 90-264VAC |
| Output Voltage | 12VDC |
| Output Current | 10A |
| Output Power | 120W |
| Battery Backup Support | Yes |
| Time Delay | None |
| Dimensions | 159x98x38mm |
| Protection Features | Overload Protection, Overvoltage Protection, Short Circuit Protection |
| Ripple Noise | 120mVp-p |
| Efficiency | 84% |
| Operating Temperature | -20°C ~ 60°C |
| Weight | 1.5kg |
