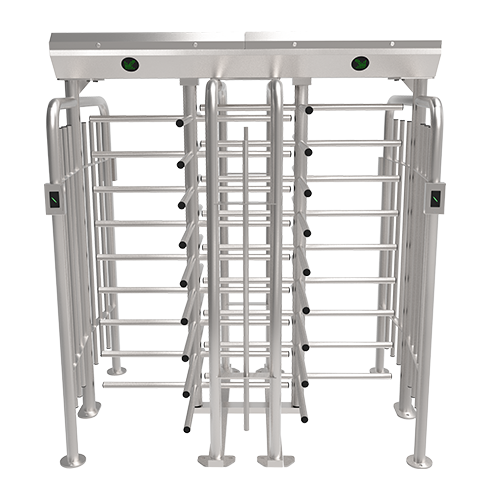

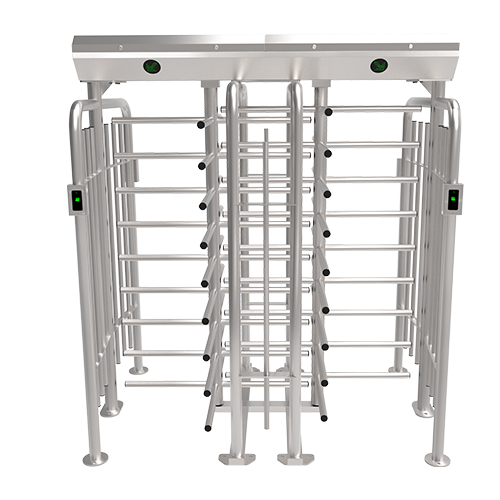

ZKTeco FHT2422D turnstile, full-height, SUS304 Stainless Steel, 600mm passage width, 60 persons/min.
The ZKTeco FHT2422D is a heavy-duty full-height turnstile constructed from premium SUS304 Stainless Steel, offering high throughput, anti-tailgating sensors, and emergency drop-arm function.
Product Overview
Engineered for high-volume pedestrian access control, the ZKTeco FHT2422D combines sleek architectural design with mechanical durability. Equipped with bi-directional LED indicator lights and infrared anti-pinch safety sensors, it prevents unauthorized tailgating while providing smooth pedestrian throughput.
Why Buy This Product
High Traffic Durability
Tested for 2 million mean cycles between failures (MCBF).
Emergency Evacuation Mode
Arm automatically drops or unlocks during power outage or fire alarm.
Best for These Applications
Stadiums, Metro & Commercial Lobbies
Ideal for controlling pedestrian entry in high-density facilities.
Key Advantages
- Anti-Tailgating Detection:Infrared beams detect unauthorized secondary entries and trigger immediate alarm.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 318 |
| Shipping Weight | 378 |
| Turnstile Type | full-height |
| Material | SUS304 Stainless Steel |
| Passage Width | 600mm |
| Throughput Speed | 60 persons/min |
| Opening Time | 1.5s |
| Working Environment | Indoor / Outdoor |
| Dimensions | 2100mm x 1200mm x 2220mm |
| Control Interface | Dry Contact / Relay Output / RS485 |
| Power Requirements | AC 110V/220V 50/60Hz |
| Mcbf | 2,000,000 Cycles |
| Barrier Material | SUS304 Stainless Steel / Acrylic / Tempered Glass |
| Led Indicator | Yes |
| Operating Temp | -28°C to 60°C |
| Ip Rating | IP54 |
| Certifications | CE, FCC, RoHS |
| Stock | 1 |
