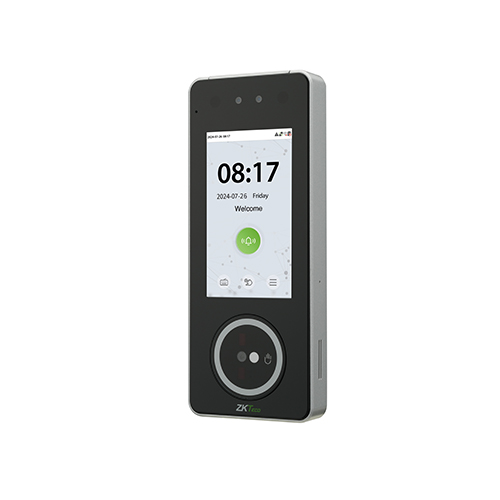

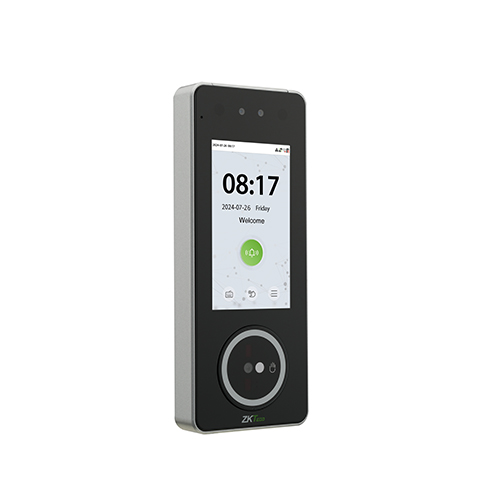

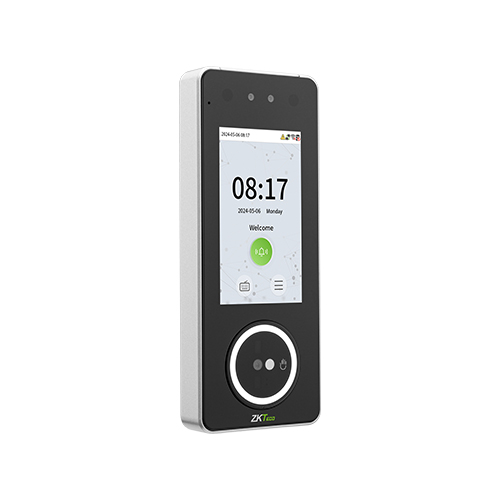

SpeedPalm-V5L Access Control Terminal & Reader
ZKTeco SpeedPalm-V5L Touchless Terminal, 5K Palm / 6K Face / 10K Card capacity, 5.0" Touchscreen, IP65, Near-IR Palm Scanner, TCP/IP & Wiegand.
The ZKTeco SpeedPalm-V5L is a revolutionary contactless access control terminal featuring near-infrared Palm Recognition (Palm Vein, Palm Print, and Palm Shape) alongside Visible Light Facial Recognition. Built on a 5.0-inch touchscreen platform, it provides touchless biometric security.
Product Overview
Combining palm biometrics with AI facial recognition, the SpeedPalm-V5L offers 5,000 palm template and 6,000 face template capacity. Its near-infrared sensor scans subcutaneous palm vein patterns and palm prints touchlessly from 0.17m to 0.5m away in < 0.35s, guaranteeing maximum hygiene and anti-spoofing accuracy.
Why Buy This Product
Near-Infrared Palm Vein Biometrics
Scans internal palm vein patterns touchlessly, providing near-unhackable biometric security.
Hybrid Palm & Face Recognition
Allows users to choose touchless palm or facial recognition for rapid entrance verification.
IP65 Weather Resistance
Rugged sealed casing built for outdoor perimeter gates and dusty industrial sites.
Best for These Applications
Hospitals, Cleanrooms & Labs
Ideal for sterile healthcare environments requiring 100% touchless palm vein access.
High-Security Vaults & Data Centers
Great for facilities needing ultra-secure palm vein verification.
Key Advantages
- Subcutaneous Palm Vein Detection: Near-infrared lighting captures unique palm vein structure beneath the skin, rendering spoofing impossible.
- Direct Lock Control: Activates electronic door locks and turnstile gates directly.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.47 |
| Shipping Weight | 0.72 |
| User Capacity | 5000 |
| Fingerprint Capacity | 0 |
| Face Capacity | 6000 |
| Palm Capacity | 5000 |
| Card Capacity | 10000 |
| Log Capacity | 200000 |
| Verification Speed | < 0.35s |
| Authentication Modes | Touchless Palm, Visible Light Face, Card, Password |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 5.0" Touchscreen LCD |
| Camera | Near-Infrared Palm Camera & 2MP Face WDR Camera |
| Operating System | Linux |
| Dimensions | 203mm x 91.93mm x 22.5mm |
| Power Requirements | DC 12V 3A |
| Operating Temp | -10°C to 45°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKPalm VX10.0 / ZKLiveFace V5.8 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Recognition Distance | Palm: 0.17m - 0.5m / Face: 0.3m - 2.0m |
| Supported Software | ZKBio Access, ZKBio CVAccess, ZKBioSecurity |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Switch Input |
| Sensor Type | Near-IR Palm Vein Sensor & Dual WDR Camera |

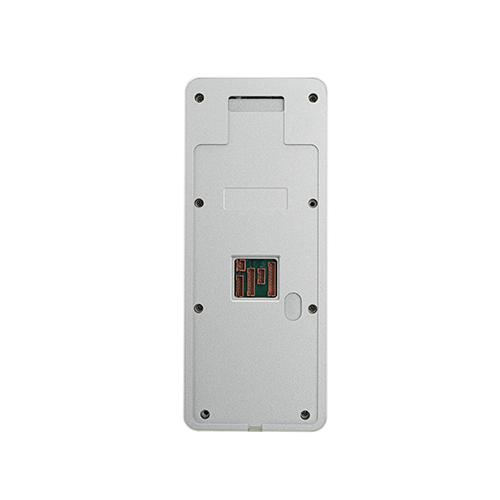

| Mounting Options | Wall Mount / Turnstile Mount Bracket |
| Credential Types | Palm Vein/Print, Face, 125kHz EM Card, PIN |
