Access Control Input Output Controller
COSEC ARC IO800, Access Control, Time Attendance, Matrix COSEC, 125kHz EM Proximity Card

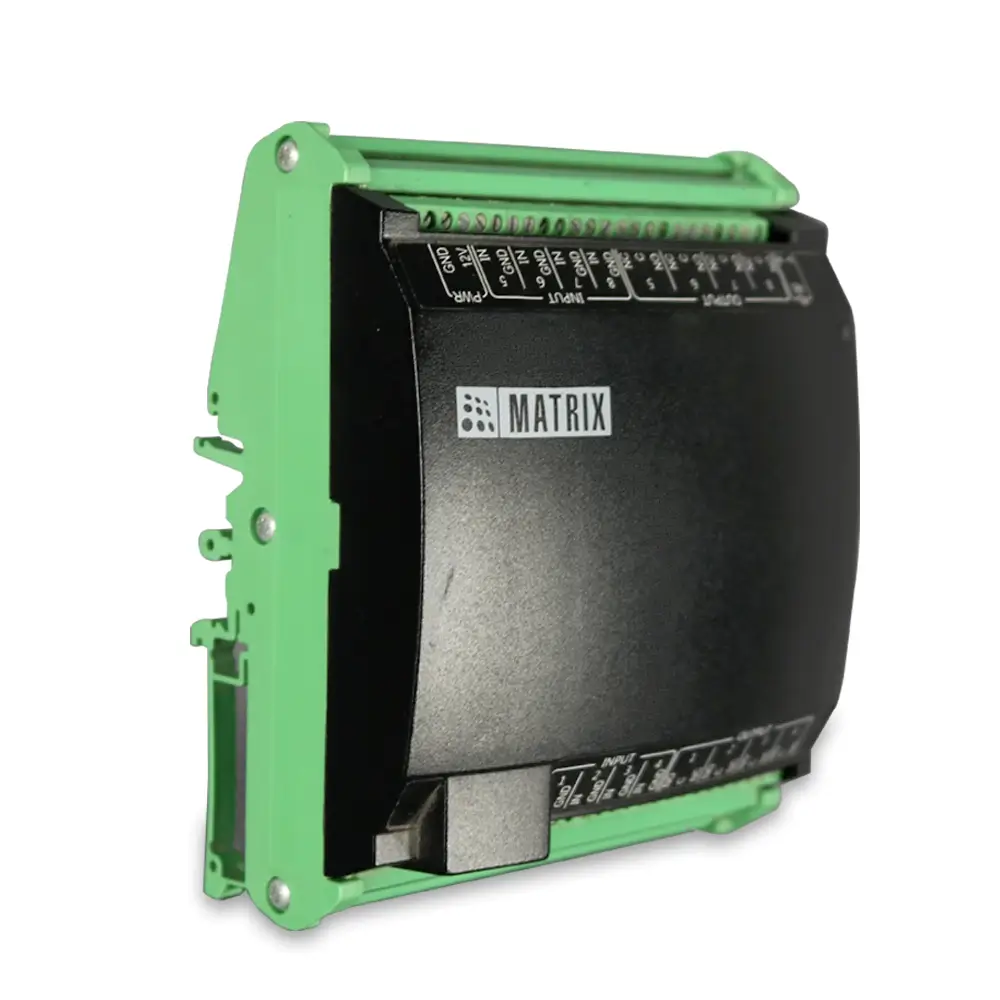

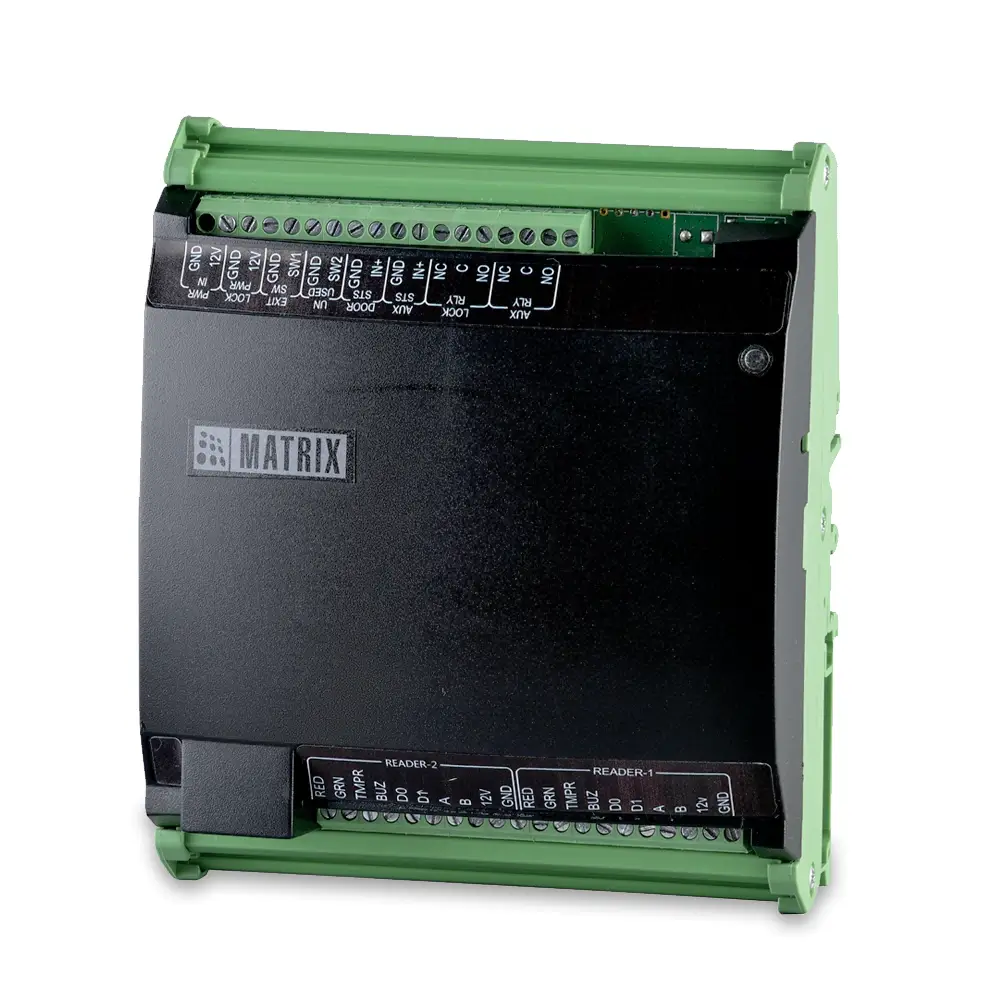

The Matrix COSEC ARC IO800 is an enterprise access control input/output controller featuring 8 optically isolated 4-state supervised inputs and 8 Form C SPDT relay outputs. Equipped with 100,000 event storage, Ethernet, RS-485, and PoE support.
Product Overview
The Matrix COSEC ARC IO800 is designed to expand the auxiliary input and relay output capacity of Matrix access control networks. It interfaces seamlessly with fire alarm systems, intrusion sensors, turnstiles, elevator control modules, and siren actuators. Featuring 8 4-state supervised inputs to detect open, short, normal, and tamper conditions alongside 8 heavy-duty SPDT relay outputs (28V DC @ 2A), the IO800 ensures intelligent automation across enterprise facilities over Ethernet and RS-485.
Why Buy This Product
8 Supervised Inputs
Monitors up to 8 sensor lines with 4-state supervised circuit protection.
8 Relay Outputs
Controls up to 8 auxiliary devices, lock relays, barriers, or alarm sirens.
PoE Connectivity
Simplifies wiring by powering the IO controller directly over standard Ethernet cables.
Best for These Applications
Commercial High-Rises
Ideal for integrating elevator floor control, fire alarm triggers, and perimeter barriers.
Industrial Facilities
Provides robust I/O expansion for machinery safety interlocks and access gates.
Secure Facilities
Monitors tamper and glass-break sensors across sensitive server rooms and vaults.
Key Advantages
- 4-State Input Logic: Detects line cut, short circuit, active input, and normal state for complete security.
- 100K Event Storage: Stores 100,000 local event records to prevent data loss during network dropouts.
- Flexible Bus Architecture: Integrates via TCP/IP Ethernet or daisy-chained RS-485 communication buses.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.45 |
| Shipping Weight | 0.65 |
| Log Capacity | 100000 |
| Event Buffer | 100000 |
| Communication Interfaces | Ethernet, RS-485 |
| Poe Standard | PoE (IEEE 802.3 af) |
| Auxiliary Inputs | 8 Optically Isolated 4-State Supervised Ports |
| Door Relay Output | 8 SPDT Form C Relays (28V DC @ 2A) |
| Power Requirements | 12V DC @ 2A Adaptor or PoE (IEEE 802.3 af) |
| Operating Temp | -10°C to +50°C |
| Operating Humidity | 5% to 95% RH Non-Condensing |
| Certifications | CE, FCC, RoHS |
