Compact Reader With Mifare Card Support
COSEC PATH RDCM, Access Control, Time Attendance, Matrix COSEC, 13.56MHz Mifare Classic Smart Card

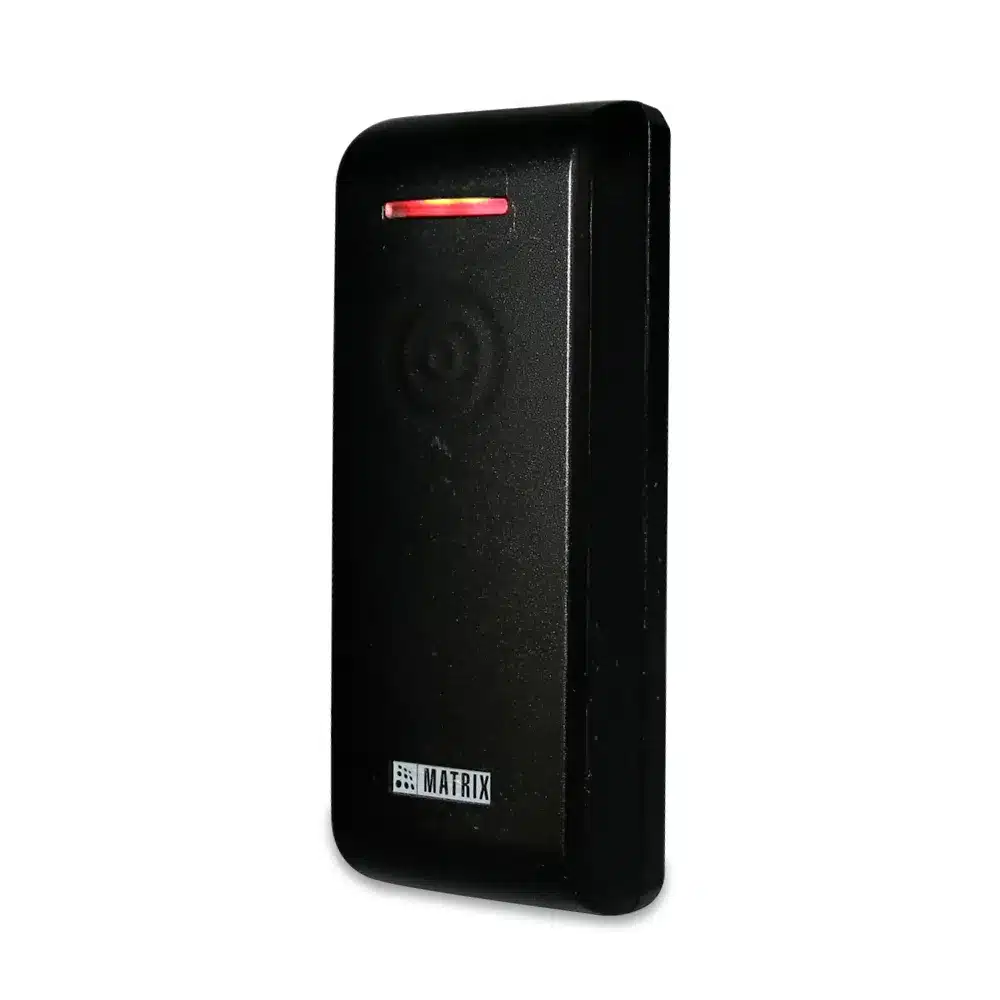

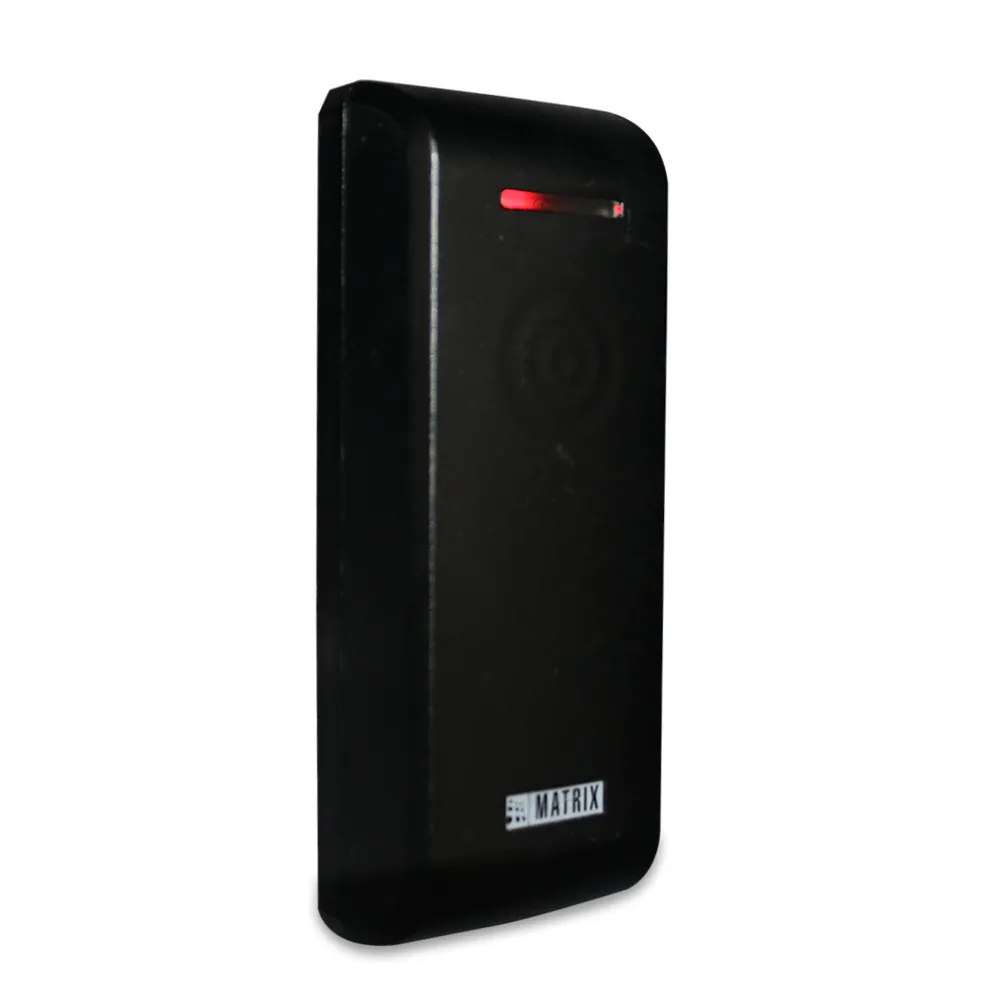

The Matrix Compact Reader With Mifare Card Support (COSEC PATH RDCM) is an ultra-compact mullion-mount reader supporting 13.56MHz Mifare Classic Smart Card smart cards, RS-485 and Wiegand outputs, and an IP65 Outdoor Weatherproof Design rating.
Product Overview
The Matrix COSEC PATH RDCM provides reliable credential verification in a sleek, narrow mullion form factor. Housed in an IP65 Outdoor Weatherproof Design enclosure, it easily mounts on aluminum door frames and outdoor entry points. Engineered for seamless integration with Matrix COSEC door controllers and 3rd-party panels, the COSEC PATH RDCM outputs card data via RS-485 or Wiegand while giving immediate visual feedback through a dual-color LED bar.
Why Buy This Product
Slim Mullion Profile
Fits narrow door frames where standard readers cannot be mounted.
IP65 Weatherproof
Resists moisture and dust for uninterrupted outdoor entryway performance.
Dual Output Interfaces
Connects effortlessly via RS-485 or Wiegand interface lines.
Best for These Applications
Glass Door Frames
Narrow design mounts cleanly on glass partition frames and metal door posts.
Outdoor Turnstiles
IP65 weatherproofing resists rain, direct sunlight, and industrial grime.
Interior Offices
Sleek modern styling matches modern commercial interior architecture.
Key Advantages
- Mullion Form Factor: Measures just 40mm wide for installation in tight architectural spaces.
- Versatile Interfaces: Compatible with Matrix door controllers and third-party access control units.
- Optical Tamper Sense: Instantly reports physical removal or enclosure tampering.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.45 |
| Shipping Weight | 0.65 |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Rfid Frequency | 13.56MHz (Mifare Classic Read/Write) |
| Communication Interfaces | RS-485, Wiegand |
| Operating Temp | -10°C to +50°C |
| Operating Humidity | 5% to 95% RH Non-Condensing |
| Power Requirements | 12V DC @ 0.25A |
| Certifications | CE, FCC, RoHS |
| Authentication Modes | Card |
