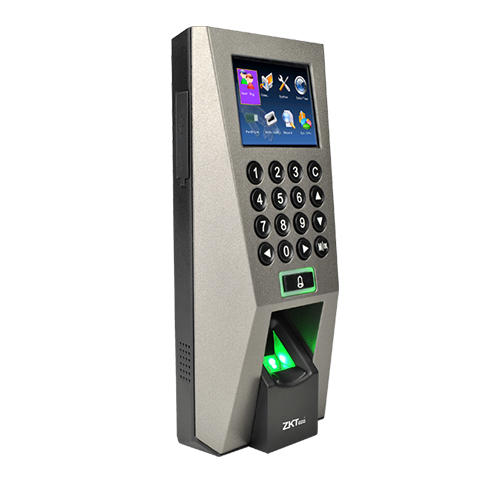

ZKTeco F18 Standalone Biometric Terminal, 3.5" TFT Color Screen, 3K FP / 5K Card capacity, TCP/IP, Wiegand & RS485.
The ZKTeco F18 is an industry-standard standalone biometric fingerprint reader featuring a 3.5-inch TFT color screen and tactile keypad. Renowned for its optical sensor reliability and robust door access control features, it is one of the most widely deployed access terminals worldwide.
Product Overview
Engineered for high-reliability door security, the ZKTeco F18 holds 3,000 fingerprint templates, 5,000 RFID cards, and 30,000 transaction logs. Its vibrant 3.5-inch color display simplifies user management and menu navigation, while its built-in relays directly control magnetic locks, electric strikes, exit buttons, and alarms.
Why Buy This Product
Field-Proven Global Reliability
Recognized as an industry benchmark for durable standalone biometric door access.
3.5-inch TFT Color Display
Large color screen enables straightforward user administration and status visualization.
Comprehensive Access Relays
Includes complete relay control for locks, exit switches, door sensors, and external alarms.
Best for These Applications
Commercial Buildings & Factories
Ideal for securing main office doors, server rooms, and warehouse entry points.
Multi-Door Controller Networks
Great as a biometric reader connected to ZKTeco inBio panels.
Key Advantages
- Scratch-Resistant Optical Sensor:Hardened glass prism withstands heavy daily usage in commercial environments.
- Flexible Operating Modes:Operates as a standalone door controller or as a Wiegand reader.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.42 |
| Shipping Weight | 0.68 |
| User Capacity | 3000 |
| Fingerprint Capacity | 3000 |
| Face Capacity | 0 |
| Card Capacity | 5000 |
| Log Capacity | 30000 |
| Verification Speed | < 0.5s |
| Authentication Modes | Fingerprint, Card, Password |
| Ip Rating | IP54 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 3.5" TFT Color Screen |
| Operating System | Linux |
| Dimensions | 183mm x 80mm x 42mm |
| Power Requirements | DC 12V 1.5A |
| Operating Temp | 0°C to 45°C |
| Operating Humidity | 20% to 80% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Button Input |
| Sensor Type | ZK Optical Fingerprint Sensor |
| Mounting Options | Wall Mount Bracket |
| Credential Types | Fingerprint, 125kHz EM Card, PIN |
| Stock | 9 |
