ZKTeco F22 Ultra-Thin Terminal, BioID Fingerprint + Wi-Fi & RFID, 3K FP / 5K Card, 2.4" TFT Touch Keypad, TCP/IP & Wiegand.

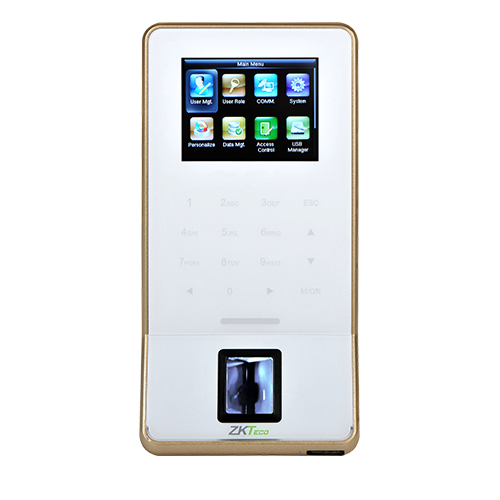

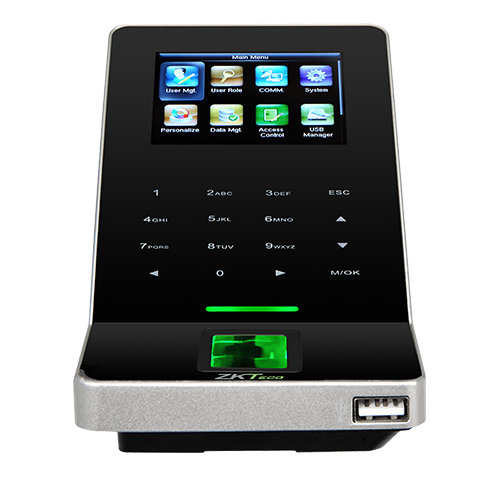

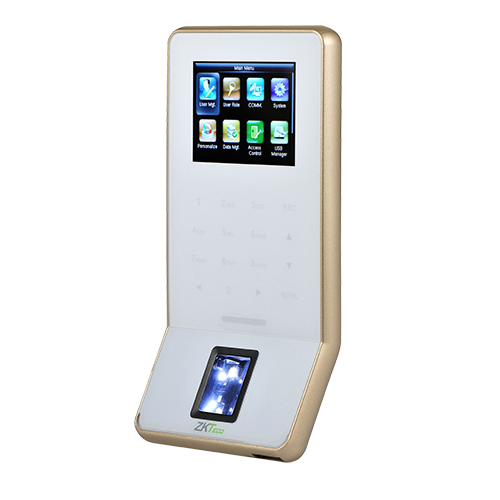

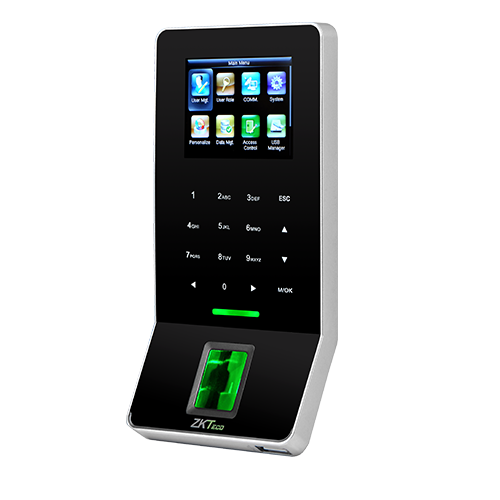

The ZKTeco F22 is an ultra-thin fingerprint time attendance and access control terminal equipped with a 2.4-inch TFT screen and touch keypad. Featuring BioID optical sensor technology and Wi-Fi connectivity, it delivers rapid fingerprint matching in an elegant slim casing.
Product Overview
Recognized globally for its ultra-slim profile, the ZKTeco F22 holds 3,000 fingerprint templates and 5,000 RFID cards. Its touch keypad and 2.4-inch screen provide a modern user experience, while its built-in Wi-Fi and TCP/IP ports simplify network deployment across corporate offices.
Why Buy This Product
Ultra-Thin Modern Aesthetic
Slim profile with capacitive touch keypad enhances interior office door decor.
Built-in Wi-Fi Wireless
Integrated Wi-Fi eliminates the need to run network Ethernet cables to every door.
BioID Advanced Optical Sensor
Accurately reads wet, dry, or rough fingerprints while detecting fake latex fingers.
Best for These Applications
Executive Offices & Server Rooms
Ideal for indoor doors requiring sleek aesthetics and reliable fingerprint security.
Commercial Office Suites
Great for facilities with Wi-Fi networks.
Key Advantages
- High Dry/Wet Fingerprint Tolerance:BioID optical glass sensor reads difficult prints easily.
- Dual Communication Ports:Connects via Wi-Fi, TCP/IP Ethernet, or RS485.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.26 |
| Shipping Weight | 0.46 |
| User Capacity | 3000 |
| Fingerprint Capacity | 3000 |
| Face Capacity | 0 |
| Card Capacity | 5000 |
| Log Capacity | 30000 |
| Verification Speed | < 0.5s |
| Authentication Modes | Fingerprint, Card, Password |
| Ip Rating | IP54 |
| Tamper Detection | Yes |

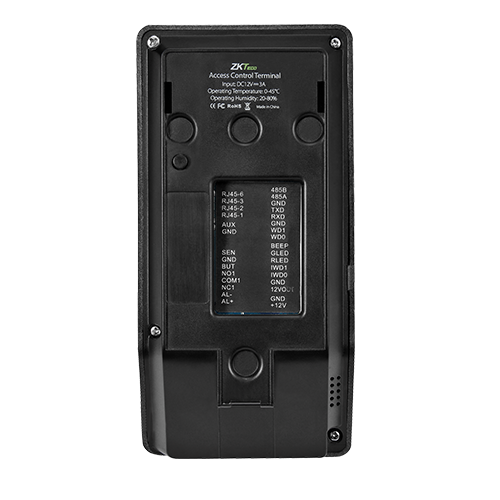

| Communication Interfaces | Wi-Fi, TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 2.4" TFT Screen |
| Operating System | Linux |
| Dimensions | 158.5mm x 78mm x 19.4mm |
| Power Requirements | DC 12V 1.5A |
| Operating Temp | 0°C to 45°C |
| Operating Humidity | 20% to 80% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Button Input |
| Sensor Type | BioID Optical Fingerprint Sensor |
| Mounting Options | Wall Mount Bracket |
| Credential Types | Fingerprint, 125kHz EM Card, Touch PIN |
| Stock | 8 |
