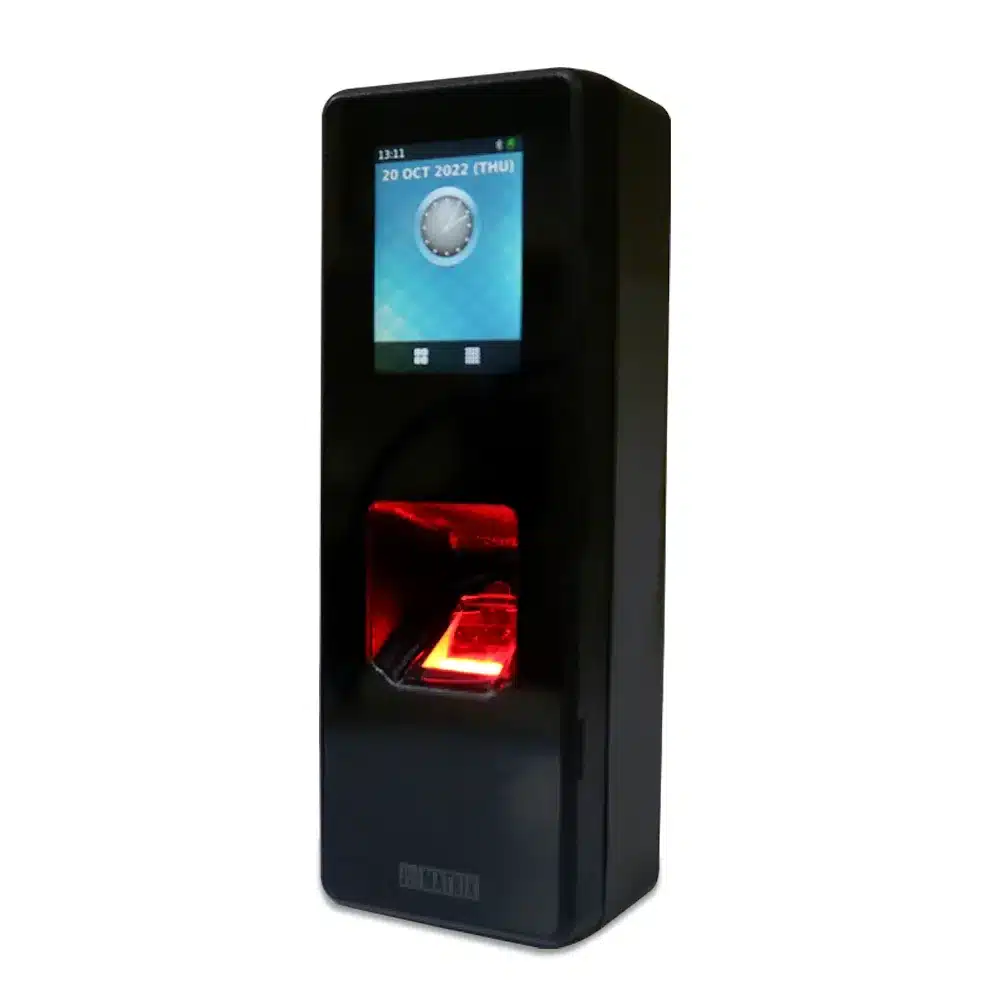

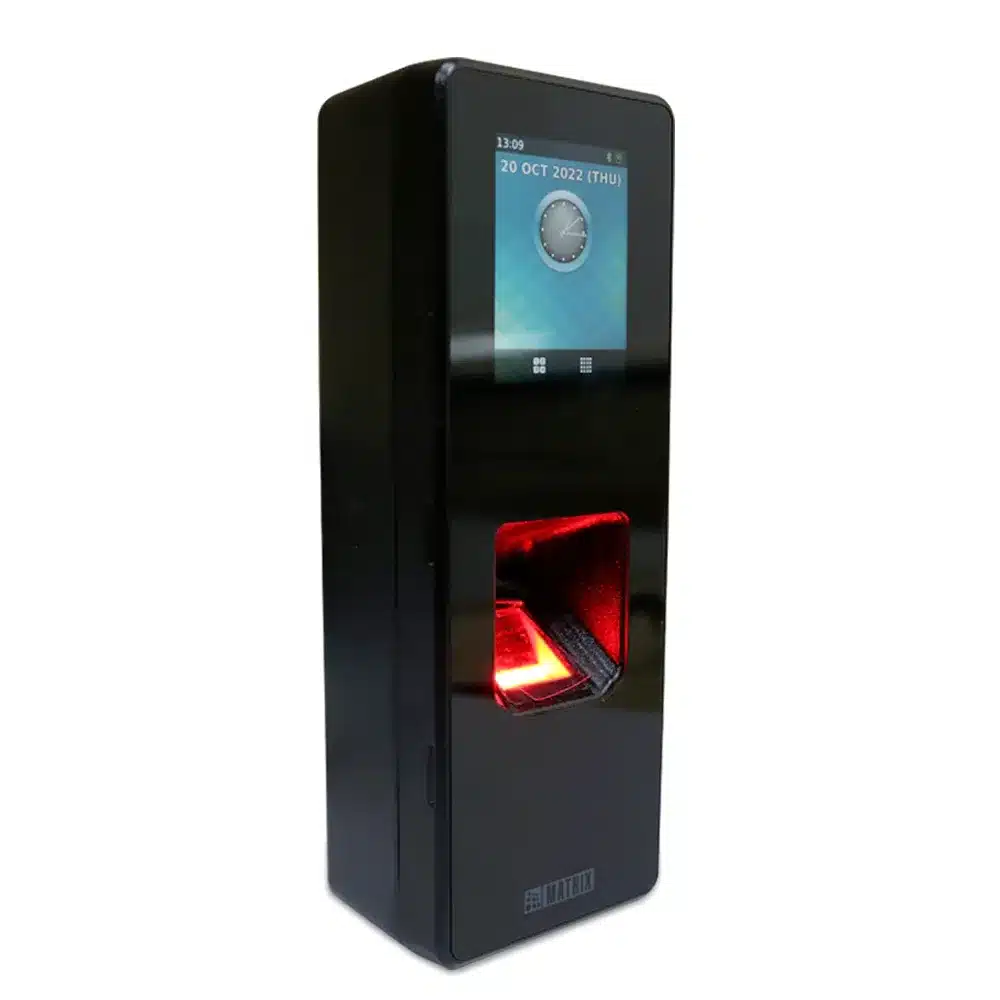

Fingerprint Pin Mifare Classic Card And Bluetooth Based Reader
COSEC ATOM RD300SFM, Access Control, Time Attendance, Matrix COSEC, 13.56MHz Mifare Classic Smart Card
The Matrix Fingerprint Pin Mifare Classic Card And Bluetooth Based Reader (COSEC ATOM RD300SFM) is a compact, high-security access control slave reader featuring 13.56MHz Mifare Classic Smart Card card reading, Bluetooth Low Energy (BLE) mobile access, Wiegand & RS-485 communication, and an IP65 Weatherproof & IK08 Vandal Resistant rating.
Product Overview
The Matrix COSEC ATOM RD300SFM delivers versatile credential verification in an ultra-compact form factor. Built with an IP65 Weatherproof & IK08 Vandal Resistant enclosure, it is engineered for heavy outdoor usage, withstands physical impacts, and resists weather elements. Designed to connect directly to door controllers via RS-485 or Wiegand protocols, the COSEC ATOM RD300SFM enables multi-factor authentication using 13.56MHz Mifare Classic Smart Card RFID smart cards and smartphone Bluetooth credentials with instant visual and audible feedback.
Why Buy This Product
IK08 Vandal-Proof
Resists heavy impacts and tampering in unmonitored outdoor entryways.
BLE Mobile Access
Allows users to gain access effortlessly via Bluetooth mobile credentials.
Dual Protocol Output
Interfaces easily with Matrix controllers or 3rd-party panels via RS-485 & Wiegand.
Best for These Applications
Office Entrance Doors
Compact footprint fits cleanly on aluminum door frames and glass mullions.
Perimeter Gates
IP65 weatherproofing guarantees reliable performance in rain, dust, and humidity.
Restricted Zones
Provides secure secondary reader verification for interior turnstiles and server rooms.
Key Advantages
- Ultra-Compact Footprint: Slim profile designed specifically for standard door frame and mullion mounting.
- Multi-Technology Reader: Supports 13.56MHz Mifare Classic Smart Card smart cards and mobile Bluetooth credentials simultaneously.
- Tamper Supervised: Instant optical tamper notification prevents physical reader bypass.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.45 |
| Shipping Weight | 0.65 |
| Ip Rating | IP65 |
| Ik Rating | IK08 |
| Tamper Detection | Yes |
| Rfid Frequency | 13.56MHz (Mifare Classic Read/Write) |
| Communication Interfaces | RS-485, Wiegand |
| Ble Support | Yes |
| Operating Temp | -10°C to +50°C |
| Operating Humidity | 5% to 95% RH Non-Condensing |
| Power Requirements | 12V DC @ 0.25A |
| Certifications | CE, FCC, RoHS |
| Sensor Type | Optical Fingerprint Sensor |
| Authentication Modes | Fingerprint, Card, BLE |
