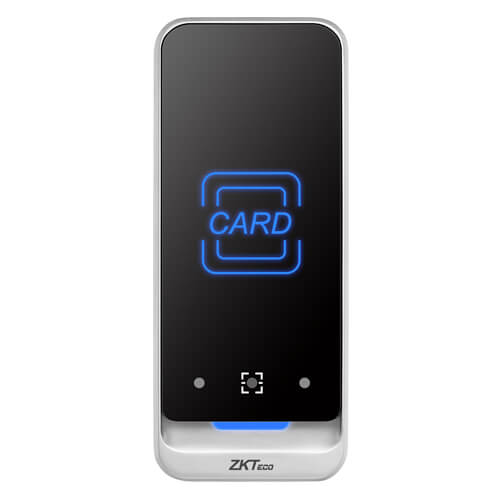

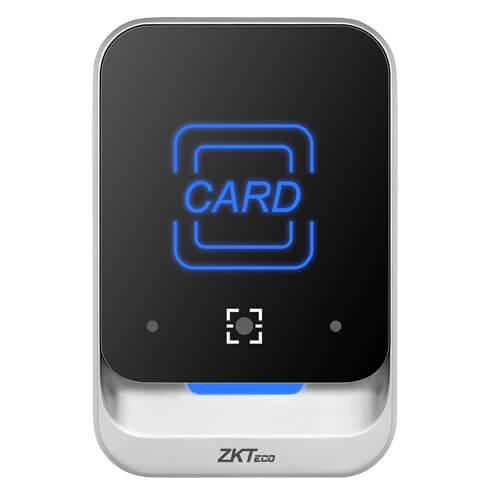

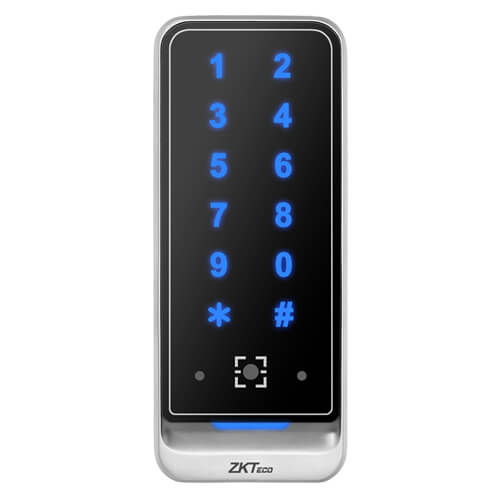

QR600 Series Access Control Terminal & Reader
ZKTeco QR600 Metal Outdoor QR & RFID Reader, IP65 Zinc Alloy Frame, Mobile Dynamic QR Scanner, Wiegand & RS485 Output.
The ZKTeco QR600 Series is a heavy-duty metal-framed outdoor QR Code and RFID card reader featuring dual Wiegand and RS485 communication outputs. Built with an IP65 waterproof metal housing, it reads printed or mobile phone-displayed QR codes instantaneously.
Product Overview
Engineered for high-volume pedestrian access control, the ZKTeco QR600 Series combines a rugged zinc alloy metal frame with a high-speed optical QR code decoding engine. It decodes dynamic encrypted QR codes generated by ZKBio Access mobile apps as well as static QR pass codes, making it an ideal reader for visitor management and turnstile barriers.
Why Buy This Product
Zinc Alloy Metal Construction
Rugged metallic enclosure withstands heavy physical impacts and outdoor weather exposure.
Dynamic Mobile QR Security
Validates encrypted time-varying QR codes from smartphone screens to prevent code sharing.
Wiegand & RS485 Flexibility
Outputs standard 26/34-bit Wiegand data to connect seamlessly with any access controller.
Best for These Applications
Turnstile Banks & Visitor Entry Gates
Ideal for validating visitor mobile QR passes at building lobbies and stadium turnstiles.
Commercial Building Entrance Barriers
Great for high-throughput mobile pass validation.
Key Advantages
- High-Speed Screen Decoding: Scans mobile phone displays instantaneously even under direct sunlight or glare.
- Vandal-Resistant Metal Frame: Solid metal housing protects optical glass from mechanical damage.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.25 |
| Shipping Weight | 0.4 |
| User Capacity | 0 |
| Fingerprint Capacity | 0 |
| Face Capacity | 0 |
| Card Capacity | 0 |
| Log Capacity | 0 |
| Verification Speed | < 0.2s |
| Authentication Modes | QR Code, Card |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | Wiegand Output, RS485 |
| Camera | Optical QR Scanner Engine |
| Operating System | Firmware |
| Dimensions | 120mm x 80mm x 25mm |
| Power Requirements | DC 12V 150mA |
| Operating Temp | -20°C to 60°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Recognition Distance | 0.05m - 0.3m |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Wiegand Interface | Wiegand 26-bit / 34-bit Output |
| Sensor Type | High-Speed Optical QR Engine & RFID Antenna |
| Mounting Options | Wall / Turnstile Surface Mount |
| Credential Types | Dynamic/Static QR Code, 125kHz EM / 13.56MHz Mifare Card |
