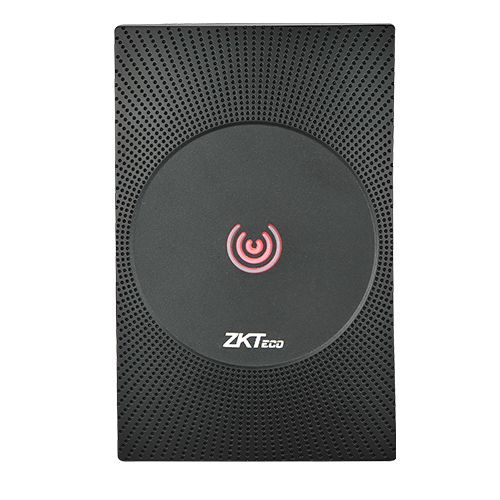

ZKTeco KR600 Outdoor RFID Slave Reader, IP65 Epoxy-Potted Casing, 125kHz/13.56MHz Card, 100mm Read Range, Wiegand Output.
The ZKTeco KR600 is a classic outdoor Wiegand RFID proximity card reader featuring an IP65 waterproof epoxy-potted casing. Designed for reliable card badge access control, it reads 125kHz EM or 13.56MHz Mifare cards and outputs standard Wiegand data to access controllers.
Product Overview
Recognized for its field durability, the ZKTeco KR600 features an epoxy-potted IP65 sealed housing that withstands harsh weather conditions, heavy rain, and extreme temperature fluctuations. Its 100mm read range and sub-0.1s response speed make it an ideal card reader for access control panels.
Why Buy This Product
Fully Epoxy-Potted IP65 Build
Solid epoxy potting ensures 100% waterproof protection against heavy rain and moisture.
Universal Wiegand Output
Connects to any access control controller via standard 26/34-bit Wiegand wiring.
Long 100mm Read Range
Reads RFID proximity badges quickly from up to 10cm away.
Best for These Applications
Exterior Access Gates & Parking Barriers
Ideal for outdoor gate posts exposed to direct rain and sunlight.
Commercial Office Doors
Great as standard RFID readers for inBio or C3 panels.
Key Advantages
- Heavy-Duty Epoxy Encapsulation:Internal electronics are encased in solid epoxy, preventing corrosion and mechanical vibration damage.
- Reverse Polarity Circuit Safeguard:Prevents reader damage during installation wiring errors.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.13 |
| Shipping Weight | 0.24 |
| User Capacity | 0 |
| Fingerprint Capacity | 0 |
| Face Capacity | 0 |
| Card Capacity | 0 |
| Log Capacity | 0 |
| Verification Speed | < 0.1s |
| Authentication Modes | Card |
| Ip Rating | IP65 |
| Tamper Detection | No |
| Communication Interfaces | Wiegand Output |
| Operating System | Firmware |
| Dimensions | 116mm x 75mm x 17.3mm |
| Power Requirements | DC 6V - 14V / Max 70mA |
| Operating Temp | -20°C to 65°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Wiegand Interface | Wiegand 26-bit / 34-bit Output |
| Sensor Type | RFID Proximity Antenna Coil |
| Mounting Options | Wall / Gate Post Surface Mount |
| Credential Types | 125kHz EM Card, 13.56MHz Mifare Card |
| Stock | 1 |
