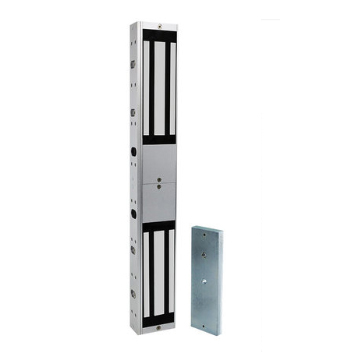

S4A EL-1200DS Double Door 500KG Magnetic Lock with LED & Lock Sensor

Name: S4A EL-1200DS Double Door 500KG Magnetic Lock with LED & Lock Sensor
Brand: S4A
SKU: EL-1200DS
Price: 24360 KES
Availability: InStock

star star star star star

0.0 (0 reviews)

500KG x 2 double door electromagnetic lock, built-in LED, lock sensors, 12V/24VDC.

The S4A EL-1200DS is a double-door electromagnetic lock delivering 500KG x 2 (1200LBS x 2) holding force, equipped with built-in LED indicators and lock status sensors.

verified 500KG x 2 / 1200LBS x 2 verified LED & Lock Sensor verified 12V/24VDC

KES 24,360.00 KES 28,500.00

local_offer Save KES 4,140 today

1 Year Manufacturer Warranty

Variants

EL-1200DS 500KG x 2 / 1200LBS x 2 · LED & Lock Sensor · 12V/24VDC EL-1200D 500KG x 2 / 1200LBS x 2 · 12V/24VDC · Double Swing Doors EL-1200DST 500KG x 2 / 1200LBS x 2 · LED, Sensor & Timer Delay · 12V/24VDC

Product Overview

The S4A EL-1200DS is a professional double door electromagnetic lock providing 500KG x 2 (1200LBS x 2) holding force. It features a built-in LED status indicator and lock status feedback sensors. Ideal for heavy commercial double doors.

Technical Specifications

Parameter	Specification
Product Weight	9
Shipping Weight	9.6
Lock Type	double
Holding Force Kg	1000
Holding Force Lbs	2400
Holding Force Text	500KG x 2 (1200Lbs x 2)
Lock Dimensions	530Lx72Wx40H(mm)
Armature Dimensions	185Lx60Wx15H(mm)*2
Operating Voltage	DC12V (Adjustable DC24V)
Current Draw	12V/500mA x 2, 24V/250mA x 2
Signal Output	Lock status feedback x 2
Led Indicator	Yes
Door Status Sensor	Yes
Time Delay	None
Suitable For	Wooden door, Glass door, Metal door, Fireproof door
Bracket Compatibility	L-Bracket, U-Bracket, ZL-Bracket
Operating Temperature	-20°C ~ 55°C (-4°F ~ 131°F)
Surface Temperature	≤ 20°C
Suitable Humidity	0~90% (non-condensing)
Shell Material	Anodized aluminum
Magnetic Material	Zinc
Armature Material	Zinc
