500KG x 2 double door electromagnetic lock, 12V/24VDC input, anodized aluminum casing.

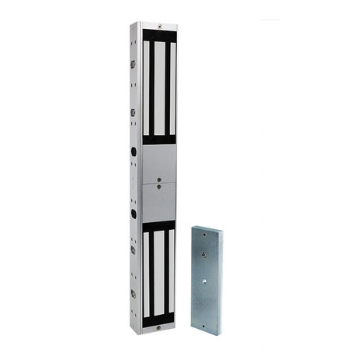

The S4A EL-1200D is a double-door surface mounted electromagnetic lock delivering 500KG x 2 (1200LBS x 2) holding force. Engineered for heavy double doors in warehouses and corporate offices.
verified500KG x 2 / 1200LBS x 2verified12V/24VDCverifiedDouble Swing Doors
KES 23,200.00KES 27,000.00
local_offerSave KES 3,800 today
KES 0(KES 23,200 × 1)
local_offerTotal saved: KES 0
1 Year Manufacturer Warranty
Variants
EL-1200D500KG x 2 / 1200LBS x 2 · 12V/24VDC · Double Swing DoorsEL-1200DS500KG x 2 / 1200LBS x 2 · LED & Lock Sensor · 12V/24VDCEL-1200DST500KG x 2 / 1200LBS x 2 · LED, Sensor & Timer Delay · 12V/24VDC
Product Overview
The S4A EL-1200D is a robust double door electromagnetic lock offering 500KG x 2 (1200LBS x 2) holding force. Running on 12VDC or 24VDC, it is fail-safe and designed for double swing doors made of wood, glass, metal, or fireproof material. This basic model is configured without indicator lights or signal sensors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 9 |
| Shipping Weight | 9.6 |
| Lock Type | double |
| Holding Force Kg | 1000 |
| Holding Force Lbs | 2400 |
| Holding Force Text | 500KG x 2 (1200Lbs x 2) |
| Lock Dimensions | 530Lx72Wx40H(mm) |
| Armature Dimensions | 185Lx60Wx15H(mm)*2 |
| Operating Voltage | DC12V (Adjustable DC24V) |
| Current Draw | 12V/500mA x 2, 24V/250mA x 2 |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 5 |
