S4A EL-600DST Double Door 280KG Magnetic Lock with Timer Delay
starstarstarstarstar
0.0(0 reviews)280KG x 2 double door electromagnetic lock, built-in LED, lock sensors, adjustable timer delay.
The S4A EL-600DST is a double-door electromagnetic lock delivering 280KG x 2 (600LBS x 2) holding force, featuring built-in LED indicators, status sensors, and adjustable timer delay.
verified280KG x 2 / 600LBS x 2verifiedLED, Sensor & Timer Delayverified12V/24VDC
KES 15,660.00KES 18,000.00
local_offerSave KES 2,340 today
KES 0(KES 15,660 × 1)
local_offerTotal saved: KES 0
1 Year Manufacturer Warranty
Variants
EL-600DST280KG x 2 / 600LBS x 2 · LED, Sensor & Timer Delay · 12V/24VDCEL-600D280KG x 2 / 600LBS x 2 · 12V/24VDC · Double Swing DoorsEL-600DS280KG x 2 / 600LBS x 2 · LED & Lock Sensor · 12V/24VDC
Product Overview

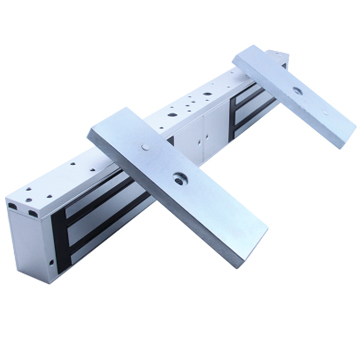

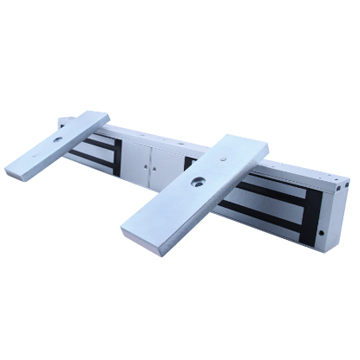

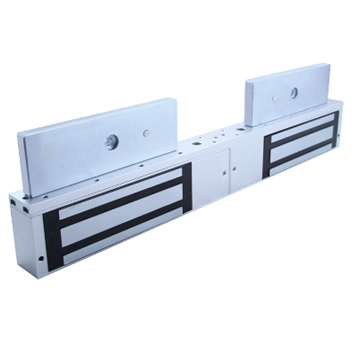

The S4A EL-600DST is a premium double door electromagnetic lock providing 280KG x 2 (600LBS x 2) holding force. It features a built-in LED status indicator, lock status feedback sensor, and adjustable timer delay. Perfect for double doors requiring delay exit control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 4 |
| Shipping Weight | 4.4 |
| Lock Type | double |
| Holding Force Kg | 560 |
| Holding Force Lbs | 1200 |
| Holding Force Text | 280KG x 2 (600Lbs x 2) |
| Lock Dimensions | 500Lx48.5Wx25H(mm) |
| Armature Dimensions | 180Lx38Wx11H(mm)*2 |
| Operating Voltage | DC12V (Adjustable DC24V) |
| Current Draw | 12V/500mA x 2, 24V/250mA x 2 |
| Signal Output | Lock status feedback x 2 |
| Led Indicator | Yes |
| Door Status Sensor | Yes |
| Time Delay | Yes (Adjustable) |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 1 |
