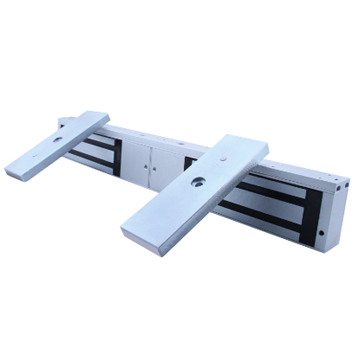

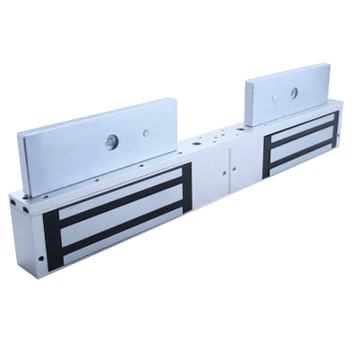

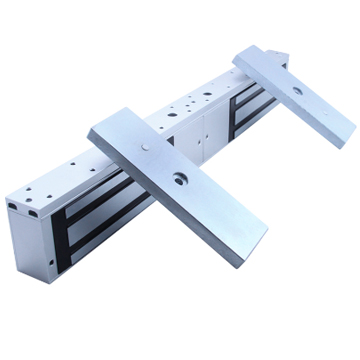

280KG x 2 double door electromagnetic lock, 12V/24VDC input, anodized aluminum casing.
The S4A EL-600D is a double-door surface mounted electromagnetic lock delivering 280KG x 2 (600LBS x 2) holding force. Perfect for double doors in corporate offices.
verified
280KG x 2 / 600LBS x 2
verified
12V/24VDC
verified
Double Swing Doors
KES 13,340.00
KES 15,500.00
local_offer
Save KES 2,160
today
KES 0
(KES 13,340 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Variants
EL-600D 280KG x 2 / 600LBS x 2 · 12V/24VDC · Double Swing Doors EL-600DS 280KG x 2 / 600LBS x 2 · LED & Lock Sensor · 12V/24VDC EL-600DST 280KG x 2 / 600LBS x 2 · LED, Sensor & Timer Delay · 12V/24VDC
Product Overview
The S4A EL-600D is a robust double door electromagnetic lock offering 280KG x 2 (600LBS x 2) holding force. Running on 12VDC or 24VDC, it is fail-safe and designed for double swing doors made of wood, glass, metal, or fireproof material. This basic model is configured without indicator lights or signal sensors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 3.8 |
| Shipping Weight | 4.2 |
| Lock Type | double |
| Holding Force Kg | 560 |
| Holding Force Lbs | 1200 |
| Holding Force Text | 280KG x 2 (600Lbs x 2) |
| Lock Dimensions | 500Lx48.5Wx25H(mm) |
| Armature Dimensions | 180Lx38Wx11H(mm)*2 |
| Operating Voltage | DC12V (Adjustable DC24V) |
| Current Draw | 12V/500mA x 2, 24V/250mA x 2 |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
