In Stock
S4A: EL-200S

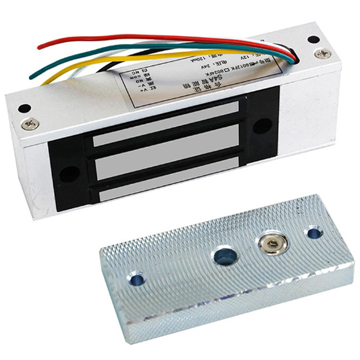

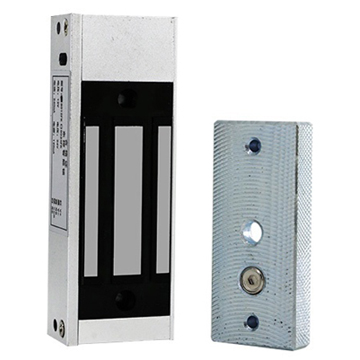

S4A EL-200S Mini 70KG Magnetic Electromagnetic Door Lock
star star star star star
0.0
(0 reviews)
70KG mini electromagnetic lock, 12V/24VDC support, aluminum alloy casing.
The S4A EL-200S is a mini electromagnetic lock offering 70KG (150LBS) of holding force, designed for wooden/metal drawers, sliding doors, and cabinets.
verified
70KG / 150LBS
verified
12VDC/24VDC
verified
Surface Mount / Cabinet
KES 5,220.00
KES 6,200.00
local_offer
Save KES 980
today
KES 0
(KES 5,220 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Product Overview
The S4A EL-200S is a surface-mounted mini electromagnetic lock. Providing a holding force of 70KG (150LBS), it secures file cabinets, drawers, and cabinet doors. Designed with reverse breakthrough protection and a fail-safe configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.6 |
| Shipping Weight | 0.8 |
| Lock Type | cabinet |
| Holding Force Kg | 70 |
| Holding Force Lbs | 150 |
| Holding Force Text | 70KG (150LBS) |
| Lock Dimensions | 110Lx37Wx24H(mm) |
| Armature Dimensions | 74Lx33Wx11H(mm) |
| Operating Voltage | 12VDC (Option 24VDC) |
| Current Draw | 12V/160mA, 24V/240mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | File Cabinet, Display Cabinet, Drawers, Sliding Doors |
| Bracket Compatibility | Z-Bracket |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Aluminum alloy |
| Magnetic Material | Electroplated zinc |
| Armature Material | Electroplated zinc |
