60KG hanging door mini electromagnetic lock, 12V/24VDC support, anodized aluminum shell.

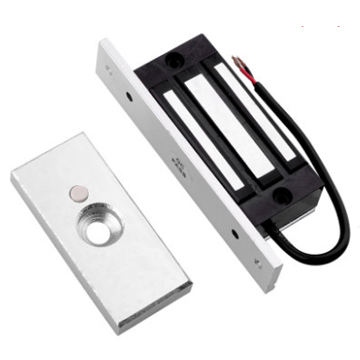

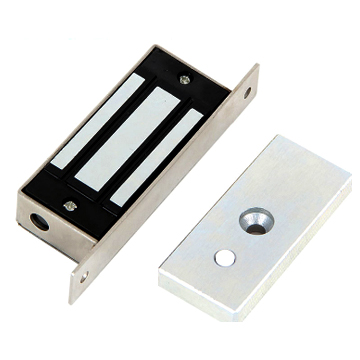

The S4A EL-H100 is a hanging-style mini electromagnetic lock designed for showcase, cabinet doors, and small frames. It provides a reliable 60KG (100LBS) holding force with low current draw.
verified60KG / 100LBSverified12VDC/24VDCverifiedHanging Door / Cabinet
KES 4,640.00KES 5,500.00
local_offerSave KES 860 today
KES 0(KES 4,640 × 1)
local_offerTotal saved: KES 0
1 Year Manufacturer Warranty
Product Overview
The S4A EL-H100 is a Hanging Door mini electromagnetic lock designed for cabinets, display cabinets, and small doors. Delivering a 60KG (100LBS) holding force, this lock features simple hanging installation. It operates in a fail-safe configuration and consumes very low current.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.5 |
| Shipping Weight | 0.7 |
| Lock Type | cabinet |
| Holding Force Kg | 60 |
| Holding Force Lbs | 100 |
| Holding Force Text | 60KG (100LBS) |
| Lock Dimensions | 80Lx33Wx19H(mm) |
| Armature Dimensions | 80Lx33Wx19H(mm) |
| Operating Voltage | 12VDC (Option 24VDC) |
| Current Draw | 12V/160mA, 24V/80mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | File Cabinet, Display Cabinet, Showcases |
| Bracket Compatibility | Z-Bracket |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 4 |
