S4A: EM-350TS

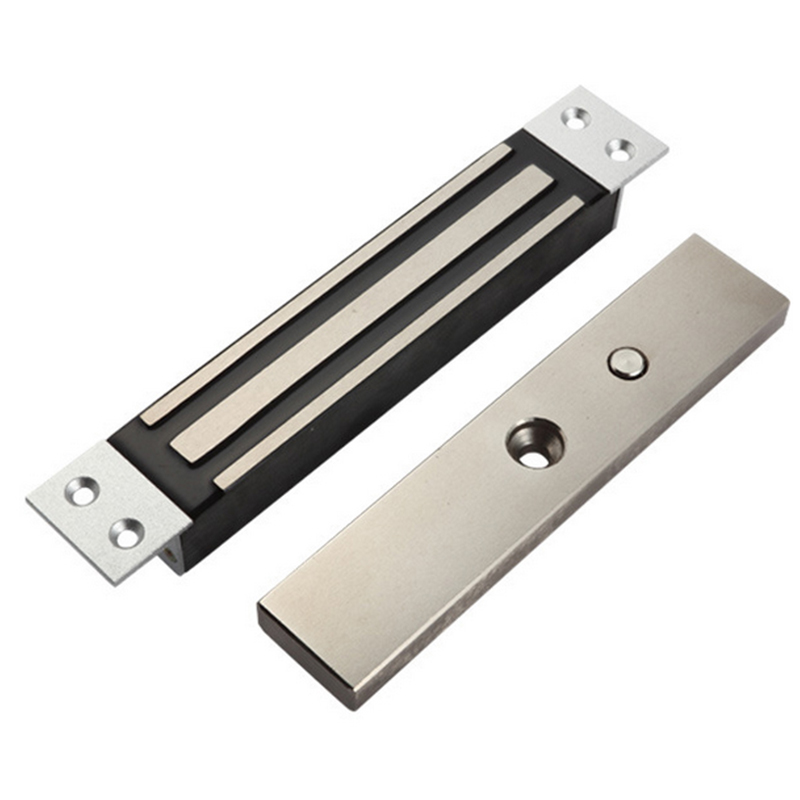

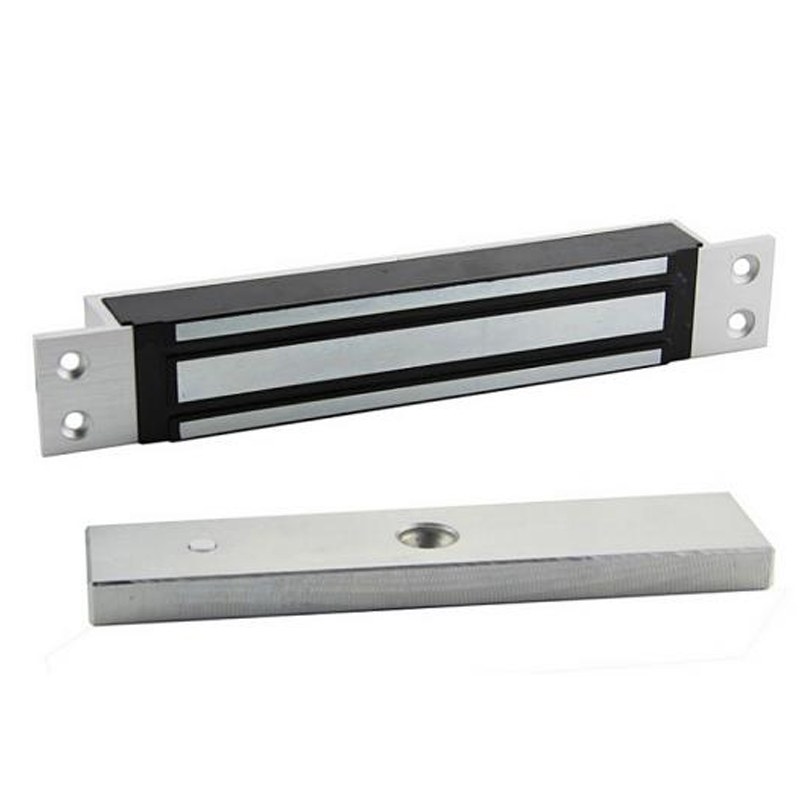

S4A EM-350TS Mortise Mount 180KG Magnetic Lock with Signal Output
star star star star star
0.0
(0 reviews)
180KG embedded (mortise) electromagnetic lock with lock status feedback, 12V/24VDC.
The S4A EM-350TS is a 180KG (350LBS) mortise-mount (embedded) electromagnetic lock equipped with a door position status feedback signal output.
verified
180KG / 350LBS
verified
Embedded / Status Feedback
verified
12V/24VDC
KES 6,960.00
KES 8,000.00
local_offer
Save KES 1,040
today
KES 0
(KES 6,960 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Variants
EM-350TS 180KG / 350LBS · Embedded / Status Feedback · 12V/24VDC EM-350T 180KG / 350LBS · Embedded / Mortise Mount · 12V/24VDC
Product Overview
The S4A EM-350TS is a flush-mount mortise electromagnetic lock designed for wood, glass, metal, and fireproof doors. It provides a holding force of 180KG (350LBS), hiding inside the door frame or header for clean architectural lines. Equipped with a lock status sensor relay output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 1.5 |
| Shipping Weight | 1.7 |
| Lock Type | other |
| Holding Force Kg | 180 |
| Holding Force Lbs | 350 |
| Holding Force Text | 180KG (350LBS) |
| Lock Dimensions | 194Lx34Wx23H(mm) |
| Armature Dimensions | 132Lx34Wx12H(mm) |
| Operating Voltage | DC12V or DC24V |
| Current Draw | 12V/480mA, 24V/240mA |
| Signal Output | Lock status feedback |
| Led Indicator | No |
| Door Status Sensor | Yes |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
