180KG embedded (mortise) electromagnetic lock, flush mount, 12V/24VDC.

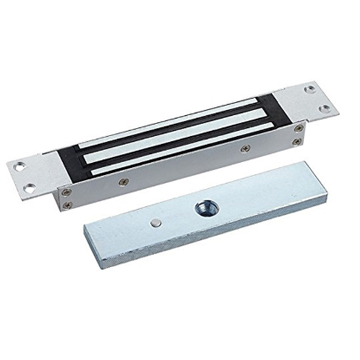

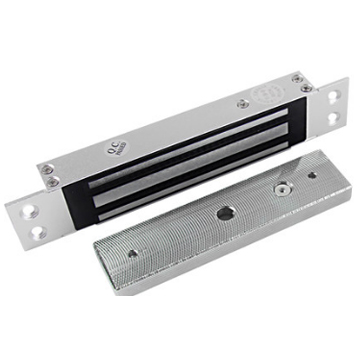

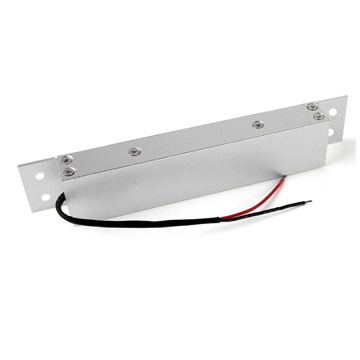

The S4A EM-350T is a mortise-mount (embedded) electromagnetic lock offering 180KG (350LBS) holding force. Designed for flush concealed installation on single swing doors.
verified
180KG / 350LBS
verified
Embedded / Mortise Mount
verified
12V/24VDC
KES 6,380.00
KES 7,500.00
local_offer
Save KES 1,120
today
KES 0
(KES 6,380 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Variants
EM-350T 180KG / 350LBS · Embedded / Mortise Mount · 12V/24VDC EM-350TS 180KG / 350LBS · Embedded / Status Feedback · 12V/24VDC
Product Overview
The S4A EM-350T is a flush-mount mortise electromagnetic lock designed for wood, glass, metal, and fireproof doors. It provides a holding force of 180KG (350LBS), hiding inside the door frame or header for clean architectural lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 1.02 |
| Shipping Weight | 1.2 |
| Lock Type | other |
| Holding Force Kg | 180 |
| Holding Force Lbs | 350 |
| Holding Force Text | 180KG (350LBS) |
| Lock Dimensions | 194Lx34Wx23H(mm) |
| Armature Dimensions | 132Lx34Wx12H(mm) |
| Operating Voltage | DC12V (Option DC24V) |
| Current Draw | 12V/400mA, 24V/200mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
