S4A: EM-800TS

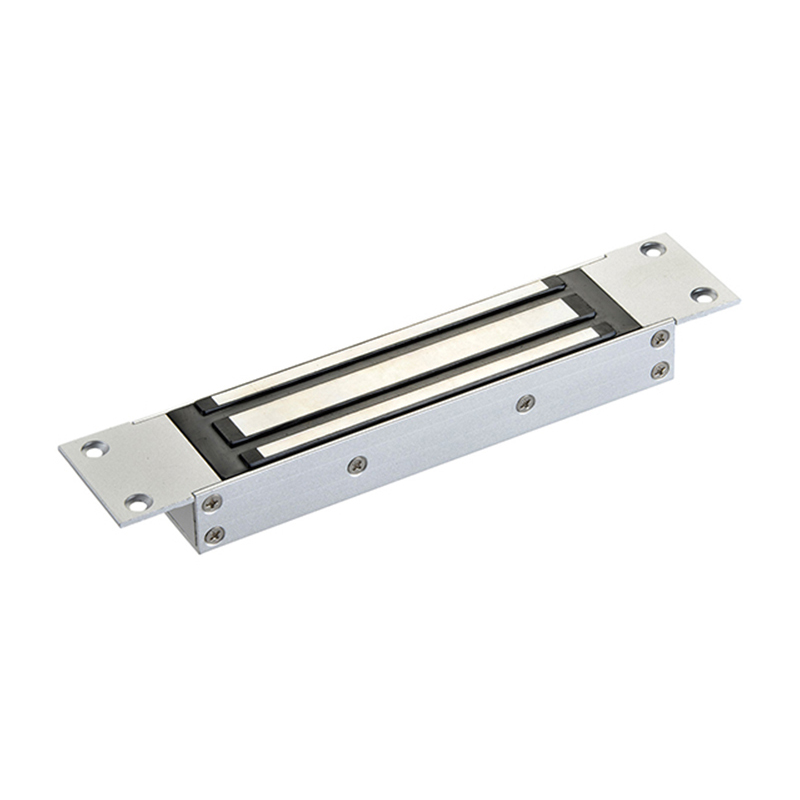

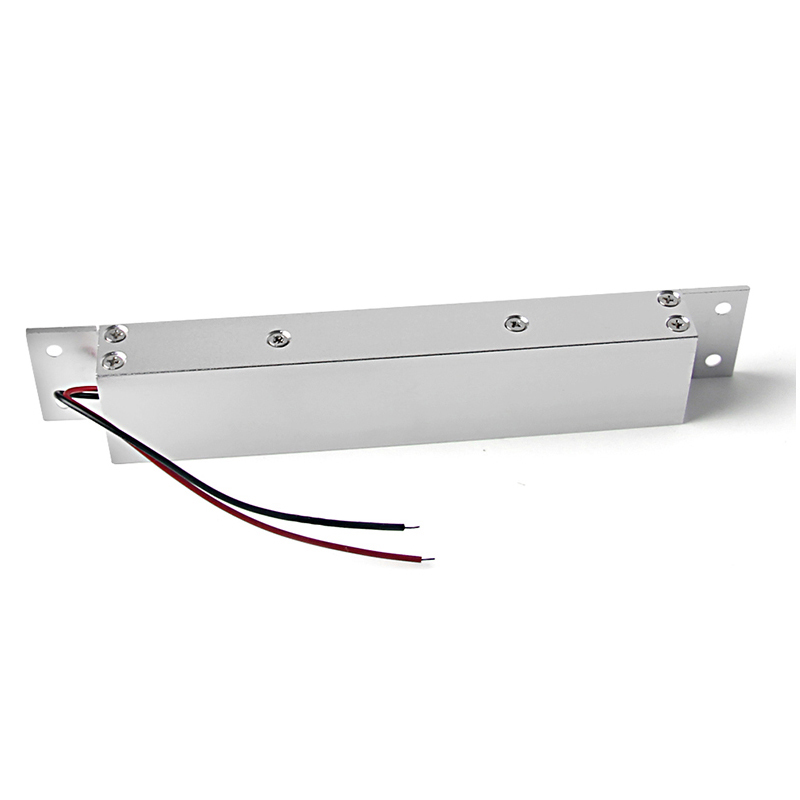

S4A EM-800TS Hidden Magnetic Lock with Signal Output
star star star star star
0.0
(0 reviews)
350KG hidden (mortise) electromagnetic lock with lock status feedback sensor, 12V/24VDC.
The S4A EM-800TS is a 350KG (800LBS) mortise-mount hidden magnetic lock equipped with a lock status feedback signal output.
verified
350KG / 800LBS
verified
Embedded / Status Feedback
verified
12V/24VDC
KES 10,440.00
KES 12,000.00
local_offer
Save KES 1,560
today
KES 0
(KES 10,440 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Variants
EM-800TS 350KG / 800LBS · Embedded / Status Feedback · 12V/24VDC EM-800T 350KG / 800LBS · Embedded / Mortise Mount · 12V/24VDC
Product Overview
The S4A EM-800TS is an embedded, flush-mounted electromagnetic lock delivering 350KG (800LBS) of holding force. It features a lock status sensor relay output (dry contact feedback), letting access control systems monitor whether the lock is fully engaged.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 2.7 |
| Shipping Weight | 2.9 |
| Lock Type | other |
| Holding Force Kg | 350 |
| Holding Force Lbs | 800 |
| Holding Force Text | 350KG (800LBS) |
| Lock Dimensions | 273Lx44Wx27.5H(mm) |
| Armature Dimensions | 180Lx45Wx11H(mm) |
| Operating Voltage | DC12V or DC24V |
| Current Draw | 12V/480mA, 24V/240mA |
| Signal Output | Lock status feedback |
| Led Indicator | No |
| Door Status Sensor | Yes |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
