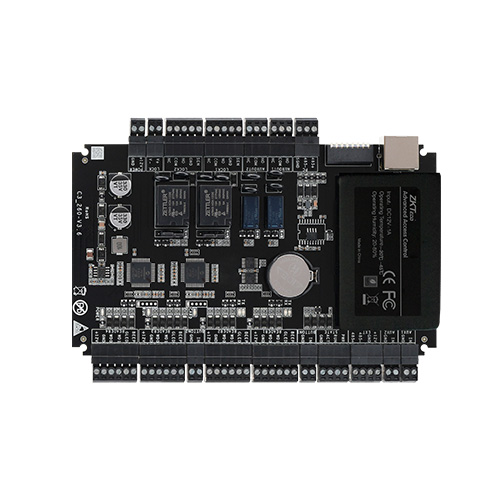

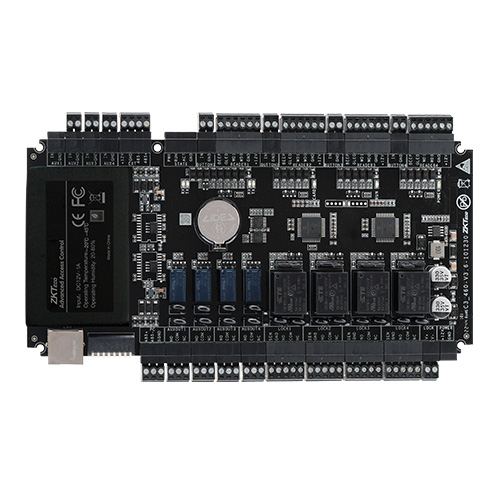

ZKTeco C3-200 Plus controller, 2 door control, 4 readers, 30,000 card capacity, TCP/IP & RS485.
The ZKTeco C3-200 Plus is a centralized multi-door network access control panel engineered for robust door management, real-time event monitoring, and enterprise biometric integration.
Product Overview
Designed for enterprise security architectures, the ZKTeco C3-200 Plus panel provides centralized control for building entry points. It communicates via TCP/IP or RS485, storing access permissions locally so doors continue operating safely even during network interruptions.
Why Buy This Product
Centralized Administration
Manage multiple doors and access rights from one central BioSecurity server.
Fail-Safe Offline Mode
Saves up to 100,000 events locally if network connection drops.
Best for These Applications
Commercial Buildings & Factories
Perfect for multi-entrance buildings requiring centralized access policies.
Key Advantages
- Multi-Door Synchronization:Supports interlocking, anti-passback, and emergency lockdown across all managed doors.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.36 |
| Shipping Weight | 0.56 |
| Doors Supported | 2 |
| Readers Supported | 4 |
| Card Capacity | 30000 |
| Log Capacity | 100000 |
| Communication Interfaces | TCP/IP, RS485, Wiegand Input |
| Cpu | 32-bit CPU |
| Dimensions | 160mm x 106mm x 30mm |
| Power Requirements | DC 12V 3A / 5A |
| Operating Temp | 0°C to 55°C |
| Operating Humidity | 20% to 80% |
| Certifications | CE, FCC, RoHS |
| Stock | 2 |
