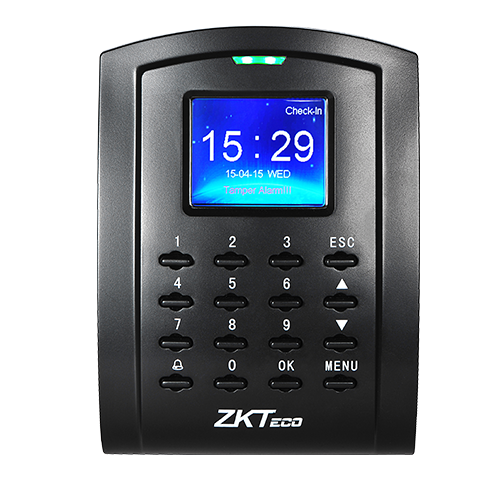

ZKTeco SC105 RFID Access Terminal, 30K Card capacity, 2.0" Color Display, 80K Logs, TCP/IP, Wiegand & RS485.
The ZKTeco SC105 is a high-capacity RFID card and PIN access control terminal featuring a 2.0-inch color screen. Built for high-volume card access, it holds 30,000 RFID card credentials and 80,000 event transaction logs for commercial buildings.
Product Overview
Designed for facilities utilizing proximity card badges, the ZKTeco SC105 provides high capacity and fast response times. Its 2.0-inch color display shows user verification status, while its TCP/IP network connection and built-in lock relay allow standalone door control or centralized software management.
Why Buy This Product
30,000 Card Capacity
High capacity handles thousands of employee badges on a single door reader.
Rapid Card Reading
Validates RFID cards in under 0.2 seconds, preventing queue bottlenecks.
2.0-inch Color Display
Displays user badge numbers and confirmation messages clearly.
Best for These Applications
Commercial Towers & Office Parks
Ideal for employee card badge access control across multi-tenant buildings.
School & Staff Entrances
Great for RFID badge entry.
Key Advantages
- High Density Card Storage: Stores 30,000 credentials without requiring external panel memory.
- Direct Lock Control: Drives door locks directly.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.35 |
| Shipping Weight | 0.55 |
| User Capacity | 30000 |
| Fingerprint Capacity | 0 |
| Face Capacity | 0 |
| Card Capacity | 30000 |
| Log Capacity | 80000 |
| Verification Speed | < 0.2s |
| Authentication Modes | Card, Password |
| Ip Rating | IP54 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 2.0" Color Screen |
| Operating System | Linux |
| Dimensions | 130mm x 94mm x 52mm |
| Power Requirements | DC 12V 1.5A |
| Operating Temp | 0°C to 45°C |
| Operating Humidity | 20% to 80% |
| Certifications | CE, FCC, RoHS |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Switch Input |
| Sensor Type | RFID Proximity Reader Module |
| Mounting Options | Wall Mount Bracket |
| Credential Types | 125kHz EM Card, PIN |
