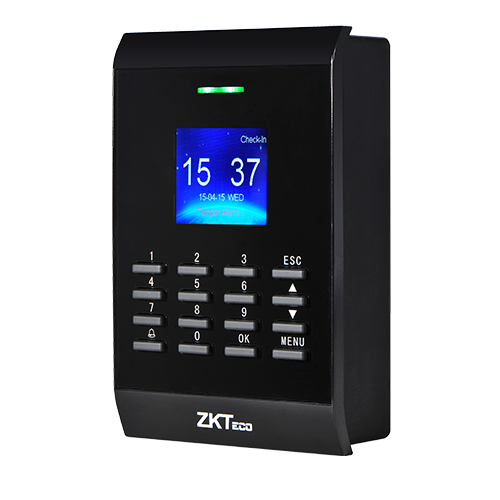

ZKTeco SC405 Keypad RFID Terminal, 30K Card capacity, Physical Numeric Keypad, 2.0" Color Display, TCP/IP & Wiegand.
The ZKTeco SC405 is an RFID card and PIN keypad access control terminal featuring a 2.0-inch color LCD display and a physical keypad. Supporting 30,000 card credentials, it provides reliable proximity card entry combined with PIN code verification.
Product Overview
Designed for facilities requiring physical keypad PIN entry alongside proximity cards, the ZKTeco SC405 holds 30,000 cards and 80,000 event logs. Its durable tactile keypad allows easy PIN input for high-security multi-factor authentication (Card + PIN).
Why Buy This Product
Physical Keypad PIN Entry
Durable tactile numeric keypad enables easy PIN code entry for multi-factor Card + PIN modes.
30,000 RFID Card Storage
High capacity accommodates large company badge lists.
TCP/IP Network Push
Transfers logs automatically to central server software.
Best for These Applications
Commercial Office Doors
Ideal for entrances requiring card badge access and physical keypad PIN entry.
Staff Stockrooms & Back Offices
Great for restricted area doors.
Key Advantages
- Dual Credential Mode (Card + PIN):Requires both valid card scan and PIN code entry for high-security doors.
- Direct Lock Relay Output:Controls door locks directly.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.36 |
| Shipping Weight | 0.56 |
| User Capacity | 30000 |
| Fingerprint Capacity | 0 |
| Face Capacity | 0 |
| Card Capacity | 30000 |
| Log Capacity | 80000 |
| Verification Speed | < 0.2s |
| Authentication Modes | Card, Password |
| Ip Rating | IP54 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 2.0" Color Screen |
| Operating System | Linux |
| Dimensions | 143mm x 96mm x 42mm |
| Power Requirements | DC 12V 1.5A |
| Operating Temp | 0°C to 45°C |
| Operating Humidity | 20% to 80% |
| Certifications | CE, FCC, RoHS |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Switch Input |
| Sensor Type | RFID Proximity Reader & Physical Keypad |
| Mounting Options | Wall Mount Bracket |
| Credential Types | 125kHz EM Card, Keypad PIN |
| Stock | 10 |
