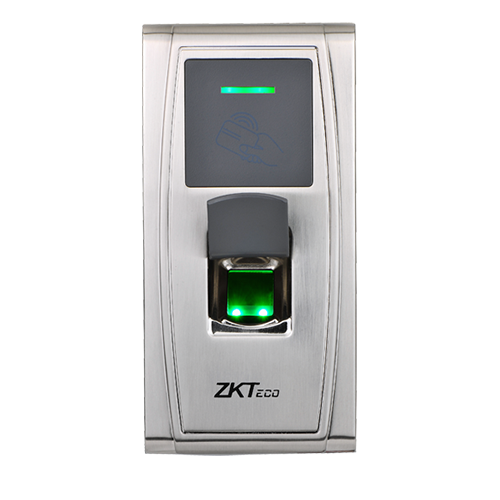

ZKTeco MA300 Outdoor Metallic Terminal, IP65 Vandal-Resistant Housing, 1.5K FP / 10K Card capacity, OLED Indicator, TCP/IP & Wiegand.
The ZKTeco MA300 is a heavy-duty IP65 waterproof metallic access control terminal engineered for outdoor gates and harsh industrial environments. Featuring a metallic vandal-proof casing, optical fingerprint sensor, and RFID card reader, it offers rugged security.
Product Overview
Built for outdoor perimeter gates, factory entrances, and high-vandalism areas, the ZKTeco MA300 combines a metallic IP65 sealed housing with 1,500 fingerprint and 10,000 RFID card capacity. An OLED indicator guides users through enrollment, while its built-in relays directly drive heavy-duty electric gates and magnetic locks.
Why Buy This Product
Vandal-Resistant Metallic Build
Rugged metallic casing protects internal optics against physical impacts and vandalism.
IP65 Weatherproof Sealed
Fully weather-sealed housing operates reliably in heavy rain, dust, and extreme outdoor heat.
High Capacity Storage
Stores 1,500 fingerprints and 10,000 RFID card credentials.
Best for These Applications
Outdoor Perimeter Gates & Parking Barriers
Ideal for exterior vehicle gates, perimeter turnstiles, and construction site entrances.
Factories & Heavy Industrial Plants
Great for harsh physical environments.
Key Advantages
- All-Weather Reliability:IP65 metallic housing prevents water ingress even during intense storms.
- Dual Mode Operation:Operates standalone or connects to inBio access control panels.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.75 |
| Shipping Weight | 1.05 |
| User Capacity | 1500 |
| Fingerprint Capacity | 1500 |
| Face Capacity | 0 |
| Card Capacity | 10000 |
| Log Capacity | 100000 |
| Verification Speed | < 0.5s |
| Authentication Modes | Fingerprint, Card, Password |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Output, RS485, USB Host |
| Operating System | Linux |
| Dimensions | 73mm x 148mm x 34.5mm |
| Power Requirements | DC 12V 1.5A |
| Operating Temp | -10°C to 60°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Wiegand Interface | Wiegand Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Switch Input |
| Sensor Type | ZK Optical Fingerprint Sensor |
| Mounting Options | Wall Surface Mount |
| Credential Types | Fingerprint, 125kHz EM Card, PIN |
