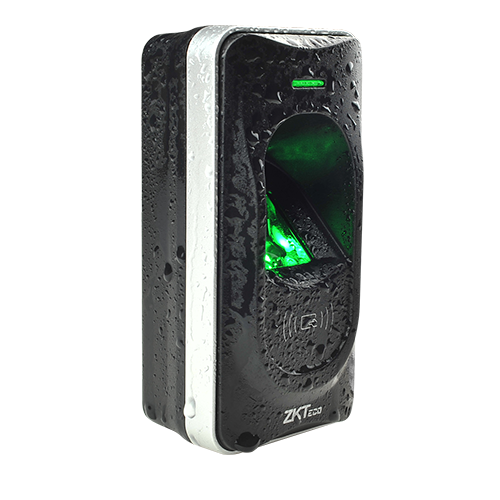

ZKTeco FR1200 RS485 Slave Reader, Optical Fingerprint + 125kHz Card, IP65 Outdoor Casing, LED & Buzzer Feedback, InBio Compatible.
The ZKTeco FR1200 is an IP65 waterproof RS485 slave fingerprint and RFID card reader designed to work with ZKTeco inBio access control panels and standalone biometric terminals. Installed on the secure inside or exit side of a door, it transfers biometric template data via RS485.
Product Overview
Essential for dual-directional biometric access control (Entry & Exit fingerprint verification), the ZKTeco FR1200 acts as a slave reader transmitting biometric data via RS485 to master inBio panels or standalone terminals (e.g. F18, F21, MA300). Its IP65 sealed housing allows indoor and outdoor gate installation.
Why Buy This Product
RS485 Master-Slave Architecture
Connects seamlessly to inBio controllers and master readers for anti-passback entry/exit tracking.
IP65 Weatherproof Sealed
Durable sealed casing withstands outdoor rain and extreme temperatures.
Compact Narrow Profile
Small 50mm width fits narrow door frames and turnstile cabinets easily.
Best for These Applications
InBio Access Control Panels
Ideal slave fingerprint reader for inBio 160, 260, and 460 multi-door systems.
Two-Way Biometric Doors
Great for doors requiring fingerprint scanning on both Entry and Exit.
Key Advantages
- Zero On-Board Database Risk:Contains no stored template database locally; templates remain safely inside master panel.
- Robust RS485 Distance:RS485 communication cable runs reliably up to 800 meters from master controller.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.18 |
| Shipping Weight | 0.32 |
| User Capacity | 0 |
| Fingerprint Capacity | 0 |
| Face Capacity | 0 |
| Card Capacity | 0 |
| Log Capacity | 0 |
| Verification Speed | < 0.5s |
| Authentication Modes | Fingerprint, Card |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | RS485 |
| Operating System | Firmware |
| Dimensions | 102mm x 50mm x 37mm |
| Power Requirements | DC 12V 100mA (from Master) |
| Operating Temp | -10°C to 50°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Sensor Type | ZK Optical Fingerprint Sensor |
| Mounting Options | Wall Surface Mount |
| Credential Types | Fingerprint, 125kHz EM Card |
| Stock | 7 |
