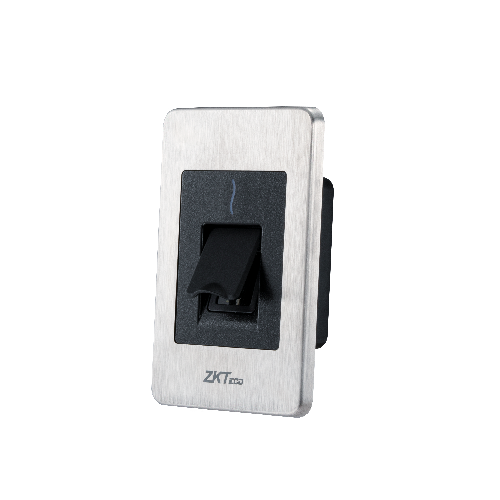

ZKTeco FR1500S Flush-Mount Stainless Steel Slave Reader, IP65, Optical Fingerprint + 125kHz Card, RS485, InBio Compatible.
The ZKTeco FR1500S is a flush-mount stainless steel IP65 RS485 slave fingerprint reader. Designed for cleanrooms, luxury corporate entrances, and modern architectural glass walls, it mounts flush into standard electrical junction boxes for an ultra-sleek appearance.
Product Overview
Combining architectural elegance with industrial durability, the ZKTeco FR1500S features a brushed SUS304 stainless steel front panel and an IP65 sealed optical sensor. Communicating via RS485 with inBio controllers, it fits flush against interior or exterior walls, providing high-precision fingerprint and card verification.
Why Buy This Product
Flush-Mount Stainless Steel
Sits completely flush against wall surfaces for an elegant, vandal-resistant architectural appearance.
SUS304 Stainless Steel Casing
Resists corrosion, scratches, harsh cleaning chemicals, and mechanical damage.
IP65 Weatherproof Sealed
Ideal for hospital cleanrooms, laboratories, and outdoor luxury entrances.
Best for These Applications
Hospitals & Cleanroom Facilities
Ideal for medical and pharmaceutical environments requiring flush, easy-to-clean wall surfaces.
Luxury Corporate Buildings
Great for executive glass and marble lobby walls.
Key Advantages
- Vandal-Resistant Flush Fit:Eliminates protruding edges, preventing accidental damage or mechanical prying.
- Seamless inBio Connectivity:Transmits fingerprint templates securely via RS485 to inBio panels.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.38 |
| Shipping Weight | 0.58 |
| User Capacity | 0 |
| Fingerprint Capacity | 0 |
| Face Capacity | 0 |
| Card Capacity | 0 |
| Log Capacity | 0 |
| Verification Speed | < 0.5s |
| Authentication Modes | Fingerprint, Card |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | RS485 |
| Operating System | Firmware |
| Dimensions | 156mm x 103mm x 50mm |
| Power Requirements | DC 12V 100mA (from Master) |
| Operating Temp | -10°C to 50°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Sensor Type | Optical Fingerprint Sensor |
| Mounting Options | Single-Gang Flush Wall Mount |
| Credential Types | Fingerprint, 125kHz EM Card |
| Stock | 4 |
