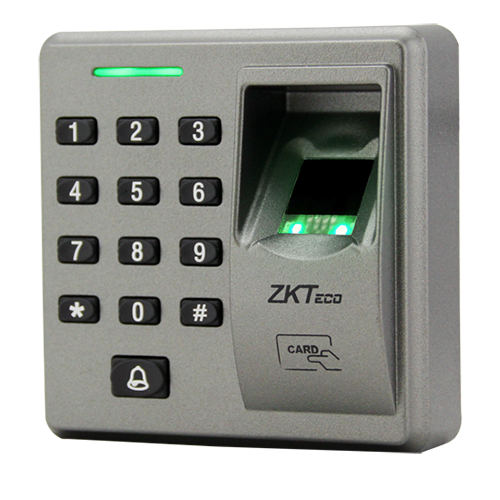

ZKTeco FR1300 RS485 Slave Reader, Fingerprint + 125kHz Card + Touch Keypad PIN, IP65, InBio Compatible.
The ZKTeco FR1300 is an indoor/outdoor RS485 slave reader featuring an optical fingerprint sensor, 125kHz card reader, and touch numeric keypad. Communicating directly with inBio controllers via RS485, it allows multi-factor Entry/Exit door verification (Fingerprint / Card / PIN).
Product Overview
Designed for multi-factor exit/entry tracking, the ZKTeco FR1300 provides fingerprint, RFID card, and touch keypad PIN capabilities in a compact slave reader. Its built-in RS485 interface connects directly to inBio controllers, while its IP65 rating protects it against ambient dust and water spray.
Why Buy This Product
Touch Keypad PIN + Fingerprint
Adds keypad PIN code authentication to RS485 slave exit readers.
Seamless inBio Integration
Communicates via RS485 with inBio 160, 260, and 460 multi-door access controllers.
IP65 Protection
Sealed housing ensures reliable indoor/outdoor operation.
Best for These Applications
High-Security InBio Door Gates
Ideal for doors requiring fingerprint or PIN verification on exit.
Server Rooms & Vaults
Great for dual-credential access control.
Key Advantages
- Multi-Factor Slave Entry:Supports Fingerprint + PIN mode at the slave reader level.
- Secure RS485 Bus:Encrypted RS485 data transmission prevents wire tapping fraud.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.2 |
| Shipping Weight | 0.35 |
| User Capacity | 0 |
| Fingerprint Capacity | 0 |
| Face Capacity | 0 |
| Card Capacity | 0 |
| Log Capacity | 0 |
| Verification Speed | < 0.5s |
| Authentication Modes | Fingerprint, Card, Password |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | RS485 |
| Operating System | Firmware |
| Dimensions | 88mm x 88mm x 34mm |
| Power Requirements | DC 12V 100mA (from Master) |
| Operating Temp | -10°C to 50°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Supported Software | ZKBio Access, BioTime, ZKAccess 3.5 |
| Sensor Type | ZK Optical Fingerprint Sensor & Touch Keypad |
| Mounting Options | Wall Surface Mount |
| Credential Types | Fingerprint, 125kHz EM Card, Touch PIN |
| Stock | 6 |
