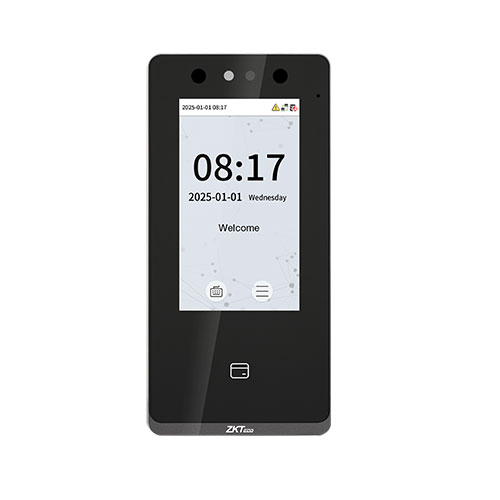

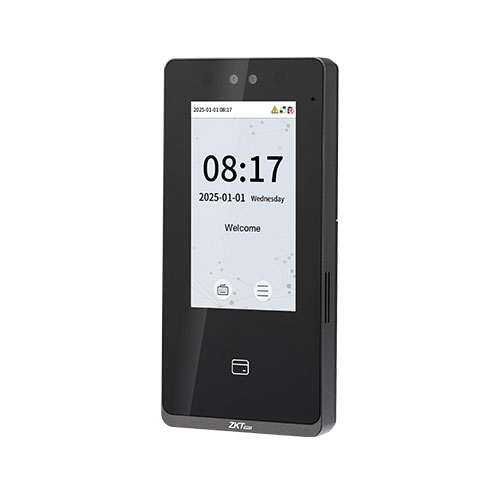

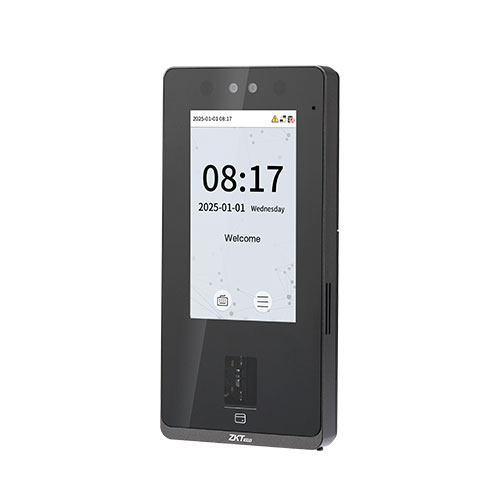

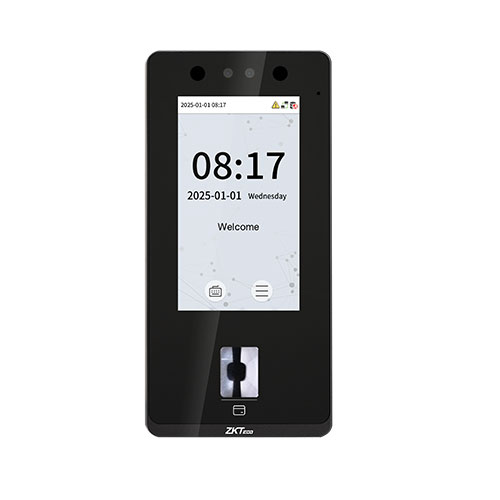

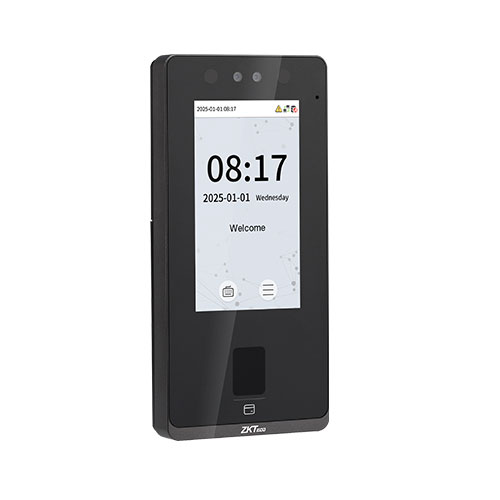

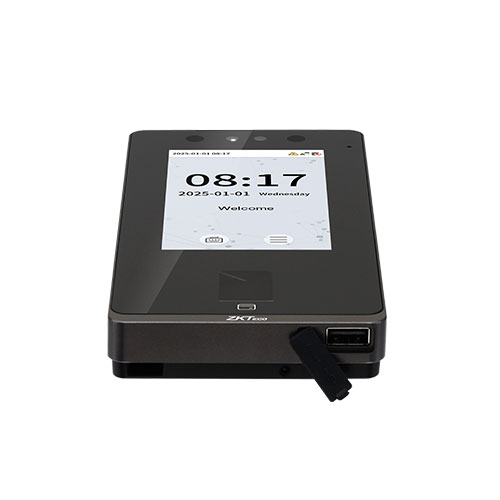

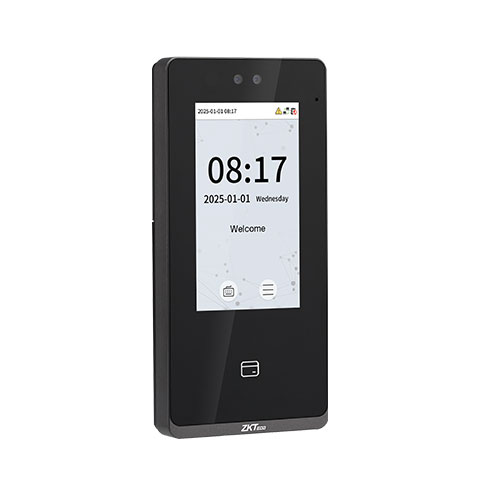

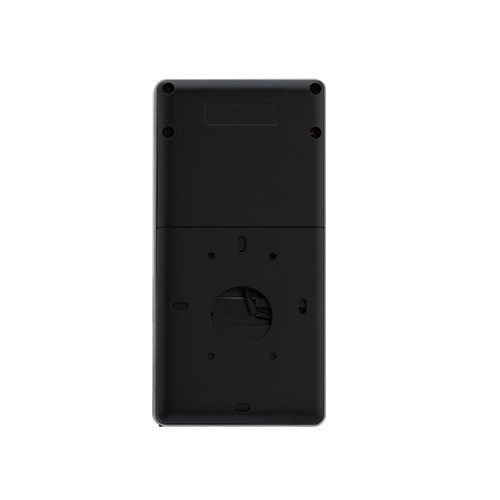

SenseFace 4A Access Control Terminal & Reader
ZKTeco SenseFace 4A Touchscreen Terminal, 3K Face / 3K FP / 3K Card, 4.0" Touch LCD, IP65, TCP/IP, Wiegand & RS485.
The ZKTeco SenseFace 4A is an advanced biometric terminal featuring a 4.0-inch color touchscreen display and high-capacity multi-factor authentication. Capable of storing 3,000 face templates, 3,000 fingerprints, and 3,000 RFID cards, it provides an ideal access solution for modern corporate facilities.
Product Overview
Designed for demanding office buildings and industrial sites, the SenseFace 4A pairs a responsive 4.0-inch touchscreen with ZKTeco's Visible Light facial recognition engine. Its dual binocular camera system performs live face detection in < 0.3s, while its IP65 weatherproof casing guarantees reliable long-term performance.
Why Buy This Product
4.0-inch Capacitive Touchscreen
Large touchscreen display simplifies menu navigation and user enrollment directly at the door.
High Capacity Biometrics
Stores up to 3,000 faces and 3,000 fingerprints for medium-to-large business workforces.
IP65 Weather Resistance
Robust sealed housing guarantees operational reliability in rain and high-dust areas.
Best for These Applications
Corporate Office Headquarters
Perfect for main lobby entrance doors and executive suite access control.
Manufacturing Facilities
Ideal for plant entrance gates requiring multi-biometric validation.
Key Advantages
- Wide Dynamic Range Vision: Maintains accurate facial recognition in bright glare or pitch-black night conditions.
- Direct Lock Switching: Controls magnetic locks and electric strikes directly with built-in relay contacts.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.42 |
| Shipping Weight | 0.65 |
| User Capacity | 3000 |
| Fingerprint Capacity | 3000 |
| Face Capacity | 3000 |
| Card Capacity | 3000 |
| Log Capacity | 150000 |
| Verification Speed | < 0.3s |
| Authentication Modes | Visible Light Face, Fingerprint, Card, Password |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 4.0" Touch Screen |
| Camera | 2MP Binocular WDR Camera |
| Operating System | Linux |
| Dimensions | 180mm x 120mm x 25mm |
| Power Requirements | DC 12V 1.5A |
| Operating Temp | -10°C to 45°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKLiveFace V5.8 / ZKFinger VX10.0 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Recognition Distance | 0.3m - 2.0m |
| Supported Software | ZKBio Access, BioTime, ZKBioSecurity |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Switch Input |
| Sensor Type | Optical Fingerprint Sensor & Binocular Camera |
| Mounting Options | Wall Mount Bracket |
| Credential Types | Face, Fingerprint, 125kHz EM Card, PIN |
