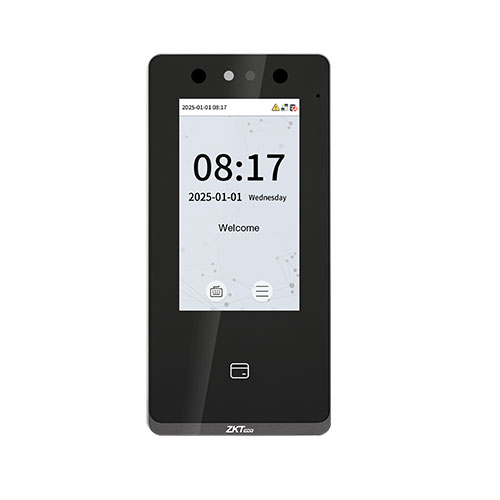

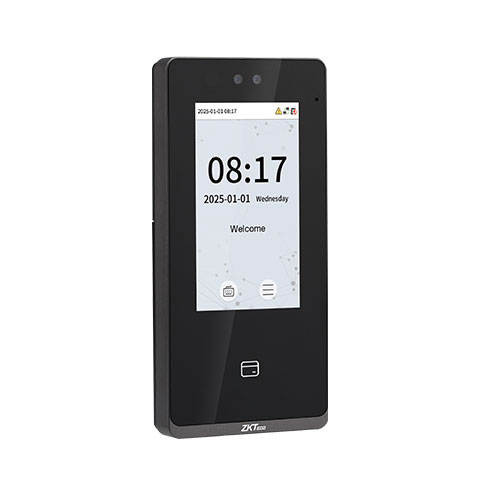

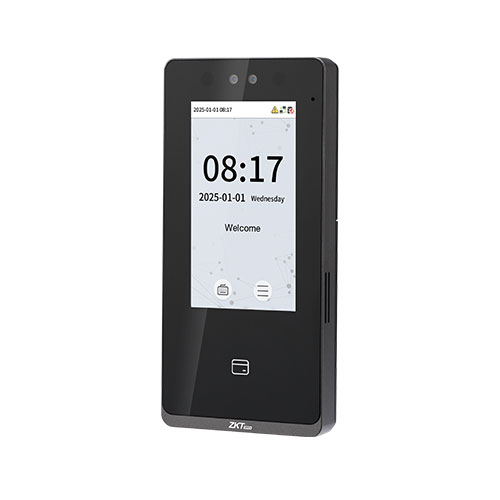

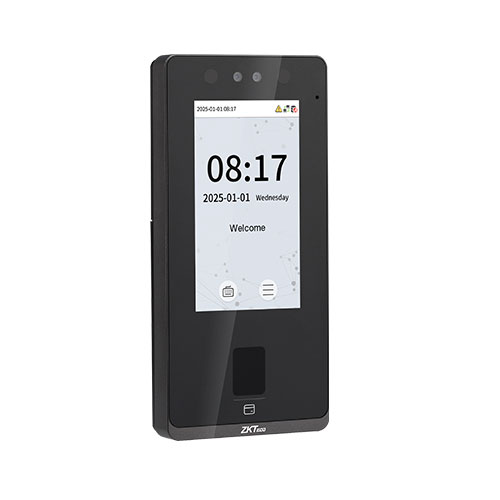

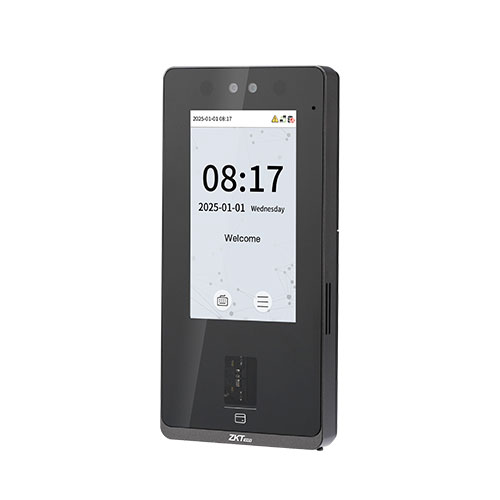

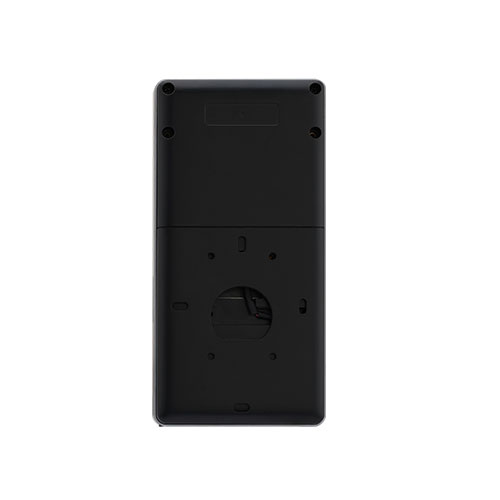

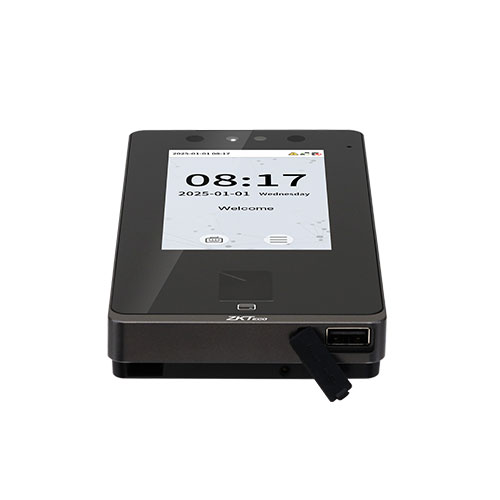

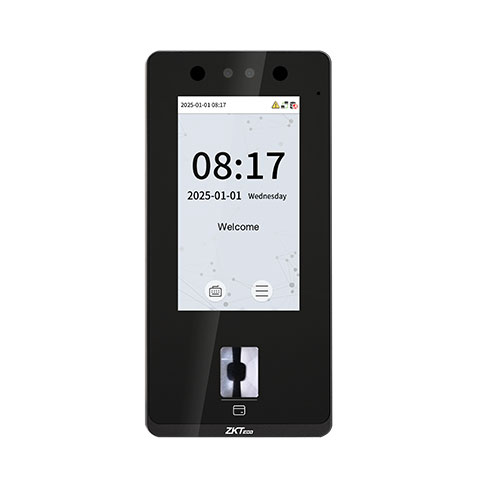

SenseFace 4B Access Control Terminal & Reader
ZKTeco SenseFace 4B Touchless Terminal, 3K Face / 3K Card capacity, 4.0" Touch LCD, IP65, TCP/IP, Wiegand & RS485.
The ZKTeco SenseFace 4B is a 4.0-inch touchscreen access control terminal engineered for touchless RFID card and Visible Light facial recognition. Omitting the fingerprint sensor for a clean, streamlined design, it holds 3,000 face templates and 3,000 RFID cards for high-throughput entry points.
Product Overview
Engineered for organizations prioritizing contactless entry, the SenseFace 4B features a large 4.0-inch touchscreen interface paired with ZKTeco's deep-learning facial engine. Its 2MP binocular camera detects live human faces in < 0.3s while preventing photo spoofing, making it ideal for modern corporate doors.
Why Buy This Product
Large 4.0-inch Touch UI
Provides a modern, high-tech entrance aesthetic with responsive touch menu controls.
100% Touchless Operation
Removes surface contact requirements, improving hygiene across high-volume access gates.
IP65 Weatherproof Chassis
Protects against rain, dust, and direct sunlight exposure.
Best for These Applications
Corporate Office Entrances
Ideal for main reception doors where touchless entry and modern design are required.
Schools & Commercial Buildings
Great for staff and visitor access management.
Key Advantages
- Binocular Liveness Protection: Prevents unauthorized entry via smartphone photos or video replays.
- Direct Lock Relay Output: Drives magnetic locks and door strikes directly.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.4 |
| Shipping Weight | 0.63 |
| User Capacity | 3000 |
| Fingerprint Capacity | 0 |
| Face Capacity | 3000 |
| Card Capacity | 3000 |
| Log Capacity | 150000 |
| Verification Speed | < 0.3s |
| Authentication Modes | Visible Light Face, Card, Password |
| Ip Rating | IP65 |
| Tamper Detection | Yes |
| Communication Interfaces | TCP/IP, Wiegand Input/Output, RS485, USB Host |
| Display | 4.0" Touch Screen |
| Camera | 2MP Binocular WDR Camera |
| Operating System | Linux |
| Dimensions | 180mm x 120mm x 25mm |
| Power Requirements | DC 12V 1.5A |
| Operating Temp | -10°C to 45°C |
| Operating Humidity | 10% to 90% |
| Certifications | CE, FCC, RoHS |
| Biometric Algorithm | ZKLiveFace V5.8 |
| Far | < 0.0001% |
| Frr | < 0.01% |
| Recognition Distance | 0.3m - 2.0m |
| Supported Software | ZKBio Access, BioTime, ZKBioSecurity |
| Wiegand Interface | Wiegand Input & Output |
| Door Relay Output | 1 Lock Relay, Alarm Relay, Exit Switch Input |
| Sensor Type | Dual Binocular WDR Camera |
| Mounting Options | Wall Mount Bracket |
| Credential Types | Face, 125kHz EM Card, PIN |
