ETERNITY GENX12SDC, Telecom, PBX, Matrix Comsec, 12 Universal Slots, 48V DC Power Input
Enterprise modular hybrid IP-PBX system equipped with 12 universal expansion slots and a 48V DC power supply input for telecom central offices and DC power plant installations.
Product Overview

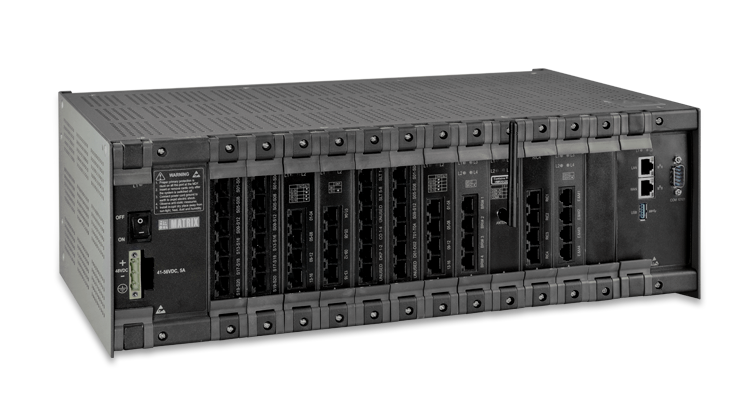

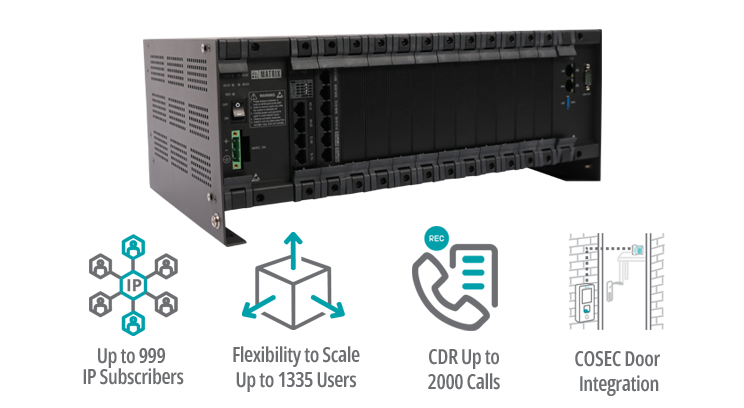

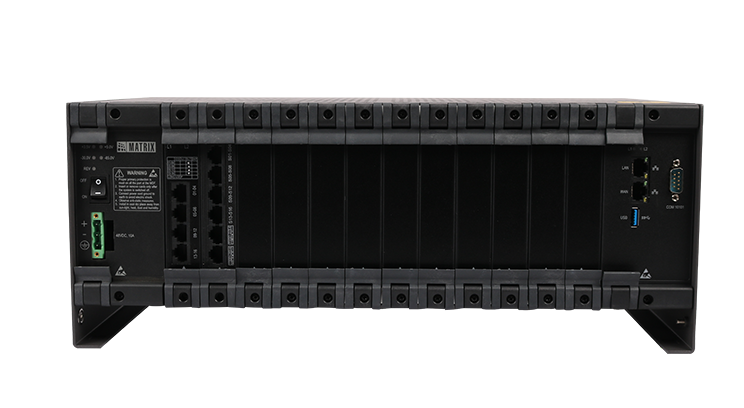

The Matrix ETERNITY GENX12SDC is specifically engineered for mission-critical telecom environments, utility control centers, and server facilities operating on enterprise 48V DC power plants. By accepting direct -48V DC power input without needing AC-to-DC inverters, it eliminates power conversion losses and eliminates a major single point of failure in critical voice infrastructure. Equipped with 12 universal expansion slots in a 4U 19-inch rack enclosure, the GENX12SDC provides complete freedom to configure analog lines, ISDN PRI trunks, mobile 4G interfaces, and IP extensions. Powered by SARVAM UCS SME software, it delivers advanced enterprise feature sets like mobile CTI, 62-party audio conferencing, LDAP contact synchronization, and full SRTP voice payload encryption.
Why Buy This Product
Native -48V DC Telecom Power
Operates directly from standard telecom DC power plants, eliminating DC-to-AC inverter conversion losses and removing a major point of electrical failure.
Universal Card Flexibility
Custom-configure any combination of analog lines, mobile 4G gateways, ISDN PRI, and VoIP modules across 12 universal expansion slots.
Mission-Critical Telecom Reliability
Engineered for continuous 24/7 operation in utility control centers, telecom exchanges, and railway signaling rooms.
Enterprise VARTA Softphone Access
Connect mobile engineers and remote operators to the PBX via encrypted VARTA softphones on smartphones and PCs.
Best for These Applications
Telecom Exchanges & Carrier Sites
Central office facilities running standardized -48V DC battery banks and rectifiers.
Power Substation & Utility Hubs
Electrical substations, oil & gas installations, and railways requiring hardened, DC-powered internal communications.
Carrier-Neutral Data Centers
Server hosting facilities utilizing centralized DC busbars for telecom and networking appliances.
Emergency Defense & Dispatch Centers
Control rooms requiring high-survivability voice infrastructure backed by large industrial battery banks.
Key Advantages
- Zero Inverter Conversion Loss:Eliminates heat dissipation and power inefficiencies associated with AC inverters, lowering operational cooling costs.
- Wide DC Input Voltage Tolerance:Safely handles DC voltage fluctuations between -40.8V DC and -57.6V DC (+20% / -15%) during battery discharge cycles.
- High Concurrency Voice Transcoding:Hardware DSP vocoder modules support up to 128 simultaneous transcoded VoIP calls with G.729AB compression.
- Hardware Voice Encryption:Encrypts voice media with SRTP and SIP signaling with TLS to prevent packet sniffing across internal and external networks.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 5 |
| Shipping Weight | 5.2 |
| User Capacity | 999 |
| Max Ip Users | 999 |
| Analog Extensions | 240 |
| Digital Extensions | 96 |
| Co Lines | 64 |
| Sip Trunks | 99 |
| Ip Trunks | 99 |
| Gsm Channels | 40 |
| Pri Ports | 8 |
| Expansion Slots | 12 |
| Voip Channels | 128 |
| Voicemail Channels | 64 |
| Voicemail Storage | Embedded VMS Engine (up to 64 Voicemail Channels) |
| Audio Conferencing | 62-Party Audio Conference |
| Call Detail Records | 11,998 Call Records |
| System Architecture | Modular Hybrid IP-PBX Chassis |
| Power Supply | -48V DC Telecom Power Input (-40.8V to -57.6V DC) |
| Power Consumption | 120W Max |
| Mounting Form Factor | 4U 19-inch Rackmount |
| Dimensions | 482 x 340 x 177 mm |
| Weight | 5.0 kg (Chassis) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Ethernet Interfaces | 1 x 10/100/1000 Mbps Gigabit LAN, 1 x WAN |
| Voip Protocols | SIP v2 (RFC 3261), SRTP, TLS, SDP, RTP |
| Audio Codecs | G.711a, G.711u, G.723.1, G.729AB, GSM-FR, iLBC |
| Certifications | CE, FCC, TEC, RoHS |
| Stock | 7 |
