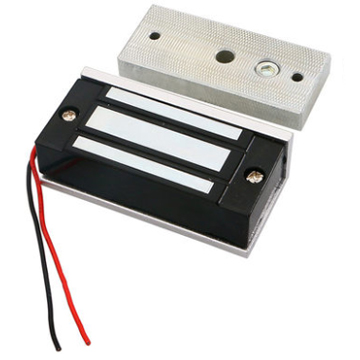

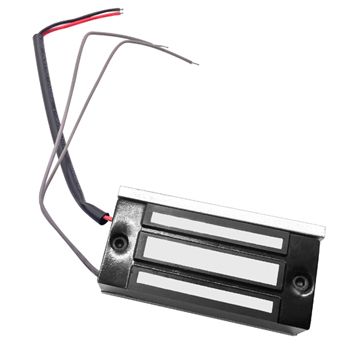

S4A EL-100 Mini Single Door Magnetic Lock (60KG / 100LBS)
60KG mini electromagnetic lock with 12VDC power input, 160mA current draw, and anodized aluminum shell.
The S4A EL-100 is a mini electromagnetic lock designed for cabinets, drawers, file cabinets, and small doors. Featuring a 60KG (100LBS) holding force and operating on 12VDC, it offers a secure, energy-efficient locking solution with a high-strength anodized aluminum casing.
Product Overview
The S4A EL-100 is an ultra-compact mini electromagnetic lock engineered specifically for locking small enclosures, cabinets, drawers, and display cases. It delivers a reliable 60KG (100LBS) of holding force when energized by a 12VDC power supply. Designed with safety in mind, it operates on a fail-safe configuration (unlocked when power is removed) and consumes very low current (only 160mA). The lock body features a robust anodized aluminum shell, while the electromagnet and armature plate are zinc-plated to resist corrosion and wear, ensuring long-term durability in commercial and residential settings.
Why Buy This Product
60KG Secure Holding
Provides a robust 60KG (100LBS) locking force, keeping cabinets, lockers, and display cases secure from unauthorized access.
Low Power Draw
Draws only 160mA at 12VDC, making it highly energy-efficient and reducing heat buildup during continuous duty operation.
Durable Metal Shell
Constructed with a premium anodized aluminum shell and zinc-finished components for maximum resistance against wear, rust, and tampering.
Fail-Safe Safety
Unlocks instantly upon power loss, meeting emergency escape standards and preventing lock-ins during power outages.
Best for These Applications
Retail Display Cabinets
Protects high-value merchandise inside glass cases, storefront display boxes, and jewelry drawers.
Office Filing Cabinets
Adds electronic access control to wooden or metal document lockers containing sensitive corporate files.
Lightweight Small Doors
Secures lightweight access doors, panels, and server equipment housings where full-size maglocks cannot fit.
Smart Home Furniture
Integrates smoothly into custom automated home drawers, drug cabinets, and smart closets.
Key Advantages
- Zero Residual Magnetism:Engineered to completely release the armature plate once power is cut, ensuring immediate door opening without sticky delays.
- Ultra-Compact Footprint:At only 80mm in length, it can be installed in tight corners and narrow frames without obstructing normal cupboard space.
- Low Operating Temperature:Maintains a surface temperature elevation of under 20°C, ensuring the surrounding wooden or plastic cabinet does not degrade.
- Simple Surface Mounting:Supplied with all necessary screws and template pads, making physical installation fast and straightforward.
Frequently Asked Questions
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.6 |
| Shipping Weight | 0.8 |
| Lock Type | single |
| Holding Force Kg | 60 |
| Holding Force Lbs | 100 |
| Holding Force Text | 60KG (100LBS) |
| Lock Dimensions | 80Lx33Wx19H(mm) |
| Armature Dimensions | 80Lx33Wx9.4H(mm) |
| Operating Voltage | 12VDC |
| Current Draw | 12V/160mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | File Cabinet, Display Cabinet, Drawers, Small Doors |
| Bracket Compatibility | Z-Bracket |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 9 |
Based on 12 customer reviews
Perfect for display cases
Used these to lock glass display cases in our retail store. Easy to mount and works reliably with the access control panel.
Compact and strong
Surprisingly strong holding force for such a small lock. Ideal for drawer locks in offices.
