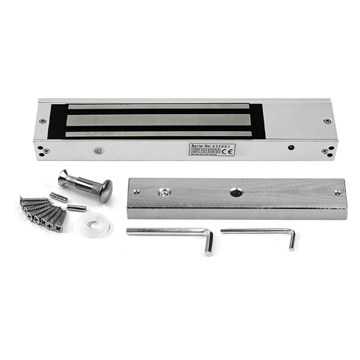

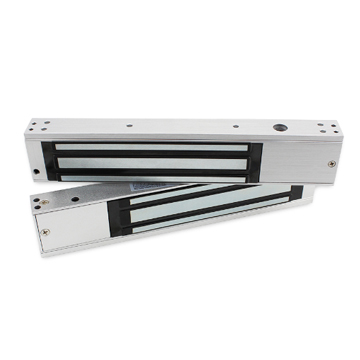

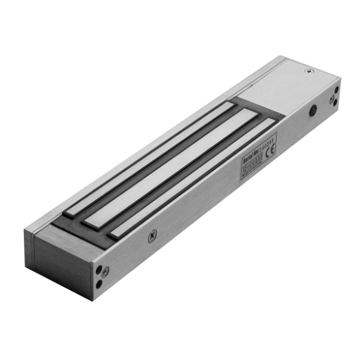

S4A EL-600SD Single Door 280KG Magnetic Lock with LED & Lock Sensor
starstarstarstarstar
0.0(0 reviews)280KG magnetic lock, dual LED status indicator, lock sensor, 12V/24VDC.
The S4A EL-600SD is a 280KG (600LBS) single door electromagnetic lock featuring a dual-color LED status indicator and lock state sensor for remote monitoring.
verified280KG / 600LBSverifiedLED & Lock Sensorverified12V/24VDC
KES 7,540.00KES 8,800.00
local_offerSave KES 1,260 today
KES 0(KES 7,540 × 1)
local_offerTotal saved: KES 0
1 Year Manufacturer Warranty
Variants
Product Overview
The S4A EL-600SD is a professional 280KG (600LBS) single door magnetic lock. It is equipped with a Red/Green LED status indicator and a lock status feedback sensor. Perfect for commercial doors where monitoring lock states is crucial.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 2 |
| Shipping Weight | 2.2 |
| Lock Type | single |
| Holding Force Kg | 280 |
| Holding Force Lbs | 600 |
| Holding Force Text | 280KG (600LBS) |
| Lock Dimensions | 250Lx48.5Wx25H(mm) |
| Armature Dimensions | 180Lx38Wx11H(mm) |
| Operating Voltage | 12V/24VDC |
| Current Draw | 12V/500mA, 24V/250mA |
| Signal Output | Lock status feedback |
| Led Indicator | Yes |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 1 |
