70KG magnetic lock for automatic doors, 12VDC/24VDC, high-temp paint finish.

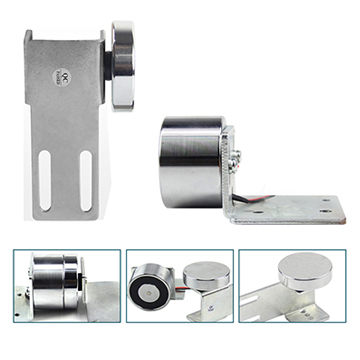

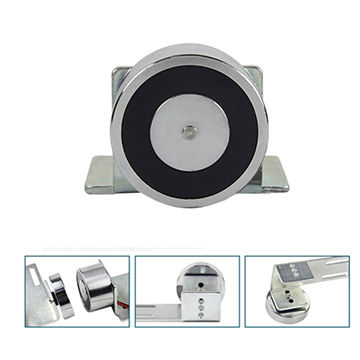

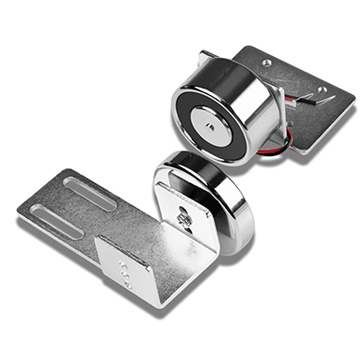

The S4A EL-150 is a specialized electromagnetic lock offering 70KG (150LBS) holding force, designed specifically for integration with automatic door operator systems.
verified
70KG / 150LBS
verified
Auto-Door Integration
verified
12V/24VDC
KES 5,568.00
KES 6,500.00
local_offer
Save KES 932
today
KES 0
(KES 5,568 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Product Overview
The S4A EL-150 is an electromagnetic lock built specifically for automatic sliding doors. Delivering 70KG (150LBS) of holding force, it integrates directly with automatic door operator control circuits. It runs on a fail-safe configuration, releasing instantly when power is cut.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.6 |
| Shipping Weight | 0.8 |
| Lock Type | single |
| Holding Force Kg | 70 |
| Holding Force Lbs | 150 |
| Holding Force Text | 70KG (150LBS) |
| Lock Dimensions | N/A |
| Armature Dimensions | N/A |
| Operating Voltage | 12VDC (Option 24VDC) |
| Current Draw | 12V/170mA, 24V/85mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Auto-door, Sliding Doors |
| Bracket Compatibility | |
| Operating Temperature | -20°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | 50°C |
| Suitable Humidity | 0~90% (relative humidity) |
| Shell Material | High temperature paint |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
