280KG embedded (mortise) electromagnetic lock, flush mount, 12V/24VDC.

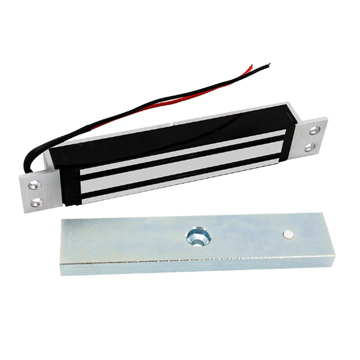

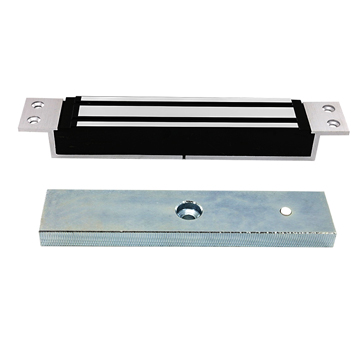

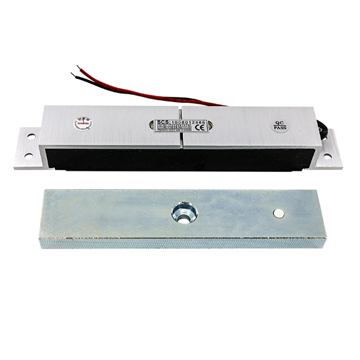

The S4A EM-600T is a mortise-mount (embedded) electromagnetic lock offering 280KG (600LBS) holding force. Designed for flush concealed installation on swing doors.
verified
280KG / 600LBS
verified
Embedded / Mortise Mount
verified
12V/24VDC
KES 7,888.00
KES 9,000.00
local_offer
Save KES 1,112
today
KES 0
(KES 7,888 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Variants
EM-600T 280KG / 600LBS · Embedded / Mortise Mount · 12V/24VDC EM-600TS 280KG / 600LBS · Embedded / Status Feedback · 12V/24VDC
Product Overview
The S4A EM-600T is a flush-mount mortise electromagnetic lock designed for wood, glass, metal, and fireproof doors. It provides a holding force of 280KG (600LBS), hiding inside the door frame or header for clean architectural lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 2.1 |
| Shipping Weight | 2.3 |
| Lock Type | other |
| Holding Force Kg | 280 |
| Holding Force Lbs | 600 |
| Holding Force Text | 280KG (600LBS) |
| Lock Dimensions | 258Lx42Wx25H(mm) |
| Armature Dimensions | 180Lx38Wx11H(mm) |
| Operating Voltage | DC12V (Adjustable DC24V) |
| Current Draw | 12V/500mA, 24V/250mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
