In Stock
IP68 waterproof 110KG electromagnetic lock, surface mount, 12V/24VDC.
The S4A EL-W220 is a compact waterproof IP68 electromagnetic lock delivering 110KG (220LBS) holding force. Engineered for cabinets, sliding drawers, and small gates in wet areas.
verified
110KG / 220LBS
verified
IP68 Waterproof
verified
Cabinet & Small Gates
KES 5,800.00
KES 6,800.00
local_offer
Save KES 1,000
today
KES 0
(KES 5,800 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Product Overview

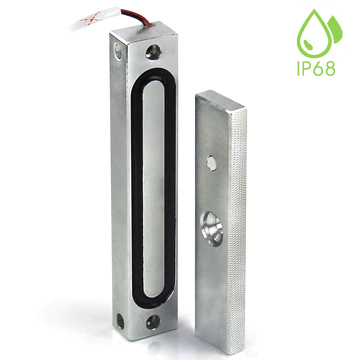

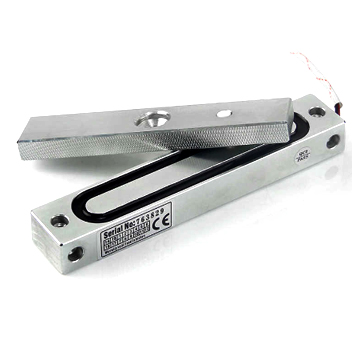

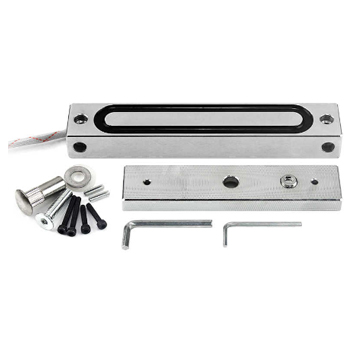

The S4A EL-W220 is a compact IP68 weather-sealed electromagnetic lock designed for small outdoor gates, cabinets, and display cases exposed to rain or damp conditions. It delivers 110KG (220LBS) of holding force, supporting dual-voltage configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 0.9 |
| Shipping Weight | 1.1 |
| Lock Type | single |
| Holding Force Kg | 110 |
| Holding Force Lbs | 220 |
| Holding Force Text | 110KG (220LBS) |
| Lock Dimensions | 160L*28W*19H mm |
| Armature Dimensions | 130L*28W*11H mm |
| Operating Voltage | DC12V (Option DC24V) |
| Current Draw | 12V/200mA, 24V/100mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Small Gates, Cabinets, Drawers, Showcase |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Ip Rating | IP68 |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
