S4A: EM-600TS

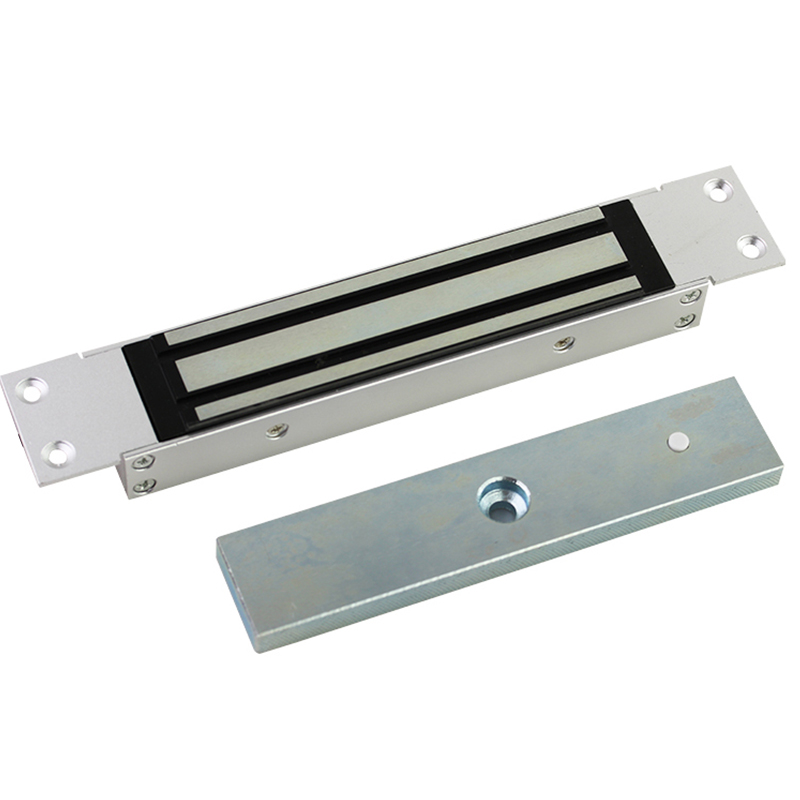

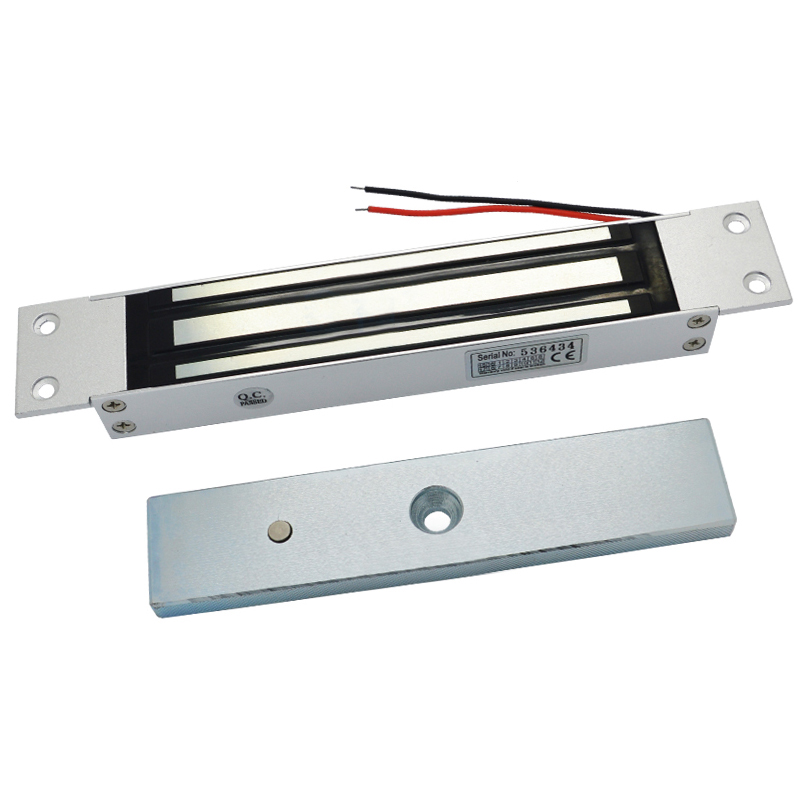

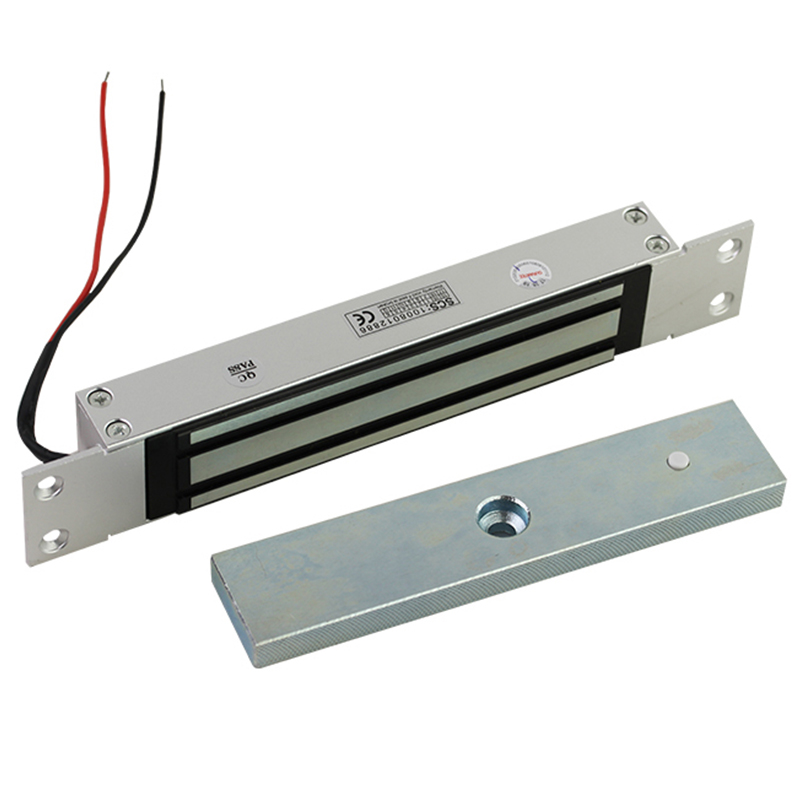

S4A EM-600TS Hidden Magnetic Lock with Signal Output
star star star star star
0.0
(0 reviews)
280KG hidden (mortise) electromagnetic lock with lock status feedback sensor, 12V/24VDC.
The S4A EM-600TS is a 280KG (600LBS) mortise-mount hidden magnetic lock equipped with a lock status feedback signal output for integration with control panels.
verified
280KG / 600LBS
verified
Embedded / Status Feedback
verified
12V/24VDC
KES 8,468.00
KES 9,800.00
local_offer
Save KES 1,332
today
KES 0
(KES 8,468 × 1)
local_offer
Total saved: KES 0
1 Year Manufacturer Warranty
Variants
EM-600TS 280KG / 600LBS · Embedded / Status Feedback · 12V/24VDC EM-600T 280KG / 600LBS · Embedded / Mortise Mount · 12V/24VDC
Product Overview
The S4A EM-600TS is an embedded, flush-mounted electromagnetic lock delivering 280KG (600LBS) of holding force. It features a lock status sensor relay output (dry contact feedback), letting access control systems monitor whether the lock is fully engaged.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 1.9 |
| Shipping Weight | 2.1 |
| Lock Type | other |
| Holding Force Kg | 280 |
| Holding Force Lbs | 600 |
| Holding Force Text | 280KG (600LBS) |
| Lock Dimensions | 258Lx42Wx26H(mm) |
| Armature Dimensions | 180Lx38Wx11H(mm) |
| Operating Voltage | DC12V or DC24V |
| Current Draw | 12V/500mA, 24V/250mA |
| Signal Output | Lock status feedback |
| Led Indicator | No |
| Door Status Sensor | Yes |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
