In Stock
280KG single door electromagnetic lock, 12V/24VDC input, anodized aluminum casing.

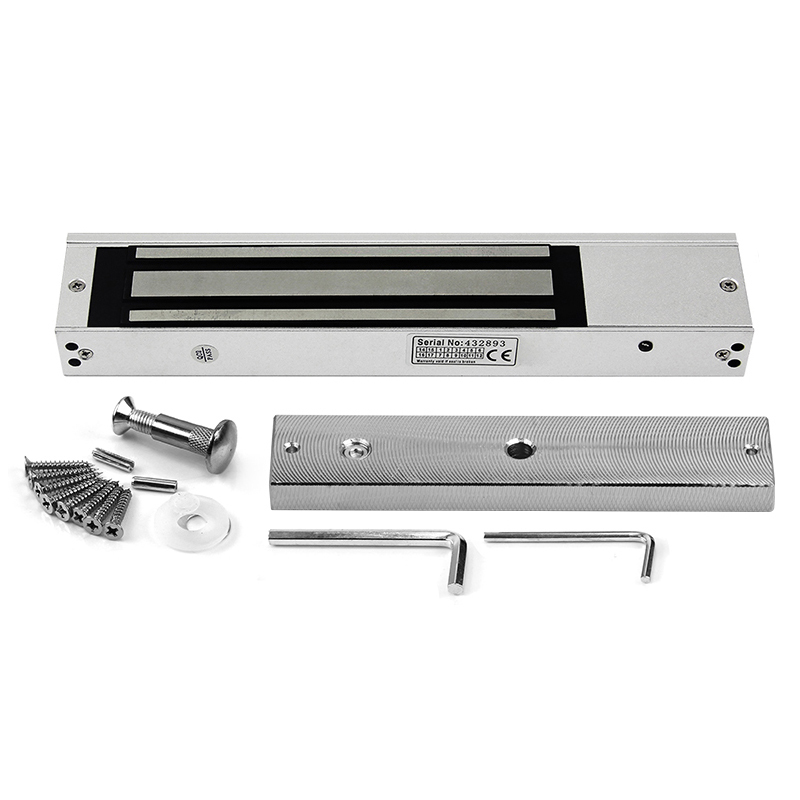

The S4A EL-600 is a standard single door surface-mounted electromagnetic lock delivering 280KG (600LBS) holding force. Perfect for wooden, glass, and metal doors.
verified280KG / 600LBSverified12V/24VDCverifiedSwing Door
KES 6,960.00KES 8,000.00
local_offerSave KES 1,040 today
KES 0(KES 6,960 × 1)
local_offerTotal saved: KES 0
1 Year Manufacturer Warranty
Product Overview
The S4A EL-600 is a robust single door electromagnetic lock offering 280KG (600LBS) holding force. Running on 12VDC or 24VDC, it is fail-safe and designed for swing doors made of wood, glass, metal, or fireproof material. This basic model is configured without indicator lights or signal sensors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 1.8 |
| Shipping Weight | 2 |
| Lock Type | single |
| Holding Force Kg | 280 |
| Holding Force Lbs | 600 |
| Holding Force Text | 280KG (600LBS) |
| Lock Dimensions | 250Lx48.5Wx25H(mm) |
| Armature Dimensions | 180Lx38Wx11H(mm) |
| Operating Voltage | 12V/24VDC |
| Current Draw | 12V/500mA, 24V/250mA |
| Signal Output | None |
| Led Indicator | No |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 5 |
