In Stock
S4A: EL-600SZ

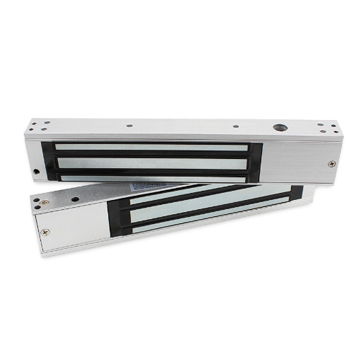

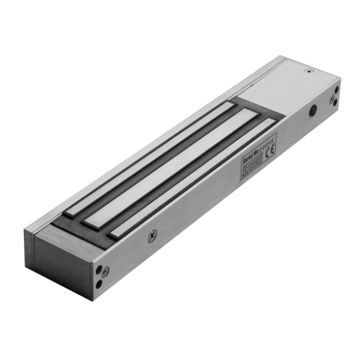

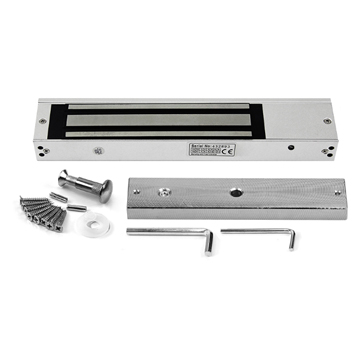

S4A EL-600SZ Single Door 280KG Magnetic Lock with LED & Buzzer
starstarstarstarstar
0.0(0 reviews)280KG magnetic lock with LED status light, lock sensor, and buzzer warning alarm.
The S4A EL-600SZ is a 280KG (600LBS) single door electromagnetic lock equipped with an LED indicator, lock sensor, and built-in buzzer alarm for warning alerts.
verified280KG / 600LBSverifiedLED, Sensor & Buzzerverified12V/24VDC
KES 7,772.00KES 9,000.00
local_offerSave KES 1,228 today
KES 0(KES 7,772 × 1)
local_offerTotal saved: KES 0
1 Year Manufacturer Warranty
Variants
Product Overview
The S4A EL-600SZ is an advanced single door electromagnetic lock equipped with both visual LED feedback and a built-in buzzer alarm. The buzzer sounds on status changes to provide an audible warning, making it ideal for restricted access doors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Weight | 1.8 |
| Shipping Weight | 2 |
| Lock Type | single |
| Holding Force Kg | 280 |
| Holding Force Lbs | 600 |
| Holding Force Text | 280KG (600LBS) |
| Lock Dimensions | 250Lx48.5Wx25H(mm) |
| Armature Dimensions | 180Lx38Wx11H(mm) |
| Operating Voltage | 12V/24VDC |
| Current Draw | 12V/500mA, 24V/250mA |
| Signal Output | Lock status feedback with buzzer |
| Led Indicator | Yes |
| Door Status Sensor | No |
| Time Delay | None |
| Suitable For | Wooden door, Glass door, Metal door, Fireproof door |
| Bracket Compatibility | L-Bracket, U-Bracket, ZL-Bracket |
| Operating Temperature | -20°C ~ 55°C (-4°F ~ 131°F) |
| Surface Temperature | ≤ 20°C |
| Suitable Humidity | 0~90% (non-condensing) |
| Shell Material | Anodized aluminum |
| Magnetic Material | Zinc |
| Armature Material | Zinc |
| Stock | 7 |
