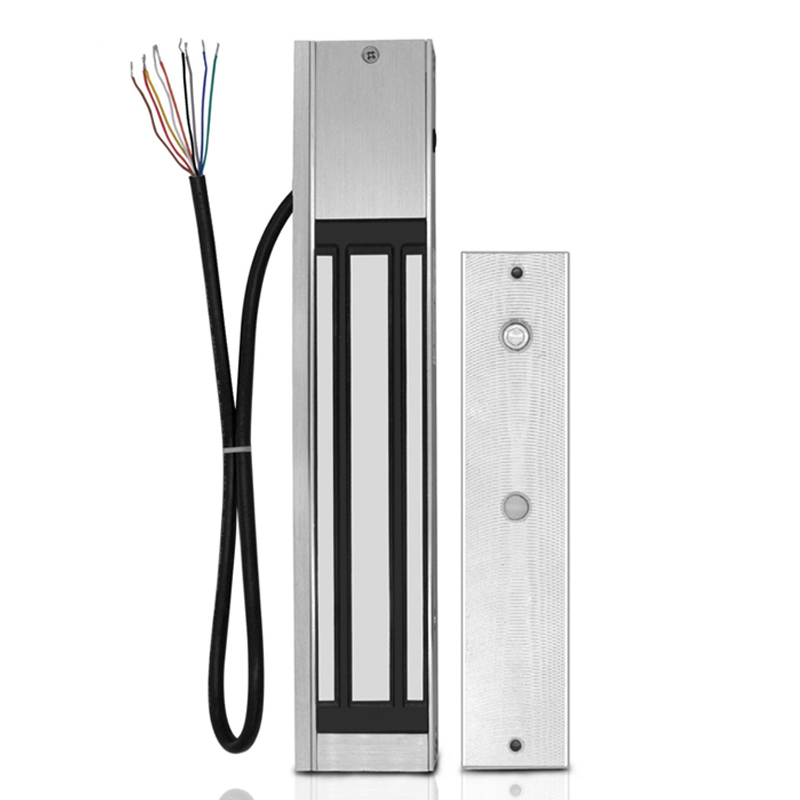

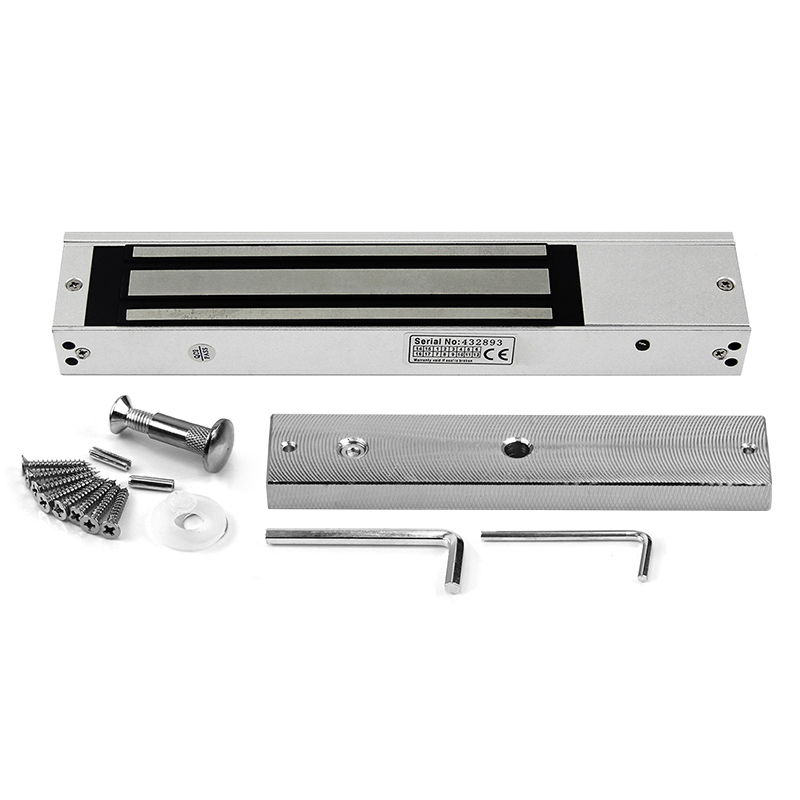

S4A EL-600SA 280KG Magnetic Lock with Integrated Controller

Name: S4A EL-600SA 280KG Magnetic Lock with Integrated Controller
Brand: S4A
SKU: EL-600SA
Price: 9280 KES
Availability: InStock

star star star star star

0.0 (0 reviews)

280KG magnetic lock with built-in access control controller PCB, 9-wire terminal.

The S4A EL-600SA is a unique 280KG (600LBS) electromagnetic lock equipped with an integrated standalone access control PCB board, supporting card enrollment.

verified 280KG / 600LBS verified Built-in Access Control verified 9-Wire / 12V/24VDC

KES 9,280.00 KES 11,000.00

local_offer Save KES 1,720 today

1 Year Manufacturer Warranty

Variants

EL-600SA 280KG / 600LBS · Built-in Access Control · 9-Wire / 12V/24VDC EL-600 280KG / 600LBS · 12V/24VDC · Swing Door EL-600SD 280KG / 600LBS · LED & Lock Sensor · 12V/24VDC EL-600SZ 280KG / 600LBS · LED, Sensor & Buzzer · 12V/24VDC EL-600ST 280KG / 600LBS · LED, Sensor & Time Delay · 12V/24VDC

Product Overview

The S4A EL-600SA is a standalone locking solution. It combines a 280KG (600LBS) electromagnetic lock with a built-in access control board. Connect the 9-wire terminal to enroll RFID cards, trigger dry contact relay signals (up to 3A), and manage status sounds via the integrated buzzer.

Technical Specifications

Parameter	Specification
Product Weight	2
Shipping Weight	2.2
Lock Type	single
Holding Force Kg	280
Holding Force Lbs	600
Holding Force Text	280KG (600LBS)
Lock Dimensions	250Lx48.5Wx25H(mm)
Armature Dimensions	180Lx38Wx11H(mm)
Operating Voltage	12V/24VDC
Current Draw	12V/500mA, 24V/250mA
Signal Output	Dry Contact (Max 3A)
Led Indicator	Yes
Door Status Sensor	Yes
Time Delay	None
Suitable For	Wooden door, Glass door, Metal door, Fireproof door
Bracket Compatibility	L-Bracket, U-Bracket, ZL-Bracket
Operating Temperature	-10°C ~ 55°C (14°F ~ 131°F)
Surface Temperature	≤ 20°C
Suitable Humidity	0~90% (non-condensing)
Shell Material	Anodized aluminum
Magnetic Material	Zinc
Armature Material	Zinc
